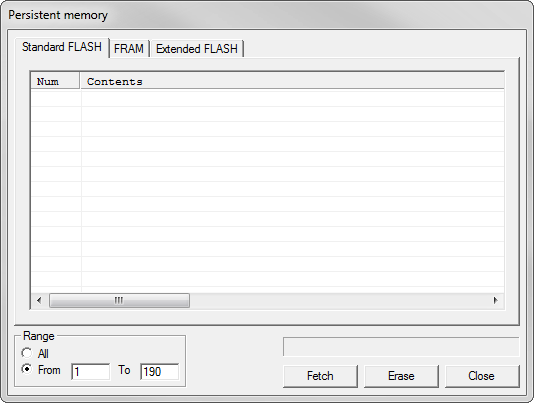

By using this dialog, it is possible to view and modify the contents of the persistent memory, FLASH, and FRAM in a connected RTCU device.
Press the "Fetch" button to fetch all or a range of persistent strings.
Press the "Erase" button to clear all or a range of persistent strings.
Use the controls in the "Range" to determine whether all persistent strings or just a range of persistent strings are Fetched or Erased.
By right-clicking inside the list, a menu will appear. By using this menu, it is possible to modify, delete, and create new entries in the persistent memory.
Note:
In standard FLASH, the range spans from 1 to 192.
In FRAM, the range spans from 1 to 20 or from 1 to 100 (on NX32 / NX32L devices)
The extended FLASH range depends on the device in use and may span up to 32600 entries.
Please refer to the Persistent Memory section for more information.
