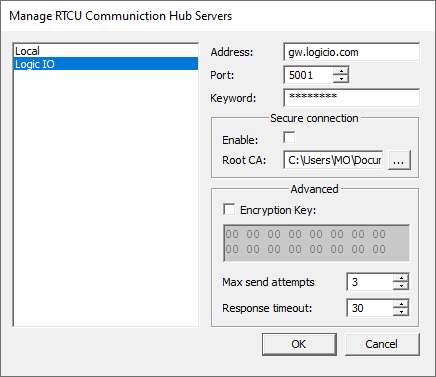

This dialog is used to manage the RCH servers.
Any changes made will only take effect when the OK button is pressed.
Right-click in the server list for the menu:
New
This creates a new server.
The new server will use the default settings.
Duplicate
This creates a new server.
The new server will use the settings from the selected server.
Delete
This deletes the selected server.
Rename
This changes the name of the selected server.
The settings group shows the parameters of the server:
Address
The IP address (or symbolic name) of the server.
Port
The port number to be used for communicating with the server.
Keyword
The key value to be used when communicating with the server.
Secure connection
Control whether a Standard connection or Secure connection is used to connect to the server.
Root CA
This is the path to the Root CA certificate necessary to establish a secure connection to the server.
Encryption key
The 128-bit long key is used for the encryption of data sent to and received from the server.
The encryption in the device can be enabled/disabled using the Encryption Key check box.
It is not possible to use the encryption option with secure connections.
Maximum send attempts
This is the maximum number of send request attempts before the send fails.
Response timeout
This is the time spent waiting for a response, and it is specified in seconds.
