SFL: Datalogger

The Datalogger functions implement an advanced and flexible facility for logging data records in a circular buffer schema.
The size of each record in the Datalogger can be determined by the application and there is functionality to navigate and traverse the logged data.

X32 and NX32 devices have support for a single Datalogger that is stored in Data Flash.

NX32L devices also have support for additional Dataloggers that are stored in the file-system or in memory, see the NX32L file-based Datalogger section below for details.

	•logInitialize	Initializes the Datalogger system.
	•logClear	Clears the contents of Datalogger.
	•logNext	Advances read position (forward in time).
	•logPrev	Advances read position (backward in time).
	•logFirst	Sets the read pointer to the oldest record.
	•logLast	Sets the read pointer to the newest record.
	•logNumOfRecords	Returns the number of records currently in the Datalogger.
	•logMaxNumOfRecords	Returns the maximum number of records the Datalogger is configured for.
	•logValuesPerRecord	Returns the number of values logged in each record.
	•logGetMaxRecordSize	Returns the maximum record size the Datalogger is configured for.
	•logIsInitialized	Check whether the Datalogger is initialized.
	•logWrite	Writes an entry into the Datalogger.
	•logWriteRaw	Writes raw data to an entry in the Datalogger.
	•logReWrite	Writes (updates) an entry at the current read position.
	•logReWriteTag	Writes (updates) the tagvalue for the entry at the current read position.
	•logRewriteRaw	Writes (updates) a raw entry at the current read position.
	•logRead	Reads data from Datalogger at the current read position.
	•logReadRaw	Reads raw data from an entry in the Datalogger at the current read position.
	•logDestroy	Destroys the setup and contents of the Datalogger.
	•logGotoLinsec	Searches and places a read pointer at specified timestamps.
	•logSeek	Moves the read pointer a number of elements forward/backward in time on a specific tag-id.
	•logCreate	Create a new Datalogger in the filesystem.
	•logCreateMem	Create a new Datalogger in memory.
	•logOpen	Open an existing Datalogger.
	•logClose	Close an open Datalogger.
	•logSaveToFile	Saves the Datalogger to a file.

NX32L file-based Datalogger

On NX32L devices it is possible to create additional Dataloggers in the filesystem and in memory using the functions logCreate and logCreateMem.

The file-based Dataloggers support larger entries that contain raw data and are stored in the internal file-system.

The Dataloggers can be copied to external storage either by closing the log with logClose and then copying the file with the file-system functions or by using logSaveToFile. The stored files can then be opened read-only at a later time.

The capacity of the Datalogger depends on what kind of device in use. For NX32 based devices the capacity is approx. 1024 KB.
For an X32 based the capacity depends on the the specific device in question and is in most cases 470 KB.

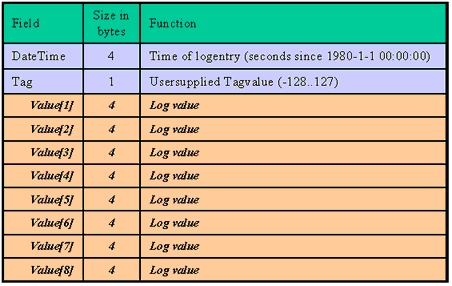

The number of bytes occupied by each entry depends on the number of values stored in each entry and is defined by using the function logInitialize(). The minimum number of bytes a log entry uses is 5 bytes, and the maximum is 37 bytes. When the logInitialize() function is called, one of the parameters is the number of entries that the Datalogger should be able to contain. When the logInitialize() function is called, it will calculate how much flash memory is needed to store the number of log entries based on the number of records needed, the number of log values stored in each record, and the amount of memory available in flash memory. If there is not enough memory for the requested Datalogger size, the logInitialize() function will return FALSE - otherwise it will return TRUE.

The Datalogger is implemented using flash memory technology, which means that there is a limited number of writes possible before Flash memory wear-out occurs.

Using the logWrite() functionblock usually does not impose a problem as the firmware automatically performs write balancing on the flash memory.

The following minimum number of logWrite() operations can be performed without any risk of flash wear-out:

Values per. entry	Total number of log entries	Number of logWrite() operations
1	111360	6620689
2	76800	9600000
3	57600	12800000
4	46080	16000000
5	38400	19200000
6	34560	21333333
7	30720	24000000
8	26880	27428571

Values per. entry	Total number of log entries	Number of logWrite() operations
1	51968	3089655
2	35840	4480000
3	26880	5973333
4	21504	7466666
5	17920	8960000
6	16128	9955555
7	14336	11200000
8	12544	12800000

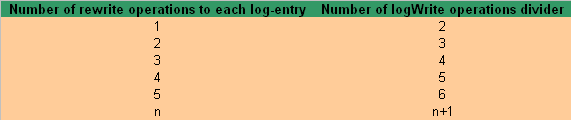

Caution must be taken when using logRewrite() and logRewriteTag() because for each rewrite operation, the number of logWrite operations will be divided by the number of rewrites done on each log entry.

As an example, this means that with 8 log values per log entry, there will be approx. 27.4 million (NX32) logWrite operations with no rewrite operations. With 1 rewrite operation, this number will be 13.7 million, and with 2 rewrite operations, it will be 6.85 million etc.
