This dialog can be used to query system statistics of the connected RTCU device.
The device statistics contains lifetime information reset only during the production of the device, and it cannot be reset.

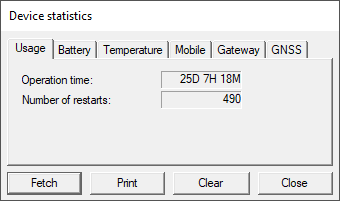

Operation time
This is the total amount of time that the RTCU device has been operating.
Number of restarts
The number of times the device has rebooted.

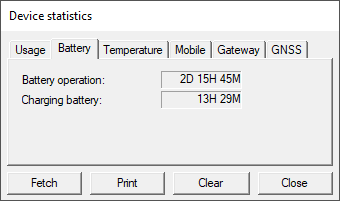

Battery operation
This is the total time of running from the backup battery instead of from external power.
Charging battery
This is the total time the backup battery has been charged.

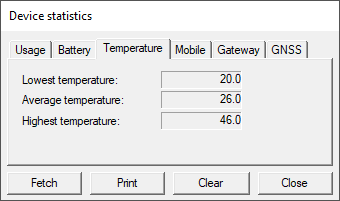

Lowest temperature
This is the lowest temperature measured in the RTCU device.
Average temperature
This is the average temperature measured in the RTCU device.
Highest temperature
This is the highest temperature measured in the RTCU device.

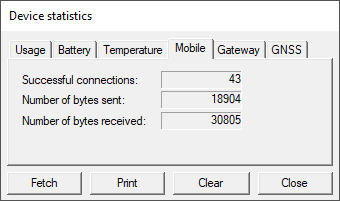

Successful connections
This is the number of times the RTCU device successfully connected to a mobile network.
Number of bytes sent
This is the number of bytes sent through the mobile network connection.
Number of bytes received
This is the number of bytes received from the mobile network connection.

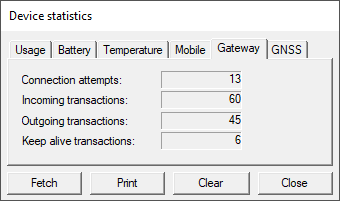

Connection attempts
This is the number of times the RTCU device has tried to connect to the RTCU Communication Hub.
Incoming transactions
This is the number of incoming transactions.
Incoming transactions are generated when the RTCU device receives data from the RTCU Communication Hub.
Outgoing transactions
This is the number of outgoing transactions.
Outgoing transaction are generated when the RTCU device sends data to the RTCU Communication Hub.
Keep alive transactions
This is the number of keep alive transactions the RTCU device has sent through the RTCU Communication Hub.

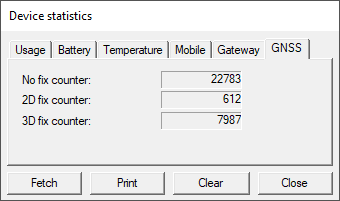

No fix counter
This is the number of times the GNSS module has reported no fix.
2D fix counter
This is the number of times the GNSS module has reported a 2D fix.
(GPS mode = 2)
3D fix counter
This is the number of times the GNSS module has reported a 3D fix (mode = 3 or 4).
