Information: System

Top  Previous  Next

This dialog can be used to query various system information parameter of the connected RTCU device.

The information available includes serial-number, device-type, peripherals available such as Cellular, GNSS, WLAN, CAN, Ethernet, number of I/O's etc.



It is possible to print the system information with the "Print" button and equally it can be saved to a file using the "Save" button.



The system information utilizes the following symbols with the listed semantics:

system_info_icon_set

- The item is present.

system_info_icon_opt

- The item is optional,

system_info_icon_na

- The item is not available.

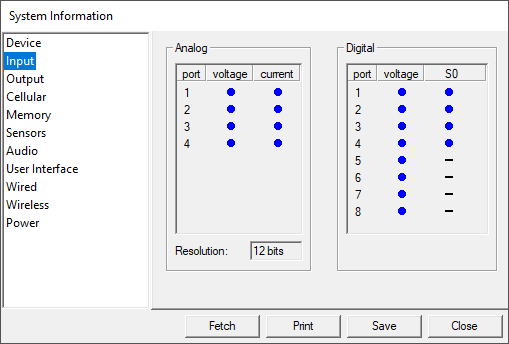

system_info_device system_info_input

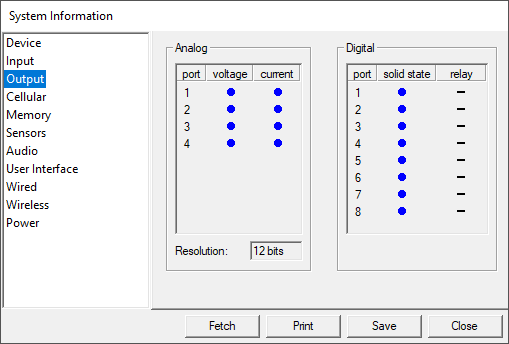

system_info_output system_info_cellular

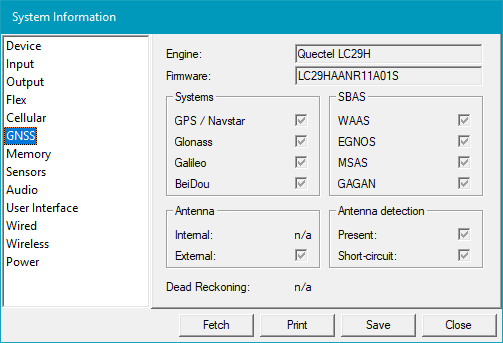

system_info_gnss system_info_memory

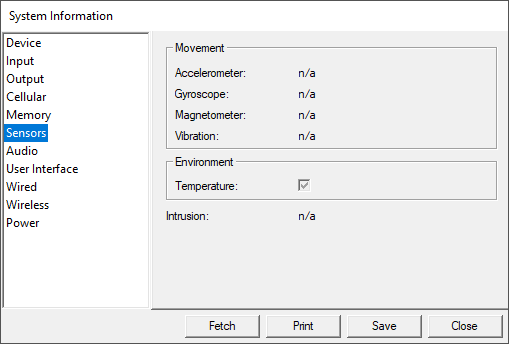

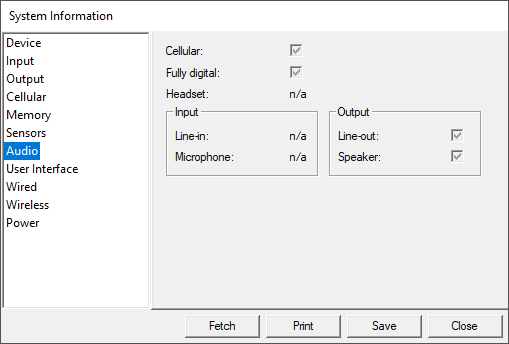

system_info_sensors system_info_audio

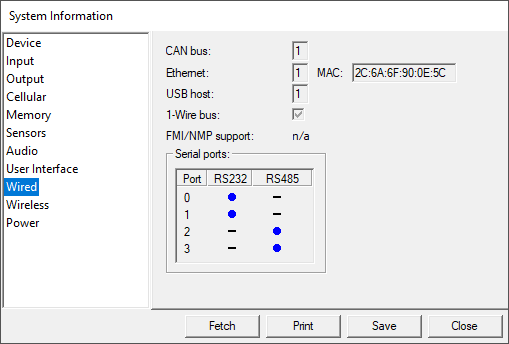

system_info_interface system_info_wired

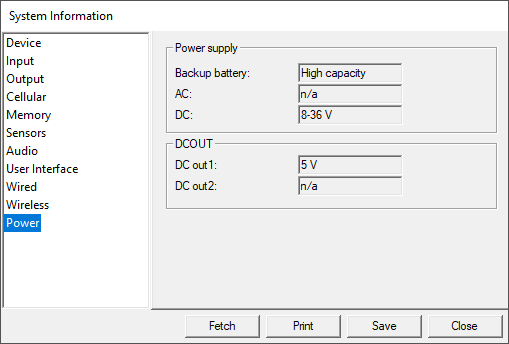

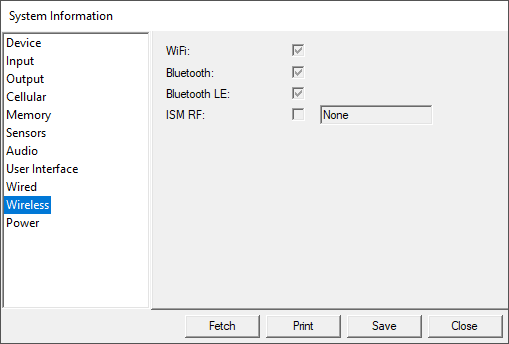

system_info_wireless system_info_power



When the system information is requested for a device supporting additional options(see Request options), a page with the options is included.

system_info_options
