Major news from Logic IO!

Back in May 2006, we made history by introducing the RTCU MX2 professional device. At that time, this was one of the most advanced automotive devices on the market, and it was well-received by our customers.
Over the years, several facelifts were made to meet the requirements of our customers - the latest with the RTCU MX2 turbo LTE in 2019.
The MX2 is undoubtedly our most successful device over the last 20+ years - not only in terms of volume but also as a technological milestone that impacted all devices after that.

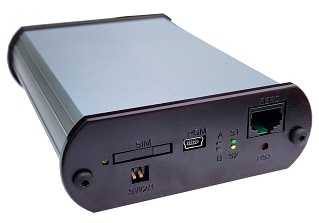

We are therefore extremely humble when we today announce the successor to the RTCU MX2 legacy - Welcome to the RTCU LX2 pro!

The RTCU LX2 pro is a powerful successor to the RTCU MX2 turbo with significant features, capacity, power and security improvements.  The RTCU LX2 pro is based on the latest LX hardware architecture, offering an unprecedented balance between price and performance.

The RTCU LX2 pro is designed to meet the ever-increasing challenges on security, in that it offers full TLS on all major protocols. It includes a hardened protected execution environment with dual-boot and automatic fallback and recovery.

The RTCU LX2 pro  device is designed from the ground up for professional M2M / IoT applications with strong onboard I/O capabilities and multiple communication interfaces such as LTE Cat.4, BLE, CAN bus, RS232, RS485, and 1-Wire.

The RTCU LX2 pro has an onboard Dual-band Multi-constellation GNSS positioning engine that supports the concurrent reception of all four global GNSS systems. The Dual-band receiver tracks not only L1 but also L5, significantly mitigating the multipath effect in an urban environment - ultimately improving positioning accuracy substantially.  The RTCU LX2 pro is also available in versions with Dead-Reckoning and RTK.

The RTCU LX2 pro improves on the RTCU MX2 turbo in several ways, most notably the LX architecture, higher performance and capacity, Bluetooth BLE, Enhanced security, and  Worldwide coverage. The RTCU LX2 pro has the same physical size and housing as the RTCU MX2 turbo and offers almost perfect hardware and software backward compatibility.

Technical Highlights:


  •  Based on the RTCU M2M Platform.
  •  NX32L (NX32 for Linux) execution architecture.
    •  RTCU IDE development tool.
    •  Operates under a full and highly optimized Linux variant.
    •  Open and extendable with the RTCU Platform SDK (under development).

LX hardware Core:

  •  Cortex-A7 32-bit ARM processor operating at up to 1 GHz.
  •  Cortex-M4 32-bit co-processor for advanced power-management.
  •  Hardware floating-point and DSP instructions.
  •  128 MByte RAM.
  •  Up-to 512 MByte NAND Flash (system).
  •  Real-time clock with dedicated backup battery.


  •  Internal flash drive with 4 GB total capacity.
  •  Persistent memory and circular datalogger.


  •  Embedded firewall.
  •  Port forward and NAT services.
  •  TLS/SSL support with full certificate management.
  •  TLS/SSL support for all major TCP protocols, such as SMTP, MQTT, and sockets.
  •  Hardware assisted encryption/authentication.

Wireless Communication:

  •  Worldwide LTE Cat. 4 Multi-Band Cellular Engine.
  •  Dual SIM-card readers (internal/external) with support for eSIM.
  •  Bluetooth Low Energy 5.3 (BLE).
  •  High-precision Dual-band L1/L5 Multi-Constellation GNSS positioning engine.
  •  Optional: Dead-Reckoning and RTK with sub-meter accuracy.

Wired Communication:

  •  2 x  CAN 2.0B controller with hardware filtering / multi-speed support.
  •  1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
  •  1 x RS232 channel with full control signals.
  •  1 x RS232 channel.
  •  1 x RS485 channel.

I/O Interfaces:

  •  6 x digital inputs.
  •  4 x high-power solid-state open-drain digital outputs.
  •  2 x analog inputs with flexible range of 0..10VDC or 0..30VDC (12 bits).
  •  Expandable I/O with standard Modbus modules.

User Interaction:

  •  4 x bi-colour LED.
  •  2 x DIP-switches.
  •  Reset/recovery switch.
  •  High-speed Mini-USB service-port connector.


  •  3-axis Accelerometer.
  •  3-axis Gyroscope.
  •  Temperature sensor.


  •  Fully digitized audio system.
  •  Transfer, store, and play audio.
  •  Digitized cellular audio.
  •  DTMF support for Interactive Voice Response applications.

Power and Battery:

  •  Operating voltage from 8 to 36 VDC.
  •  On-board 2 Ah Li-Ion battery with intelligent charging.


  •  Custom designed aluminium profile.
  •  Optional: Mounting bracket.

Regulatory Approvals:

  •  Automotive EMC Directive, UN ECE R10 (E1).
  •  Radio Equipment Directive, RED 2014/53/EU.
  •  RoHS Directive, 2011/65/EU.

The full specifications, datasheets, and technical manuals for the RTCU LX2 pro can be found here, and for current users of the RTCU MX2 series, we recommend taking a look at the comparison sheet here.

The RTCU LX2 pro and a Starter Kit are available to order NOW.


New software releases!

To celebrate and support the new RTCU LX2 pro we also have the pleasure introducing the following new software releases:

Please download from www.logicio.com
