The RTCU product line currently includes 13 different hardware variants covering a broad range of I/O configurations, environments and applications.
All RTCU products are based on the RTCU M2M Platform and are therefore fully programmability using the RTCU IDE Development Environment.

The wide range of RTCU products are compared in the RTCU Product Comparison Feature Chart (February 2017).

Products and services are delivered according to the conditions in the User License Agreement and Limited Warranty.


All RTCU products are produced according to the European Union's (EU) Restriction on use of Hazardous Substances (RoHS) Directive 2002/95/EC.
The formal declaration can be found here.

RTCU M2M Platform Devices

RTCU AX9 turbo

The RTCU AX9 turbo adds a new chapter to the highly successful era of the RTCU AX9i series offering a wide range of new features and performance improvement - not only due to the powerful NX32 Execution Architecture, but also with the addition of on-board Ethernet and a 3G/HSDPA GSM engine.
The RTCU AX9 turbo is designed according to the highest technical standards for today's professional M2M telemetry applications.

The RTCU AX9 turbo is offering a long range of new features and performance improvements, while still resting on the proven track-record and confidence of the
RTCU AX9i series.

The RTCU AX9 turbo uses the next generation NX32 execution model and is fully backward compatible with the X32 execution model. Existing software will therefore be able to operate without any changes or costly re-testing. Mechanically and electrically the RTCU AX9 turbo is back-ward compatible with the RTCU AX9i pro and constitutes therefore a direct plug-in replacement.

For the most demanding applications the RTCU AX9 turbo operates with GSM 3G/HSDPA and also offers on-board Ethernet for the most flexible connectivity options.

The RTCU AX9 turbo rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IoT applications.


RTCU AX9 turbo technical highlights:

  •  Based on the RTCU M2M Platform.
  •  NX32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.
        o Huge standard API with more than 800+ functions.
        o Comprehensive protocol support, including:
            TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS, Garmin FMI.
        o Fully backward compatibility with existing X32 applications.
  •  High-speed 3G/HSDPA GSM engine. Backward compatible with 2G/2.5G.
  •  On-board Ethernet interface.
  •  Medium range ISM band RF transceiver with on-board antenna.
  •  Internal antenna and external GSM antenna connector. Application selectable.
  •  Internal SIM-card reader.
  •  Digitized audio can be played over GSM.
  •  DTMF support for implementation of Interactive Voice Response applications.
  •  Enhanced memory sub-system with fast program execution.
  •  Huge data-flash/logger memory with a capacity of 8.5 MB.
  •  Internal 8 MB FAT32 flash drive.
  •  Standard FAT32 SD-CARD reader with up to 32 GB capacity.
  •  2 x RS232 channels and 2 x RS485 channels.
  •  4 x analog inputs with 0..10 volt / 0..20 mA with 12 bit precision.
  •  4 x analog outputs with 0..10 volt / 0..20 mA.
  •  5 x digital inputs and 4 x high-power relays.
  •  Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
  •  Expandable I/O with standard MODBUS modules.
  •  1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
  •  Wide AC/DC power operating range from 100..260VAC / 8..36 VDC.
  •  External DC power can be selectable enabled/disabled by the application.
  •  12/24 Volt DC-out capability for powering external equipment.
  •  On-board high-capacity Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  High-speed mini-USB programming connector.
  •  Intrusion detection.
  •  Housed in a ruggedized plastic encapsulation with cable glands.
  •  IP65 water protected for outdoor usage.
  •  Accessories: MODBUS modules, Bluetooth and MDT-200.
  •  Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.

A complete range of MODBUS I/O modules are offered by Logic IO for easy connection to the RTCU AX9 turbo product. Please see the MODBUS I/O Modules section.

For further information please refer to the data sheet and the technical manual below.

Product data sheet V1.02 (pdf)
Technical manual V1.03 (pdf)
Declaration of Conformity (pdf)


-- Ordering codes:
SKU RT-AX9T            RTCU AX9 turbo (GSM:900/1800 Mhz, UMTS:900/2100 Mhz)
SKU RT-AX9T-A          RTCU AX9 turbo (GSM:850/900/1800/1900 Mhz, UMTS:850/1900 Mhz)


RTCU AX9 encore

The RTCU AX9 encore is a cost-efficient device based on the full powered RTCU AX9 turbo offering a wide range of features and performance critical features such as full support for the NX32 Execution Architecture.
The
RTCU AX9 encore is designed according to the highest technical standards for today's professional M2M telemetry applications.

The RTCU AX9 encore uses the next generation NX32 execution model and is fully backward compatible with the X32 execution model. Existing software will therefore be able to operate without any changes or costly re-testing. Mechanically and electrically the RTCU AX9 encore is back-ward compatible with the RTCU AX9i eco and constitutes therefore a direct plug-in replacement.

For world-wide usage in any network environment the RTCU AX9 encore offers a full quad-band GSM engine with a switchable dual antenna design supporting both an on-board as well as an external GSM antenna.

The RTCU AX9 encore rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IoT applications.


RTCU AX9 encore technical highlights:

  •  Based on the RTCU M2M Platform.
  •  NX32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.
        o Huge standard API with more than 800+ functions.
        o Comprehensive protocol support, including:
            TCP-UDP/IP, FTP, SMTP, RACP, MQTT and MODBUS.
        o Fully backward compatibility with existing X32 applications.
  •  World-wide Quad-band GSM engine
  •  Internal antenna and external GSM antenna connector. Application selectable.
  •  Internal SIM-card reader.
  •  Digitized audio can be played over GSM.
  •  DTMF support for implementation of Interactive Voice Response applications.
  •  Enhanced memory sub-system with fast program execution.
  •  Huge data-flash/logger memory with a capacity of 4.5 MB.
  •  Internal 4 MB FAT32 flash drive.
  •  Standard FAT32 SD-CARD reader with up to 32 GB capacity.
  •  RS232 channel with optional shared RS485 channel.
  •  2 x analog inputs with 0..10 volt / 0..20 mA with 12 bit precision.
  •  5 x digital inputs and 4 x high-power relays.
  •  Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
  •  Expandable I/O with standard MODBUS modules.
  •  1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
  •  Wide AC/DC power operating range from 100..260VAC / 8..36 VDC.
  •  External DC power can be selectable enabled/disabled by the application.
  •  24 Volt DC-out capability for powering external equipment.
  •  On-board Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  High-speed mini-USB programming connector.
  •  Housed in a ruggedized plastic encapsulation with cable glands.
  •  IP65 protected for outdoor usage.
  •   Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.

A complete range of MODBUS I/O modules are offered by Logic IO for easy connection to the RTCU AX9 encore product. Please see the MODBUS I/O Modules section.

For further information please refer to the data sheet and the technical manual below.

Product data sheet V1.02 (pdf)
Technical manual V1.01 (pdf)
Declaration of Conformity (pdf)


-- Ordering codes:
SKU RT-AX9E            RTCU AX9 encore


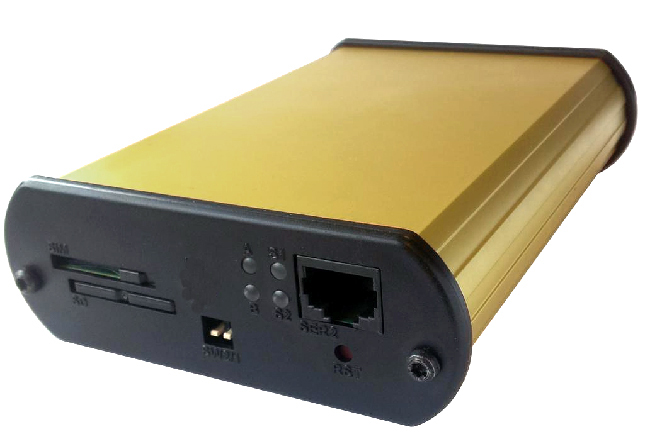

RTCU MX2 turbo

The RTCU MX2 turbo is one of the most advanced RTCU devices available today.
It has been designed for a broad variety of advanced telemetry / telematics applications and is made according to the highest technical standards for professional automotive and industrial use. This is the first device to use the new NX32 Execution Architecture,
that includes Intellisync Project Drive synchronization.



The RTCU MX2 turbo is offering a long range of new features and performance improvements while still resting on the proven track-record and confidence of the former RTCU MX2i series.

The RTCU MX2 turbo uses the next generation NX32 execution model and is fully backward compatible with the X32 execution model of the former RTCU MX2i series. Existing software will therefore be able to operate without any changes or costly re-testing. Mechanically and electrically the RTCU MX2 turbo is fully back-ward compatible with the RTCU MX2 pro/pro+ and constitutes therefore a direct plug-in replacement.

The RTCU MX2 turbo is designed for a broad variety of advanced telemetry / telematics applications and has been designed according to the highest technical standards for professional automotive and industrial use. The product has all necessary regulatory approvals – including 2004/104/EC / UN ECE R10 – edition 3 and CE mark.

For demanding applications the RTCU MX2 turbo perates with GSM 3G/HSDPA and is also available in a version with World-wide Quad-band GSM.

The positioning is enhanced with a state-of-the-art GNSS receiver with GPS, GLONASS and QZSS support.


RTCU MX2 turbo technical highlights:

  •  Based on the RTCU M2M Platform.
  •  NX32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.

    o Huge standard API with more than 800+ functions.

    o Comprehensive protocol support, including:

    TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS, FMS/J1939, NMP/Garmin FMI.
        o Fully backward compatibility with existing X32 applications.
  •  3G version:  High-speed 3G/HSDPA GSM engine. Backward compatible with 2G/2.5G.
  •  2G version:  World-wide Quad-band GSM engine.
  •  Internal and external SIM-card reader selectable from the application.
  •  Digitized audio can be played over GSM or to an external device.
  •  DTMF support for implementation of Interactive Voice Response applications.
  •  State-of-the art Multi-GNSS positioning engine with GPS,GLONASS,QZSS.
  •  High-performance 3-axis accelerometer with 16g scale.
  •  Enhanced memory sub-system with fast program execution.
  •  Extended flash memory with a capacity of 7 MB (XF7).
  •  Internal 8 MB FAT32 flash drive.
  •  Standard FAT32 SD-CARD reader with up to 32 GB capacity.
  •  2 x RS232 channels and 1 x RS485 channel.
  •  2 x analog inputs with 0..10 volt / 12 bit precision.
  •  5 x digital inputs and 4 x high-power solid-state digital outputs.
  •  MODBUS for I/O extension or SCADA integration.
  •  Full CAN 2.0B controller with hardware filtering and multi-speed support.
  •  1-Wire bus for accessories such as ID-Button reader, Temperature sensor, etc.
  •  Wide operating range from 8..36 VDC.
  •  External power can be selectable enabled/disabled by the application.
  •  On-board high-capacity Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  Hands-free interface with microphone and Class-D audio speaker amplifier.
  •  High-speed USB programming/service cable.
  •  Fully supports the Professional Navigation and Messaging device PNM-220.
  •  Supports the Garmin Fleet Management Interface.
  •  Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
  •  Accessories: Wi-Fi, Ethernet, Bluetooth, 2 MP camera and MDT-200 terminal.
  •  Exclusive and durable "GOLD" aluminium encapsulation.
  •  Optional Mounting Bracket Kit for easy "screw-on" installations
  •  Alternative front end-cap with protected SIM card reader.

For further information please refer to the data sheet and the technical manual below.


Product data sheet V2.01 (pdf)
Technical manual V2.03 (pdf)
Declaration of Conformity (pdf)


-- Ordering codes:
SKU RT-MX2T            RTCU MX2 turbo (GSM:900/1800 MHz, UMTS:900/2100 MHz)
SKU RT-MX2TU           RTCU MX2 turbo with Untethered Dead Reckoning.
SKU RT-MX2T-2G         RTCU MX2 turbo (GSM:850/900/1800/1900 MHz)
SKU RT-MX2T-A          RTCU MX2 turbo (GSM:850/900/1800/1900 MHz, UMTS:850/1900 MHz)


RTCU MX2 encore

The RTCU MX2 encore is cost-efficient device based on the full powered RTCU MX2 turbo. It has been designed for a broad variety of advanced telemetry / telematics applications and is made according to the highest technical standards for professional automotive and industrial use.


The RTCU MX2 encore is based on the top-of-the-line RTCU MX2 turbo with certain features carefully omitted for a perfect balance between price and functionality.

The RTCU MX2 encore uses the next generation NX32 execution model and is fully backward compatible with the X32 execution model of the former RTCU MX2i series. Existing software will therefore be able to operate without any changes or costly re-testing. Mechanically and electrically the RTCU MX2 encore is back-ward compatible with the RTCU MX2i eco+ and the RTCU MX2i pro and constitutes therefore in most cases a direct plug-in replacement.

The RTCU MX2 encore includes many sophisticated standard features and can be further upgraded as required with the following on-demand hardware features:

CAN 2.0B     CAN controller with hardware filtering.
RS485:
       RS485 channel with MODBUS and expandable I/O.
Internal SIM
:  Internal SIM card reader. Int/ext. selectable by application.

The 'Internal SIM card reader' option is FREE and just requires activation.

Options can be applied on-demand even remotely by the unit already installed in the field.

The RTCU MX2 encore is designed for a broad variety of advanced telemetry / telematics applications and has been designed according to the highest technical standards for professional automotive and industrial use. The product has all necessary regulatory approvals – including 2004/104/EC / UN ECE R10 – edition 3 and CE mark.


RTCU MX2 encore technical highlights:

  •  Based on the RTCU M2M Platform.
  •  NX32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.

    o Huge standard API with more than 800+ functions.

    o Comprehensive protocol support, including:

    TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS, FMS/J1939, NMP/Garmin FMI.
        o Fully backward compatibility with existing X32 applications.
  •  World-wide Quad-band GSM engine.
  •  Internal and external SIM-card reader selectable from the application.
  •  Digitized audio can be played over GSM or to an external device.
  •  DTMF support for implementation of Interactive Voice Response applications.
  •  State-of-the art Multi-GNSS positioning engine with GPS,GLONASS,QZSS.
  •  High-performance 3-axis accelerometer with 16g scale.
  •  Enhanced memory sub-system with fast program execution.
  •  Extended flash memory with a capacity of 3 MB .
  •  Internal 4 MB FAT32 flash drive.
  •  1 x RS232 channel.
  •  2 x analog inputs with 0..10 volt / 12 bit precision.
  •  5 x digital inputs and 4 high-power solid-state digital outputs.
  •  1-Wire bus for accessories such as ID-Button reader, Temperature sensor, etc.
  •  Powerful on-demand hardware options:
             Full CAN 2.0B
    controller with hardware filtering and multi-speed support.
             RS485 channel with MODBUS and expandable I/O.
             Internal SIM-card reader. Active reader selectable from the app.
    FREE!
  •  On-demand options can be applied anytime - even remotely after installation.
  •  Wide operating range from 8..36 VDC.
  •  External power can be selectable enabled/disabled by the application.
  •  On-board high-capacity Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  High-speed USB programming/service cable.
  •  Supports the Garmin Fleet Management Interface.
  •  Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
  •  Accessories: Wi-Fi, Ethernet, Bluetooth and  2 MP camera.
  •  Exclusive and durable aluminium encapsulation.
  •  Optional Mounting Bracket Kit for easy "screw-on" installations
  •  Alternative front end-cap with protected SIM card reader.

For further information please refer to the data sheet and the technical manual below.


Product data sheet V1.00 (pdf)
Technical manual V1.10 (pdf)
Declaration of Conformity (pdf)


-- Ordering codes:
SKU RT-MX2E            RTCU MX2 encore


RTCU CX1 warp mk2 series

The RTCU CX1 warp mk2 series offers world-wide UMTS/HSPA support and a state-of-the-art GNSS positioning engine.
Available in just two variants taking advantage of the powerful "
hardware on-demand" where options can be applied any time - even remotely after installation!


The RTCU CX1 warp mk2 series are compact, waterproof and ruggedized telematics tracking and control devices, based on the powerful X32-architecture. The series sports a long list of standard features and can be further upgraded when required with powerful on-demand hardware options.

The RTCU CX1 warp mk2 series are available in two versions:

  •  RTCU CX1 warp 3G

    With RS232/FMI and 1-wire, but no CAN bus.
  •  RTCU CX1 warp-c 3G

    With CAN bus, but no RS232/FMI or 1-wire.

Except for the differences listed above the two variants are identical.

The RTCU CX1 warp mk2 series is designed for a broad variety of advanced telemetry / telematics applications and has been manufactured according to the highest technical standards for professional automotive and industrial use.  The product has all necessary regulatory approvals – including 2004/104/EC / UN ECE R10 and CE mark.

The RTCU CX1 warp mk2 series include many sophisticated standard features and can be further upgraded as required with the following on-demand hardware features:

     I/O:         2 x digital inputs, 2 x digital outputs and 1 x analog input (total).

RF:          Medium range ISM band RF transceiver with on-board antenna.


COM:      RS232/FMI and 1-Wire bus (warp) or CAN (warp-c).

FLASH:    Micro-SD card reader and 3 MB extended flash. FREE!

The 'FLASH' option is FREE and just requires activation.

Options can be applied on-demand even remotely by the unit already installed in the field.


The
RTCU CX1 warp mk2 series  rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IoT applications.

RTCU CX1 warp mk2 series technical highlights:

  •  Based on the RTCU M2M Platform.
  •  X32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.

    o Huge standard API with more than 800+ functions.

    o Comprehensive protocol support, including:

    TCP-UDP/IP, FTP, SMTP, RACP, MQTT, FMS/J1939, Garmin FMI.
  •  World-wide Penta-band UMTS/HSPA engine.
  •  Internal SIM-card reader.
  •  State-of-the art Multi-GNSS positioning engine with GPS, GLONASS, QZSS.
  •  High-performance 3-axis accelerometer with 16g scale.
  •  Large data-flash/logger memory with a capacity of 4.5 MB.
  •  Internal 4 MB FAT32 flash drive.
  •  1 x digital inputs and 1 x high-power solid-state digital output (upgradeable).
  •  Wide operating range from 8..36 VDC.
  •  On-board Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  High-speed Mini-USB programming connector.
  •  Support the Garmin Fleet Management Interface.
  •  Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server
  •  Available in two powerful hardware versions:
              RTCU CX1 warp 3G
                        (RS232/1-wire)
              RTCU CX1 warp-c 3G                 (CAN)
  •  Ruggedized IP66 plastic encapsulation.
  •  Delivered with a 50 cm interface cable.
  •  Powerful on-demand hardware options:
          I/O
    :        2 x digital inputs, 2 x digital outputs and 1 x analog input (total).
          RF
    :          Medium range ISM band RF transceiver with on-board antenna.
          FLASH
    :   Micro SD card reader and 3 MB extended flash.
    FREE!
          COM
    :     RS232/FMI and 1-Wire bus (warp) or CAN (warp-c).
  •  On-demand options can be applied anytime — even remotely after installation
  •  1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.

....many other advanced features
Please read the Datasheet and Technical manual below

RTCU CX1 warp mk2 series data sheet V1.01 (pdf)
RTCU CX1 warp mk2 technical manual V1.01 (pdf)
Declaration of Conformity


-- Ordering codes:
SKU RT-CX1W3           RTCU CX1 warp 3G.
SKU RT-CX1W-A          RTCU CX1 warp 3G with standard antenna set.
SKU RT-CX1WC3          RTCU CX1 warp-c 3G.
SKU RT-CX1WC-A         RTCU CX1 warp-c 3G with standard antenna set.




RTCU DX4i pro mk2


The RTCU DX4i pro mk2 offers a world-wide communication solution with its Penta-band UMTS/HSPA engine combined with a large 4 MB internal flash drive, 4.5 MB of datalogger/persistent memory in addition to dual RS485 channels, high-precision analog inputs and finally USB as programming port. All based on the RTCU M2M Platform!

The RTCU DX4i pro mk2 has been designed from the ground up for professional wireless industrial applications with its strong on-board I/O capabilities and multiple communication interfaces such as: dual RS232, dual RS485, 1-Wire, CAN and USB.

Housed in a standard DIN-rail encapsulation, it is a perfect component for automation and control applications.

The on-board I/O system can be expanded almost indefinitely and completely transparently by adding external MODBUS compatible I/O modules. This unique I/O expansion capability, combined with the ability to operate as a MODBUS master and slave simultaneously, positions the RTCU DX4i pro mk2 as the perfect product for SCADA-like applications.

The RTCU DX4i pro mk2 is based on the X32 Execution Architecture offering high performance along with a large memory capacity for both program and data - meeting the requirements of today’s most demanding and sophisticated M2M/IoT applications.

The RTCU DX4i pro mk2 rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IoT applications.


RTCU DX4i pro mk2 technical highlights:

  •  Based on the RTCU M2M Platform.
  •  X32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.

    o Huge standard API with more than 800+ functions.

    o Comprehensive protocol support, including:

    TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS, FMS/J1939.
  •  World-wide Penta-band UMTS/HSPA engine (DX4i pro-3G)
  •  World-wide Quad-band GSM engine  (DX4i pro-2G).
  •  Standard mini-SIM card reader.
  •  Digitized audio can be played over GSM or to an external device (DX4i pro-2G).
  •  DTMF support for Interactive Voice Response applications (DX4i pro-2G).
  •  Graphical 144x32 pixels display with white-on-blue back-lit text/graphics.
  •  Keypad with 8 keys for sophisticated user interaction and control.
  •  Large data-flash/logger memory with a capacity of 4.5 MB.
  •  Internal 4 MB FAT32 flash drive.
  •  Standard FAT32 SD-CARD reader with up to 32 GB capacity.
  •  2 x RS232 channels and 2 x RS485 channels.
  •  4 x analog inputs with 0..10 volt / 0..20 mA with 12 bit precision.
  •  4 x analog outputs with 0..10 volt / 0..20 mA.
  •  8 x digital inputs and 8 x high-power solid-state digital outputs.
  •  Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
  •  Expandable I/O with standard MODBUS modules.
  •  Full CAN 2.0B controller with hardware filtering and multi-speed support.
  •  1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
  •  Wide operating range from 8..36 VDC.
  •  On-board high-capacity Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  High-speed Mini-USB programming connector.
  •  Housed in an industry standard M36 DIN compliant encapsulation.
  •  Two-part pluggable connectors for easy installation and maintenance.
  •  Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server
  •  Accessories: MODBUS modules, Wi-Fi, Ethernet, Bluetooth, GPS and 2 MP camera.


....
many other advanced features
Please read the datasheet and technical manual below

A complete range of MODBUS I/O modules are offered by Logic IO for easy connection to the RTCU DX4i pro mk2 product. Please see the MODBUS I/O Modules section.


Product data sheet V2.01 (pdf)
Technical manual V2.01 (pdf)
Declaration of Conformity

-- Ordering code:
SKU RT-DX4IPM3           RTCU DX4i pro-3G
SKU RT-DX4IPM2           RTCU DX4i pro-2G




RTCU DX4i warp

The RTCU DX4i warp is a new member in the powerful RTCU DX4 series offering a major boost in capacity and performance.  The product now hosts a large 4 MB internal flash drive, 4.5 MB of datalogger/persistent memory for the most demanding M2M applications. The product uses  the powerful "hardware on-demand" concept where actual hardware features can be added whenever needed.
The RTCU DX4i warp is 100% backward compatible with the former RTCU DX4 flex.


The RTCU DX4i warp has been designed from the ground up for professional wireless industrial applications with its strong on-board I/O capabilities and powerful communication interfaces.

Housed in a standard DIN-rail encapsulation it is a perfect component for automation and control applications.

The on-board I/O system can be expanded almost indefinitely and completely transparently by adding external MODBUS compatible I/O modules. This unique I/O expansion capability, combined with the ability to operate as a MODBUS master and slave simultaneously, positions the RTCU DX4i warp as the perfect product for SCADA-like applications.

The RTCU DX4i warp is based on the X32 Execution Architecture offering high performance along with a large memory capacity for both program and data - meeting the requirements of today’s most demanding and sophisticated M2M/IoT applications.

The RTCU DX4i warp include many sophisticated standard features and can be further upgraded as required with the following on-demand hardware features:

DIO option:       8 x digital inputs, 8 x digital outputs (total).
AIO option:
4 x analog input (total) and 4 x analog output(total).
COM option
:     RS485/MODBUS and 1-Wire interface. FREE!

The 'COM' option is FREE and just requires activation.

Options can be applied on-demand even remotely by the unit already installed in the field.

The RTCU DX4i warp rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IoT applications.


RTCU DX4i warp
technical highlights:

  •  Based on the RTCU M2M Platform.
  •  X32 execution architecture:

    o RTCU IDE development tool with a full featured device emulator.

    o Huge standard API with more than 800+ functions.

    o Comprehensive protocol support, including:

    TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS.
  •  World-wide Quad-band GSM engine.
  •  Internal SIM-card reader.
  •  Large data-flash/logger memory with a capacity of 4.5 MB.
  •  Internal 4 MB FAT32 flash drive.
  •  1 x RS232 channel / programming port.
  •  5 x digital inputs and 3 x high-power solid-state digital outputs.
  •  2 x analog inputs with 0..10 volt / 0..20 mA.
  •  2 x analog outputs with 0..10 volt / 0..20 mA.
  •  Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
  •  Powerful on-demand hardware options:
           Digital I/O option:             8 x digital inputs and 8 x digital outputs (total).
           Analog I/O option:            4 x analog inputs and 4 x analog outputs (total).
           Communication option: RS485/MODBUS and 1-Wire support.
     FREE!
  •  Expandable I/O with standard MODBUS modules.
  •  1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
  •  Wide operating range from 8..36 VDC.
  •  On-board Li-Ion battery.
  •  Advanced power-management with wake-up on a wide range of events.
  •  High-speed USB programming/service cable.
  •  Housed in an industry standard M36 DIN compliant encapsulation.
  •  Two-part pluggable connectors for easy installation and maintenance.
  •  Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server


Please read the Datasheet and Technical manual below

A complete range of MODBUS I/O modules are offered by Logic IO for easy connection to the RTCU DX4i warp. Please see the MODBUS I/O Modules section.

Product data sheet V1.00 (pdf)
Technical manual V1.02 (pdf)
Declaration of Conformity


-- Ordering codes:
SKU RT-DX4IW           RTCU DX4i warp
SKU RT-DX4IWP          RTCU DX4i warp with all mating plugs.
SKU RT-O-DX4PLUGSET    Complete mating plug set: 2 x 5 pins / 6 x 6 pins


RTCU SX1 series

The RTCU SX1 is a stand-alone tracking, monitoring and data collection device designed for applications, which require extremely long operating time without access to external power. Based on the X32 generation of RTCU products the SX1 series introduces zero-power saving mode reducing the power consumption in the deepest hibernation mode to virtually nothing. This state-of-the-art technology allows the unit to operate as long as 10 years with no external power!

The RTCU SX1 is a compact tracking, monitoring and data collection device especially designed for stand-alone as well as extremely long operating time in harsh environments. The product is fully integrated in an IP66 ingress-protected ruggedized plastic box, that can withstand years of operation. The zero-power saving mode allows the unit to enter power saving mode - waking up on the on-board 3D accelerometer, digital input change or after a certain time period – and to stay in this mode virtually forever only limited by the battery technology in use!

The RTCU SX1 series is available in versions for standard GSM (RTCU SX1 pro) and railroad based GSM-R (RTCU SX1 pro-r) for advanced and reliable asset tracking in a wide range of application segments. The RTCU SX1 series has support for medium range wireless communication using the ISM 868 MHz frequency band. This feature allows implementation of wireless sensors, RF-tracking and simple remote key fob applications.

For usage in various application scenarios there is no less than four on-board battery configurations available ranging up to a massive 58 Ah non-rechargeable pack.
The RTCU SX1 series has on-board antennas for GSM, GPS and ISM RF with an optional feature to use external antennas for longer range or for specialized applications, where the unit is installed in metal enclosures etc. Switching back and forth from internal to external GSM/ISM antennas can even be controlled programmatically by the application.

In addition to the powerful features allowing long-term autonomous operation the RTCU SX1 series also offers the possibility to operate from external power and has digital and analog I/O as well as 1-wire and an RS232 port available for the most demanding applications. For flexible external interfacing the three PG7 blinds can be substituted with PG7 glands for IP66 protected cable entry.

For RTCU SX1 series has many other sophisticated features such as: Micro SD-CARD with up to 32 GB capacity and a 512 Kbyte internal flash drive with a FAT32 compatible file-system for easy sharing of files locally and remotely with a PC/server.


The
RTCU SX1 series feature-list includes:

  •  X32 generation platform sharing common features and code compatibility.
  •  Huge memory capacity with X32 Enhanced Memory support.
  •  Advanced zero-power saving mode with virtually no power consumption.
  •  Wake-up from zero-power: accelerometer, digital input, time and external power.
  •  Integrated battery power consumption measurement circuit.
  •  High performance 16g 3-axis accelerometer / movement sensor.
  •  SX1 pro:    Quad Band GSM support (850/900/1800/1900 MHz).
  •  SX1 pro-r: Triple Band GSM-R (900/1800/1900 MHz),
  •  GPRS Class 10 with full RTCU Gateway 2 support
  •  Supports GSM features such as SMS/PDU/CSD/GPRS.
  •  Full support for FTP and SMTP (email with attachment).
  •  Support for GSM SIM Chip.
  •  SuperGPS chipset with world-class performance and 2D/3D fix wake-up capability.
  •  Internal or external GSM quad-band antenna / GPS antenna.
  •  Medium range ISM RF Transceiver (868 MHz) with internal or external antenna.
  •  Application can switch between internal/external GSM / RF antennas.
  •  Support various for RF add-on modules.
  •  Externally / internally visible system LED and user LED. Internal DIP-switch.
  •  Several power-configurations supported:
      o 58 Ah (nominal) non-rechargeable battery. Height: 56 mm.
      o 24 Ah (nominal) non-rechargeable battery. Height: 43 mm.
      o 10 Ah (nominal) rechargeable battery. Height: 43 mm.
      o   2 Ah (nominal) rechargeable battery. Height: 43 mm.
  •  On-board temperature sensor.
  •  Dedicated high-speed USB programming port.
  •  Standard RS232 Serial port.
  •  Micro SD-CARD reader with FAT compatible file-system and up to 32 GB capacity.
  •  Internal 512 KB Flash-Drive with full FAT support.
  •  2 digital inputs, 2 digital outputs and 2 analog inputs.

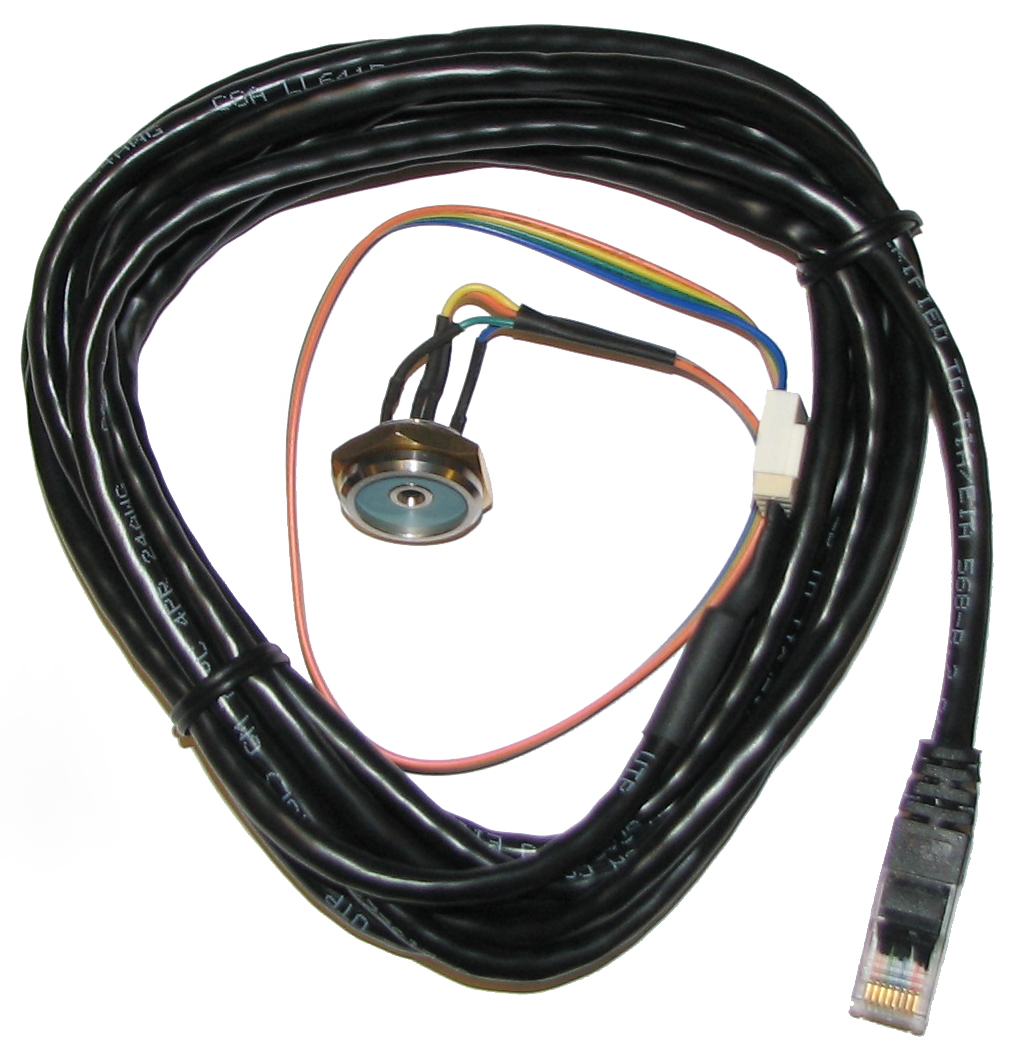

  •  1-Wire bus for connecting devices such as ID-Button reader and
     Temperature sensors.
  •  Ruggedized IP66 classified plastic encapsulation with mounting flange.

....many other advanced features
Please read the Datasheet and Technical manual below

Product data sheet V1.12 (pdf)
RTCU SX1 pro / pro-r technical manual V1.21 (pdf)
Declaration of Conformity


-- Ordering codes:
RT-SX1P            RTCU SX1 pro
RT-SX1PR           RTCU SX1 pro-r

Options:
RT-O-SX1-B2        2 Ah rechargeable battery pack.
RT-O-SX1-B10       10 Ah rechargeable battery pack.
RT-O-SX1-B24N      24 Ah non-rechargeable battery pack.
RT-O-SX1-B58N      58 Ah non-rechargeable battery pack.

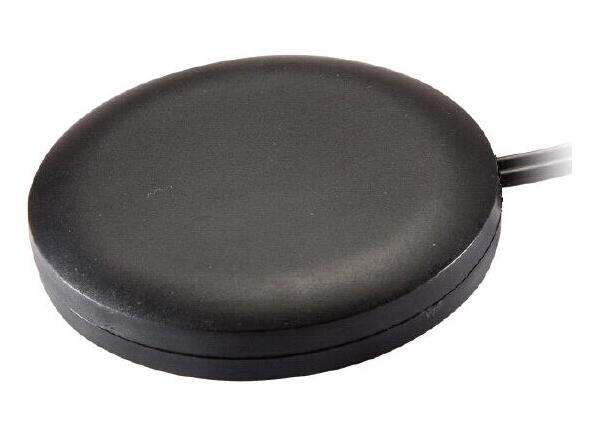

RT-O-SX1-ANTGSM    External SMA connectors for GSM.
RT-O-SX1-ANTGPS    External SMA connectors for GPS.

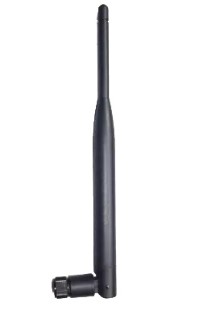

RT-O-SX1-ANTRF     External SMA connectors for RF.
RT-O-SX1-PG        PG7 cable gland entries.




Starter kits / AVL Tester

RTCU MX2 turbo Starter kit


The RTCU MX2 turbo Starter kit contains all the necessary parts to kick-start the development of the most advanced M2M applications.


The RTCU MX2 turbo Starter kit, contains:

The RTCU MX2 turbo Starter kit comes in a piano-glossy President box - ready to use!

Order here!


Product data sheet V1.01 (pdf)

-- Ordering codes:
SKU RT-MX2TKIT1  MX2 turbo kit  (GSM:900/1800 Mhz, UMTS:900/2100 Mhz)








Navigation and Messaging Platform Starter kit

The Navigation and Messaging Platform Starter kit includes everything necessary to get started developing the most advanced and flexible fleet management applications.
The kit contains:

  •  RTCU MX2 turbo Starter kit (see above).

  •  PNM-220 with full Sygic Europe maps.

Please see more about the Fleet Management / Navigation interface here.

Order here!

-- Ordering code: RT-NMPKIT1





RTCU-MX2 turbo FMI Starter kit

The RTCU-MX2 turbo FMI Starter kit includes everything listed in the RTCU MX2 turbo starter kit, but additionally includes:

  •  Garmin Dezl 770 (Europe) Navigation device
  •  Interface cable for connecting the RTCU MX2i turbo with the Garmin device
  •  Interface cable for connecting the Garmin device to the PC (RTCU Emulator)

Please see more about the Garmin Fleet Management / Navigation interface here.

For a more advanced and flexible solution, also see the Navigation and Messaging Platform here.

This complete package includes everything to start-up the development of advanced Fleet Management, Messaging and Navigation applications!

Order here!

-- Ordering code: RT-MX2IPFMIKIT









RTCU-AX9 turbo Starter kit

The RTCU AX9 turbo Starter kit includes everything required to get started with the evaluation and test of the RTCU AX9 series.

The Starter kit includes:

Only a SIM-card and power is required to start working with the starter kit!

Order here!

-- Ordering code: RT-AX9TKIT

RTCU-DX4i pro GOLD Starter kit

The RTCU-DX4i pro GOLD Starter kit includes everything required to get started with the evaluation and test of the RTCU DX4i series.

The Starter kit includes:

Only a SIM-card and a Power-supply is required to start working with the starter kit!

Order here!

-- Ordering code: RT-DX4IPGOLD




Software and Middleware

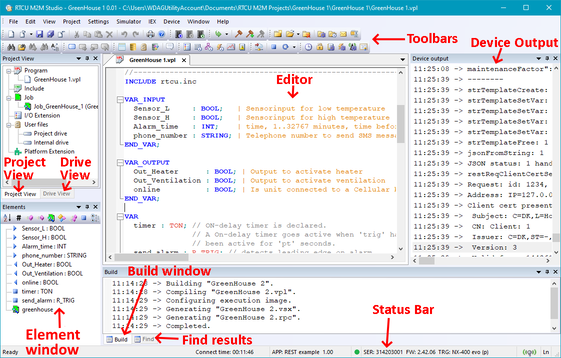

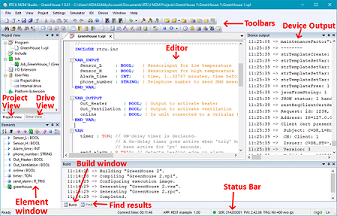

RTCU IDE Programming Environment

The RTCU Integrated Development Environment is the primary tool for developing and maintaining todays professional M2M applications.

Within the RTCU IDE all aspects of development are covered, such as source code editing, help, code generation, device emulation, device communication and pilot device deployment.

The RTCU IDE Programming Environment can be downloaded FREE here.

RTCU IDE - User's manual (pdf)


RTCU Emulator

The RTCU Emulator is a Windows-based emulation environment for all current RTCU devices. Using the RTCU Emulator gives the developer a very powerful tool allowing test and debugging of applications in the convenience of a Windows environment - without any need for a physical RTCU device.

Please download here.

RTCU Emulator - datasheet (pdf)
RTCU Emulator - User's manual (pdf)


RTCU Gateway 2

The RTCU Gateway 2 is a middleware-solution that allows easy communication, access and maintenance of remote units connected using TCP/IP communication technology.
RTCU Gateway 2 is a powerful and advanced solution to support the most demanding application scenarios. The communication core is optimized for multiple gateway instances operating in high-end 64 bit server environments.
The product works in any network architecture, without any need for expensive fixed IP-address or tunnelling solutions provided by the GSM network operators.

The RTCU Gateway 2 constitutes a back-bone in the communication between RTCU units and back-end/client applications. The product insures reliable and economical communication in any environment and application.
The RTCU Gateway 2 also supports the advanced free RTCU Deployment Server.


Some of the features:

  •  Advanced server architecture supports thousands of clients and massive traffic.
  •  Runs as a Windows Service with remote management capability.
  •  Available in a 32 bit and a high-performance 64 bit version.
  •  Support for up to 32 separately configurable and isolated gateway instances.
  •  Remote access via the included Monitor tool client.
  •  Full password protection for remote access.
  •  Up to 10 client keys supported, for more flexible password management.
  •  Disconnect timeout for inactive clients.
  •  Advanced filtering feature allows monitoring/logging on specific client
     and/or logging level.
  •  Encrypted traffic for safer communication.
  •  Time service for centralized client time management (local/UTC).
  •  Up to 10 monitor tool clients can be simultaneously connected.
  •  Plug-in architecture for extending functionality and integration into back-bone
     applications.
  •  Plug-in developers kit available for free.
  •  Free for use up to 25 clients.
  •  License must be purchased for additional clients.


For more information, please also read the following product documentation:
RTCU Gateway 2 Control Panel User's Manual, and
RTCU Gateway 2 Monitor Tool User's Manual.


-- Ordering code: RT-GGWPRO-<n>, Download evaluation version (25 clients)


RTCU Deployment Server


The RTCU Deployment Server (RDS) offers sophisticated features for maintaining application/firmware etc. in a large scale installation of RTCU devices remotely connected to the RTCU Gateway 2.

The RTCU Deployment Server can be configured by the user to insure that the specified units is operating with the correct firmware, application or a generic file. The RTCU Deployment Server will automatically insure that the units are upgraded as requested and this task will even take place during FULL operation of the unit. Any interruption in an the upgrade attempt will be automatically handled and resumed to avoid any waste of expensive bandwidth.

Some of the features:

  •  Uses the RTCU Gateway 2 to establish a connection to remote units.
  •  Runs as a Windows Service for automatic start-up in server installations.
  •  Available in a 32 bit and a high-performance 64 bit version.
  •  Remote maintenance, diagnostic and logging facilities.
  •  Upgrades firmware and application automatically according to user-configuration.
  •  Firmware and application can be upgraded during full operation of the unit.
     This unique feature minimizes downtime and the impact on the user.
  •  Failed upgrade attempts will automatically be resumed at the point of interruption.
     This unique feature will reduce the cost and time of upgrading.
  •  Automatically or application driven decision when to switch over to the new
     application/firmware.
  •
  •  Up to 200 simultaneous upgrade sessions.
  •  Support applications that use VPL upgrade notifications.
  •  Support for automatic programming of un-programmed factory delivered unit.
  •  Scheduled upgrade policy.
  •  Support for upload of user defined file to unit.
  •  Comprehensive logging and status features.
  •  Import from and export to comma delimited files.
  •  RTCU Deployment Server API for advanced back-end integration.


RTCU Deployment Server - User's Manual (pdf)

-- Ordering code: RT-GGWUPG, available for free download


RTCU MICRO STANDARD APPLICATION

The RTCU MICRO Standard application offers extremely easy setup/use of the unit for simple applications not requiring the full flexibility of the RTCU IDE programming environment. The pre-programmed functionality allows generating SMS-messages and/or calling up with user recorded voice message on the leading and/or falling edge of an input. By sending an user defined SMS-message or calling the unit using voice/DTMF the outputs can be controlled. Temperature monitoring and GPS functionality for geofencing are also included in the standard application. The configuration is performed either by sending SMS-messages to the unit or by using the RTCU Micro Configuration Tool available free of charge.

The RTCU MICRO STANDARD APPLICATION and the RTCU Micro Configuration Tool can be downloaded for free here.



RTCU Citect SCADA driver

Citect driver support for the complete line of RTCU Products has been developed by Vikingegaarden.
For more information and ordering please contact www.vikingegaarden.com



Fleet Managment / Navigation



Navigation and Messaging Platform (NMP)


The Logic IO Navigation and Messaging Platform (NMP) is a powerful and open platform for implementation of state-of the-art advanced fleet management applications integrating navigation, messaging, driver identification and job dispatch capabilities.
The NMP platform works on almost any Microsoft Windows CE 5.0
based device and is based on the market leading Sygic navigation engine tightly integrated into the powerful RTCU concept.

The Logic IO Navigation and Messaging Platform (NMP) is fully backward compatible with already developed RTCU applications utilizing the Garmin FMI interface, but extends the functionality to a new level of power and flexibility. A number of user defined on-screen buttons and dialogs can be defined and controlled in almost any way and additionally the Mobile Data Terminal (MDT-200) API is fully supported, thus opening up for a new level of customized user interaction.

The key features of the Navigation and Messaging Platform:

  •  Based on Sygic navigation engine under Microsoft Windows CE 5.0 (or later).
  •  Several map options including emergency maps for police, ambulance etc.
  •  Versatile range of devices supported (large screens, ruggedized, etc).
  •  Fully compatible with the Garmin FMI level 2 API.
  •  Fully compatible with the Mobile Data Terminal API.
  •  User defined on-screen buttons and dialogs with many user properties.
  •  Single GPS source with data from the RTCU device.
  •  Highly configurable user interface.
  •  Custom device logo, colour theme and waypoints icons.
  •  Customer language and unicode support.
  •  Remote upgrade and configuration capabilities.
  •  Open architecture allowing specialized functionality to be added.
  •  Full RTCU IDE and RTCU Emulator support for rapid development.
  •  Support for Sygic Emergency maps for special vehicles such as fire/police.

The developing task is easy as the NMP device can be connected to the RTCU Emulator, allowing rapid development of complete fleet management and messaging applications within the RTCU IDE environment.

For detailed information about the NMP interface please consult the RTCU IDE on-line help or manual.

For a complete solution with a professional ruggedized navigation device with interface cables, etc. and the NMP software preinstalled ready to use, please see the PNM-220.

The illustration below shows the system architecture with the various components constituting a complete Fleet Management solution:


NMP - Product data sheet V2.10  (pdf)
NMP - User Guide V3.00  (pdf)
Sygic Fleet 10 - Users guide (EN) V3  (pdf)
Sygic Fleet 10 - Users guide (DE) V3  (pdf)
Sygic Fleet 10 - Users guide (NL) V3  (pdf)
Sygic Fleet 10 - Users guide (FR) V3  (pdf)
Sygic Fleet 10 - Users guide (IT) V3  (pdf)


PNM-220 Professional Navigation and Messaging Device


The PNM-220 is a complete solution using the Navigation and Messaging Platform (NMP) designed for the most demanding and professional fleet management applications.

The PNM-220 offers a ruggedized 7-inch, easy to read, screen optimized for finger touch usage. A powerful processor and generous RAM and flash ensure a delightful experience.

The product comes with the NMP software/maps pre-installed and cable for connection to the RTCU MX2 turbo or the RTCU MX2i pro/pro+
Ready to go!

The PNM-220 product package includes:

  •  Rugged and durable Navigation and Messaging device:
             - 7-inch diagonal resistive touch anti-glare TFT-LCD screen.
             - Driver friendly interface with 6 hardware buttons.
             - Powerful dual-speaker system.
             - Automotive interface cable with data and power.
             - Running Microsoft Windows CE.NET 6.0.
  •  Navigation and Messaging Platform software installed.
  •  Sygic maps installed according to customer requirements.
  •  Interface cable for the RTCU MX2i pro/pro+ / MX2 turbo.
  •  Power cable for connection to 12..36 volt.
  •  Connection for up-to two analog cameras for rear-view or cabin monitoring.
  •  Dashboard mount.
  •  Optional: Cable for connection to the RTCU Emulator.


PNM-220 - Product data sheet V1.00  (pdf)
PNM-220 - Technical Manual V1.00  (pdf)

-- Ordering codes:
  RT-PNM-220          (PNM-220. Maps ordered separately)
  RT-PNM-PC           (PC-interface cable for the RTCU Emulator)

-- Sygic Fleet 10 maps:
  RT-SYG-FEU2         (Europe - TomTom)
  RT-SYG-TFEU2        (TRUCK, Europe - TomTom)
  RT-SYG-FEU-E        (Emergency, Europe - Navteq)
  RT-SYG-TFEU-E       (TRUCK/Emergency, Europe - Navteq)

Note:
Maps for other regions (Teleatlas/Navteq) are
also available on request.


Automotive analog cameras for PNM-220


The analog cameras are designed for direct connection to the PNM-220 product allowing applications such as rear-view monitoring to be implemented.
Two cameras are offered:
  •  RT-O-CAM-RV1:
     Compact camera suitable for discrete installations.
     12 Volt usage.
  •  RT-O-CAM-RV2:

    Powerful and ruggedized camera for the most demanding applications.
     12/24 Volt usage.

Both cameras are waterproof and offers IR LED for true night-vision view.


RT-O-CAM-RV1 - Product data sheet V1.00  (pdf)
RT-O-CAM-RV2 - Product data sheet V1.00  (pdf)

-- Ordering code:
    RT-O-CAM-RV1
    RT-O-CAM-RV2




Garmin Fleet Management / Navigation Interface




The Garmin Fleet Management / Navigation API supports implementation of advanced fleet management applications integrating Navigation, Two-way messaging, Driver identification and Job dispatch capabilities. The Job dispatch functionality includes advanced features such as support for routes with multiple stops, route optimization and periodic Estimated Time of Arrival (ETA) notifications.

The RTCU CX1 warp series and the RTCU MX2 turbo can be connected to certain navigation devices from Garmin allowing the development of highly advanced Fleet Management, Messaging and Navigation applications.
For Garmin Navigation devices currently supported see here.

To connect the RTCU device to the Garmin Navigation device a special interface cable is required. It is also possible to connect the Garmin device to the RTCU Emulator allowing development of complete Fleet Management applications within the RTCU IDE environment.

Logic IO is offering interface cables as well as Garmin Navigation devices constituting a complete solution. Currently we are offering the Garmin Dezl 570 and Garmin Dezl 770 professional navigators.
Also available is a complete MX2 turbo FMI Starter kit with everything to get started on the development of applications

For detailed information about the Garmin Fleet Management / Navigation API please consult the RTCU IDE on-line help or manual.

A large variety of interface cables are available with HD traffic and Premium traffic services and with various connectors for MX2 (TYCO / RJ45), CX1 and AX9 turbo.
Please refer to the ordering codes below.

For supported devices please refer to this page maintained by Garmin.

Product data sheet V1.31  (pdf)

-- Ordering codes:

RT-O-GARMIN-FMI25    (CX1/AX9)
   RT-O-GARMIN-FMI25T   (MX2 series. TYCO6)
   RT-O-GARMIN-FMI25R   (MX2 series. RJ45)
   RT-O-GARMIN-FMI45    (CX1/AX9. Premium traffic services)
   RT-O-GARMIN-FMI45T   (MX2 series. TYCO6. Premium traffic services)
   RT-O-GARMIN-FMI45R   (MX2 series. RJ45. Premium traffic services)
  RT-O-GARMIN-FMIPC    (RTCU Emulator cable. Requires RJ45 FMI cable)

Garmin Dezl 770 (Europe)


Hit the open road with dezl 770 – the new Garmin navigator designed exclusively for the trucking industry. With large 7-inch display, rugged design, extra loud speaker and external video input for optional backup camera, dezl is ideally suited to the in-cab environment. Delivering advanced navigation, multi-route planning and calculation with nüRoute technology, dezl customises routes to your vehicle’s specific attributes, complete with trucking points of interest, truck speed limits, hazards and exits.

Preloaded with detailed full Europe maps, for turn-by-turn directions and spoken street names, dezl’s specialised routing supports truck-related restrictions customisable by your vehicle height, weight, length and hazardous materials. Simply enter your truck’s profile and dezl guides you onto suitable truck-verified roads, avoiding towns, cities and routes where relevant restrictions apply. You can even set up custom avoidances for specific roads and areas. Advanced multi-point truck routing finds the most efficient route between multiple stops and users can maintain various truck and driver profiles across a fleet, changing the active profile at any point.

Dezl makes finding an appropriate place to park much simpler with its “exit services” feature, which enables drivers to quickly search upcoming motorway exits for food, fuel, lodging, rest areas, truck stops and weigh stations. Once refuelled, the quick-release powered mount with Park Position Recall helps you navigate back to your parked vehicle to get quickly back on the road

Fully supports the Fleet Management / Navigation Interface level 2 and level 3 API.

This package includes the full package with the Dezl 770 device and the FMI-45 interface cable for direct connection to the RTCU MX2 turbo.

-- Ordering code:

RT-O-GARMIN-DZ770B (Includes FMI45 / RTCU MX2 RJ45 cable)


Garmin Dezl 570 (Europe)


Hit the open road with dezl 570 – the new Garmin navigator designed exclusively for the trucking industry. With large 5-inch display, rugged design, extra loud speaker and external video input for optional backup camera, dezl is ideally suited to the in-cab environment. Delivering advanced navigation, multi-route planning and calculation with nüRoute technology, dezl customises routes to your vehicle’s specific attributes, complete with trucking points of interest, truck speed limits, hazards and exits.

With its 5-inch (12.7 cm) high-resolution touchscreen display, dezl 560L provides a wealth of information in great detail. PhotoReal Junction View delivers a realistic reproduction of road signs and junctions along your route, with stunning landscape detail for exceptional clarity right down to the exact trees and pylons! With Lane Assist, there’s no more guessing which lane you need to be in, dezl uses arrows to indicate the right lane for navigation at the right time – especially helpful when navigating complex motorway exits and junctions. So there’s no need for panic, hesitation or last-minute lane changes, even on unfamiliar routes.

Preloaded with detailed full Europe maps (44 countries, truck coverage may vary), for turn-by-turn directions and spoken street names, dezl’s specialised routing supports truck-related restrictions customisable by your vehicle height, weight, length and hazardous materials. Simply enter your truck’s profile and dezl guides you onto suitable truck-verified roads, avoiding towns, cities and routes where relevant restrictions apply. You can even set up custom avoidances for specific roads and areas. Advanced multi-point truck routing finds the most efficient route between multiple stops and users can maintain various truck and driver profiles across a fleet, changing the active profile at any point.

Dezl makes finding an appropriate place to park much simpler with its “exit services” feature, which enables drivers to quickly search upcoming motorway exits for food, fuel, lodging, rest areas, truck stops and weigh stations. Once refuelled, the quick-release powered mount with Park Position Recall helps you navigate back to your parked vehicle to get quickly back on the road

Whether your business acts globally or locally, the dezl 560L can be integrated into your existing or planned fleet management system. Garmin GPS solutions are a key part of today's most useful, versatile, and cost-efficient fleet monitoring solutions.

Fully supports the Fleet Management / Navigation Interface level 2 advanced API.

This package includes the full package with the Dezl 570 device and the FMI-25 interface cable for direct connection to the RTCU MX2 turbo.


-- Ordering code:

RT-O-GARMIN-DZ570B (Includes FMI25 / RTCU MX2 RJ45 cable)


RF add-on modules

RF add-on modules for the AX9i pro / AX9 turbo / CX1 warp series

Wireless connectivity is becoming a feature of choice for many applications, today. By using an off the-shelf embedded wireless module, the customer gets the benefit of using field proven RF hardware and protocol software to ensure the best performance possible. RF functionality of the RTCU units are designed to effortlessly interface with virtually any control, command, or monitoring applications for building automation systems, security systems, and industrial applications. The easy configurable network allows adapting to changing floor plans and requirements in a matter of minutes. New sensors and devices can be added to the network, as fast as they can be mounted.

The highly sophisticated RF protocol implemented offers bi-directional communication with increased operational reliability and improves the basis for an extensive range of devices. Additionally the bidirectional communication ensures, that the tasks are received and accomplished correctly.

Currently four main categories of add-on modules are supported:

Remote control keyfobs: With remote control keyfobs the user defined functionality on the RTCU unit can be controlled.

External relay modules: The relay modules provide relay outputs, which can be controlled remotely and are capable of switching external AC or DC powered loads.

AC switching modules: The modules can be plugged directly into a wall receptacle and are capable of switching devices.

Remote sensors: A variety of sensors can be connected to the RTCU unit remotely, which make them usable in wide variety of applications cost and time effectively.

Currently the RF add-on modules are supported by the RTCU CX1 warp series, RTCU AX9 turbo and the RTCU SX1 series.


Product data sheet v1.00 (pdf)
Technical manual V1.00 (pdf)

-- Ordering codes:

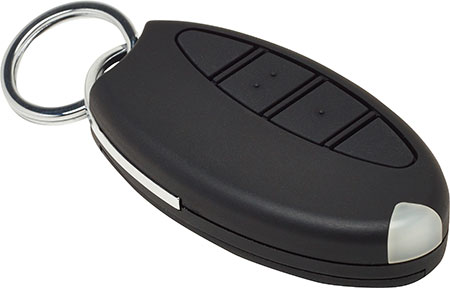

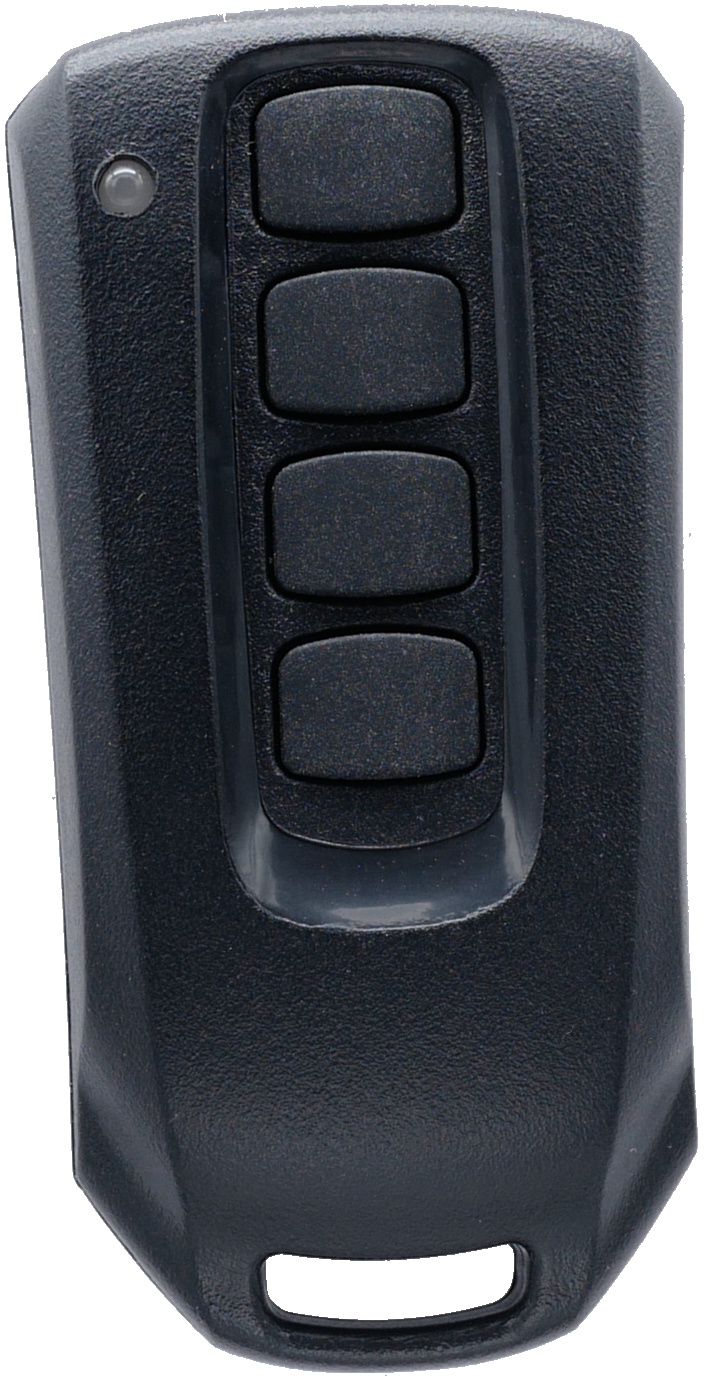

RT-O-HM-RC42         (Handheld remote sender with 4 buttons. Black)


Accessories / Options

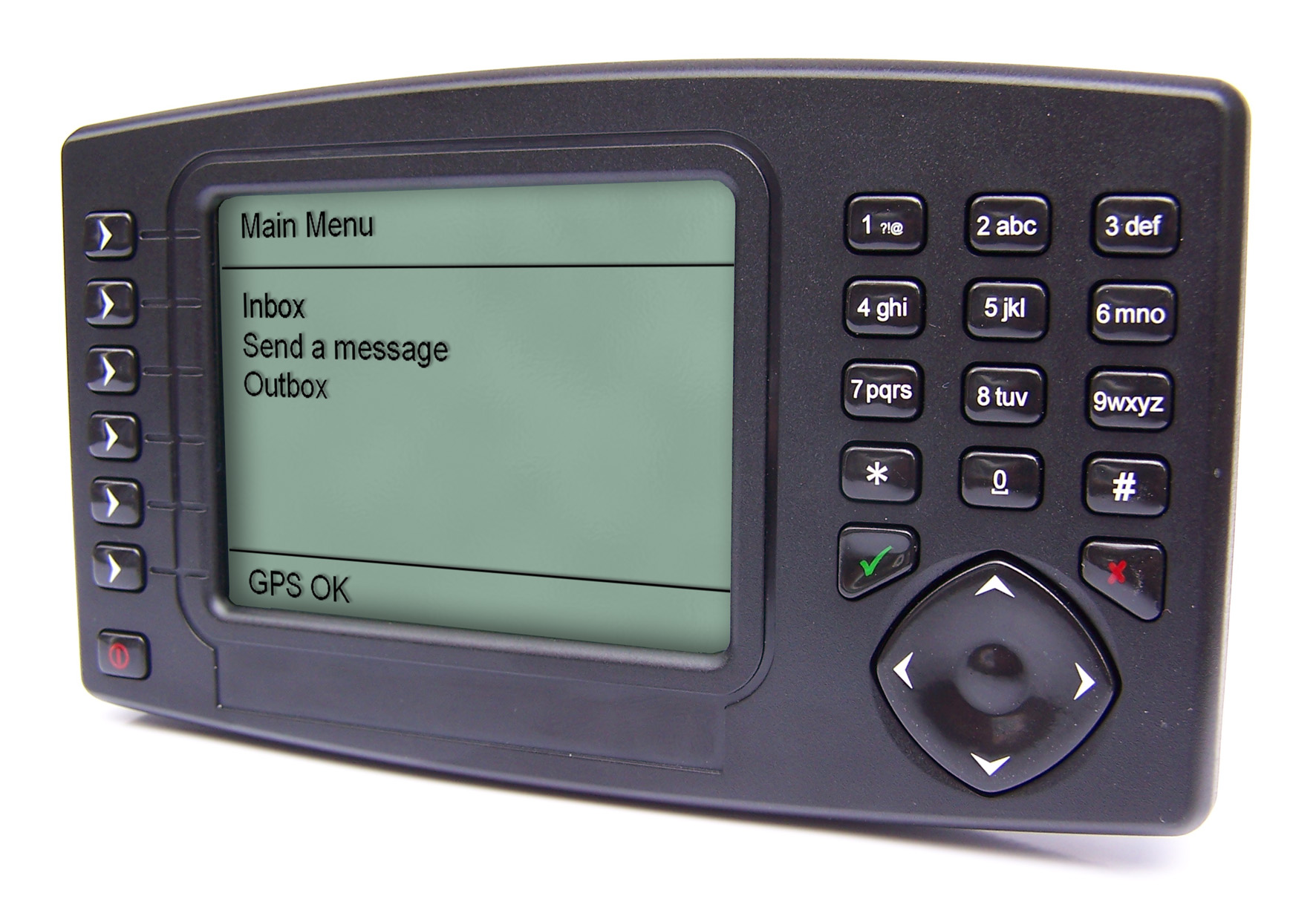

MDT-200 Mobile Data Terminal

The Mobile Data Terminal (MDT-200) extends the RTCU MX2, RTCU DX4 pro and RTCU AX9 Series with a flexible and easy to use user-interface solution with many advanced features, allowing all kinds of two-way messaging applications to be implemented.

The Mobile Data Terminal is easily connected to the RTCU unit and includes the following features:

  •  High contrast graphical Liquid Crystal Display (FSTN LCD).
  •  White LED backlight with 10 step user selectable level.
  •  320 x 240 pixels (1/4 VGA) resolution.
  •  11 lines with 28 characters per line.
  •  21 tactile keys and a 4 way cursor, all with LED backlighting.
  •  Full numeric keypad for easy entry of numbers/text.
  •  User defined characters for multilingual support.
  •  Wide viewing angle.
  •  Built in piezo buzzer.
  •  UV stabilized, high temperature enclosure. Built for tough environments.
  •  Flexible suction windscreen mount supplied.
  •  Optional heavy duty PanaVise mounting bracket.
  •  High-level VPL library.
  •  Full RTCU Emulator support.
  •  MDT on/off and standby functionality for maximum power saving.

Application development for the Mobile Data Terminal is easily archived with easy to use high-level library functions accessible from the RTCU IDE. The VPL application using the MDT can be fully simulated in the RTCU IDE environment before upload to a physical RTCU unit.


Product data sheet V1.01  (pdf)
Technical manual V1.01 (pdf)

-- Ordering codes:
RT-O-MDT200-MX2 (with MX2/DX4 interface cable)
RT-O-MDT200-AX9 (with AX9 interface cable)


PanaVise mounting bracket for the MDT-200 Mobile Data Terminal

The PanaVise 727-06 slimline mounting bracket for the MDT-200 Mobile Data Terminal is a heavy duty alternative to the standard windscreen suction mount, supplied as standard with the product.
The PanaVise 727-06 is made of aluminium, zinc and steel and the overall mounting height (including shaft) is 152.4 mm (6 inch). Flexible movement with 210° Tilt, 360° Turn & 360° Rotation at both ends.


-- Ordering code: RT-O-MDT-727-06


Bluetooth for the RTCU MX2i pro / MX2 turbo / DX4 pro / AX9 pro / AX9 turbo

The Bluetooth Smart-antenna is an exciting accessory for the RTCU MX2i pro / RTCU MX2 turbo / RTCU DX4 pro / RTCU AX9 pro / RTCU AX9 turbo. It allows a wide group of applications to be implemented. The Bluetooth Smarta-ntenna supports the Serial Port Profile (SPP) and Hands-free Profile Audio Gateway (HFP-AG). These profiles supports connection to a wide range of devices, such as: PDA, Printer, Barcode reader, RFID reader, headset and hands-free speakerphone.
The Bluetooth Smart-antenna is easy-to-use through the dedicated functions in the RTCU IDE development software.

The Bluetooth Smart-antenna hands-free profile is fully compatible with the Garmin Bluetooth hands-free feature!

The Bluetooth Smart-antenna are available in two versions for the MX2 turbo and the
RTCU AX9 turbo.


Product data sheet V1.03  (pdf)
Technical manual V1.07 (pdf)

-- Ordering code: RT-O-BT1-MX2 (Audio connector for the RTCU MX2 turbo)

-- Ordering code: RT-O-BT1-AX9 (Without audio primarily for the RTCU AX9 turbo)


WLAN/Ethernet module for the MX2 turbo / DX4 pro

The WLAN-100 / ETH-100 add-on module allows connection to the RTCU Gateway Professional or to any TCP/IP socket enabled device through either a standard LAN or through an increasing number of Wi-Fi hot-spots globally available. Using (W)LAN in many cases means that large amount of data can be transferred for FREE or at a very low cost. The WLAN-100 / ETH-100 supplements mobile data and both communication methods can be used selectable under full control of the VPL application.

The WLAN-100 supports connection to a standard Wi-Fi access point and is supplied with the necessary interface cable for the MX2 turbo or DX4 pro and a SMA antenna.

The ETH-100 supports connection to a standard Ethernet 10/100 Mbps cable infrastructure and is supplied with the necessary interface cable for the MX2 turbo or DX4 pro and a RJ45 patch cable.

Advanced configuration is supported using an easy to use web-based interface, where various parameters such as DHCP / IP-address, net-mask and security parameters are configured. Supports security using WEP, WPA and WPA2.


Product data sheet V2.03  (pdf)
Technical manual V2.13 (pdf)

-- Ordering code:
RT-O-ETH100-MX2 (Ethernet)
RT-O-WLAN100-MX2 (Wi-Fi)


2 Megapixel camera for the RTCU MX2i pro/MX2 turbo and DX4 pro

The 2 Megapixel Camera for the RTCU MX2 turbo and  RTCU DX4 pro extends the functionality of the RTCU platform with the capability to take high-resolution colour pictures in standard JPEG format. The pictures taken can be transmitted over the
network to a server and/or saved to an SD-CARD file.

The 2 Megapixel Camera supports implementation of applications such as:

  •  Remote monitoring of equipment, devices, work areas and locations
  •  Vehicle, including driver/passenger, monitoring
  •  Security applications
  •  Any event-trigger applications
  •  Stealth security applications
  •  ....many other applications where "a picture is worth a thousand words"...

The camera connects directly to the RTCU unit and requires no external power-supply. Delivered with 3 meter cable.


Product data sheet V1.00  (pdf)
Technical manual V1.00 (pdf)

-- Ordering code: RT-O-CAM200-MX2 (For MX2 pro and DX4 pro)


Mounting bracket for the RTCU MX2 Series

The Mounting bracket is used in the cases were screw-hole mounting is required for the RTCU MX2 Series.
Installation is very easy as the bracket is designed to simply fit on the MX2 Series without need for any tools. The rubber gasket between the bracket and the MX2 Series insures that when the bracket is fastened with the two screw-holes onto the surface it will remain in place.

Product data sheet V2.00  (pdf)

-- Ordering code: RT-O-MX2BRI (For the complete MX2 Series)




MX2 Series front end-cap with hidden SIM card reader

In the MX2 Series the SIM card is by standard easily accessible from the outside, which is a huge advantage in most applications.

For special requirements an alternative front end-cap with the SIM card reader hidden behind the front end-cap can be delivered. Using this front-end cap it is therefore necessary to unscrew the front end-cap to gain access to the SIM card.

The installation is easy by a simply exchange of the standard front end-cap supplied with any MX2i Series unit

-- Ordering code: MX2ECO-FRONT-SIM (For MX2i eco+)
-- Ordering code: MX2PRO-FRONT-SIM (For MX2 turbo / MX2i pro / pro+)


TYCO Mate'N'Lock Connector accessories  for the RTCU MX2 series

The RTCU MX2 Series uses the TYCO Mate'N'Lock connector type for most of its external interfacing (please see the RTCU MX2i product for details).
The following TYCO Mate'N'Lock are available for the RTCU MX2 Series:


  •  4 pins Connector house for the Power-connector
    -- Ordering code: RT-O-TYCO-H4 (10 pcs)
  •  6 pins Connector house for the Serial port 1-connector
    -- Ordering code: RT-O-TYCO-H6 (10 pcs)
  •  12 pins Connector house for the Communication-connector
    -- Ordering code: RT-O-TYCO-H12 (10 pcs)
  •  16 pins Connector house for the I/O-connector
    -- Ordering code: RT-O-TYCO-H16 (10 pcs)
  •  Crimp contacts
    -- Ordering code: RT-O-TYCO-CR (100 pcs)
  •  Original TYCO Crimp hand tool for fast&easy crimp assembly
     Safe, fast and easy crimp cable assembly.
     -- Ordering code: RT-O-TYCO-TOOL

Tyco Crimp Hand Tool Guide V2.00 (Logic IO) (pdf)

Original documents from Tyco:

Tyco Mate'N'Lock Application Specification  114-13000 (TYCO) (pdf)
Tyco Crimp Hand Tool - Instruction Sheet 408-8547 (TYCO) (pdf)


ATP Industrial Grade SD-CARD / Micro SD-CARD

Commercial grade SD-CARD, such as Sandisk, can be used in applications where the limited write endurance is acceptable - for example if the SD-CARD is often replaced. Commercial grade SD-CARDs should not be used in applications where a potential failure on the media is considered mission critical.

For applications that uses the SD-CARD media extensively and where a failure is critical, it is recommended to use approved Industrial Grade SD-CARDs.

ATP Industrial Grade SD/SDHC Cards are optimized for demanding industrial applications with consistent performance in all conditions. ATP uses reliable SLC flash technology with a flash endurance more than 20 times higher than commercial grade products with MLC flash. The differences in write endurance between commercial grade MLC flash and ATP Industrial grade SLC flash is quite remarkable for write-intensive applications:

 Product Line

Details

Total Writeable Data Prediction @ 1GB

Time Prediction

@ 500 writes a day (1GB)

ATP Industrial Grade

Industrial SLC Flash
+ Advanced Wear Levelling

80,000GB
or
2,800,000 writes

5,740 days
or
15.7 years

Commercial Grade

Grade A MLC
(2 bits per cell)
+ Advanced Wear Levelling

4,000GB
or
140,000 writes

280 days



ATP Industrial Grade SD-CARD specification (pdf)
ATP Industrial Grade Micro SD-CARD specification (pdf)

-- Ordering codes:
SKU RT-O-SDIG-1G       ATP Industrial Grade SD-CARD - 1 GB.
SKU RT-O-MSDIG-1G      ATP Industrial Grade Micro SD-CARD - 1 GB.

Other capacities on request.


Sandisk and ADATA SD-CARD approved for RTCU usage

The RTCU MX2 and DX4 Series can access an industry standard SD-CARD memory card using the FAT16/FAT32 file-system for full Microsoft Windows file sharing compatibility.


Please use ATP Industrial Grade SD-CARD for mission critical applications.

-- Ordering code:
RT-O-SDC8G    (Sandisk 8 GByte SD-CARD)
RT-O-SDC8GA  (ADATA 8 GByte SD-CARD)


Sandisk and ADATA Micro SD-CARD approved for RTCU usage

The RTCU AX9 pro/turbo, RTCU CX1i pro/pro-c and RTCU SX1 can access an industry standard Micro SD-CARD memory card using the FAT16/FAT32 file-system for full Microsoft Windows file sharing compatibility.

Please use ATP Industrial Grade SD-CARD for mission critical applications.

-- Ordering code:
RT-O-SDCM8G    (Sandisk 8 GByte Micro SD-CARD)
RT-O-SDCM8GA  (ADATA 8 GByte Micro SD-CARD)


USB 2.0 SD-CARD / Micro SD-CARD card reader

A compact USB 2.0 card-reader that can read both SD-CARD and Micro SD-CARD without any additional adaptors. Transparent grey with protective lids.

-- Ordering code: RT-O-SDRD1

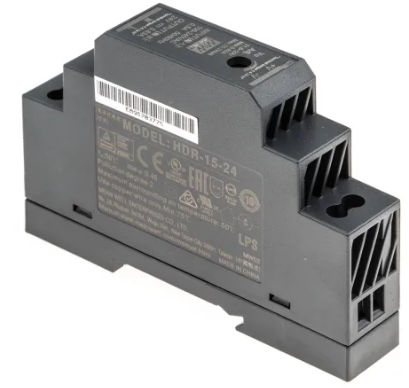

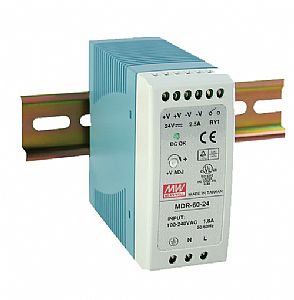

DIN Rail Power Supply, 24 volt / 2.5A.

DIN rail mounted power supply especially suited for use with the RTCU DX4 series.
Features:

  •  Universal AC input for world-wide use.
  •  Protections: Short circuit / overload / over voltage.
  •  Cooling by free air convection.
  •  LED indicator for power on.
  •  DC OK relay contact.
  •  24 Volt / 2.5 A.

Product data sheet (pdf)
-- Ordering code: RT-O-MDR6024


RTCU AX9 Series Wall Mount Kit.

The RTCU AX9 Series Wall Mount Kit includes 4 corner mounting brackets for easy wall mounting of the unit.

-- Ordering code: RT-O-AX-WM1


RTCU AX9 Series screw wing head.

The RTCU AX9 Series screw wing head is for easy fastening of the lid without using a tool.
Delivered in bag with 60 pcs (for 15 devices).

-- Ordering code: RT-O-AX-SWH60


MODBUS I/O Expansion Modules

RT-EX-9017:  8 Analog Inputs, 16 Bit

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9017 module offers 8 Analog Inputs with a resolution of 16 bits.
Several Voltage and Current configurations are available, including:
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V and +/-20 mA.

Product data sheet V1.02  (pdf)
Technical manual V2.01 (pdf)
-- Ordering code: RT-EX-9017


RT-EX-9024:  4 Analog Outputs, 14 Bit.

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9024 module offers 4 Analog Outputs with a resolution of 14 bits.
Several Voltage and Current configurations are available, including:
+/-10 V, 0..10 V, +/-5 V, 0..5 V, 0..20 mA and 4..20 mA.


Product data sheet V1.01  (pdf)
Technical manual V2.02 (pdf)
-- Ordering code: RT-EX-9024


RT-EX-9041D:  14 Digital Inputs (isolated)

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9041D module offers 14 isolated Digital Inputs and LED indication of the inputs status.

Product data sheet V1.01  (pdf)
Technical manual V2.01 (pdf)
-- Ordering code: RT-EX-9041D


RT-EX-9043D:  15 Digital Outputs

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9043D module offers 15 Digital Outputs and LED indication of the outputs status.

Product data sheet V1.01  (pdf)
Technical manual V2.02 (pdf)
-- Ordering code: RT-EX-9043D


RT-EX-9044D:  4 Digital Inputs and 8 Digital Outputs (isolated)

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9044D module offers 4 isolated Digital Inputs and 8 isolated Digital Outputs.
LED indication is available for Input/Output status.

Product data sheet V1.01  (pdf)
Technical manual V2.01 (pdf)
-- Ordering code: RT-EX-9044D


RT-EX-9065D:  4 Digital Inputs and 5 Digital Relay Outputs

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9065D module offers 4 isolated Digital Inputs and 5 high-power Digital Relay Outputs (5A/230V).
LED indication is available for Input and Output status.

Product data sheet V1.01  (pdf)
Technical manual V2.01 (pdf)
-- Ordering code: RT-EX-9065D


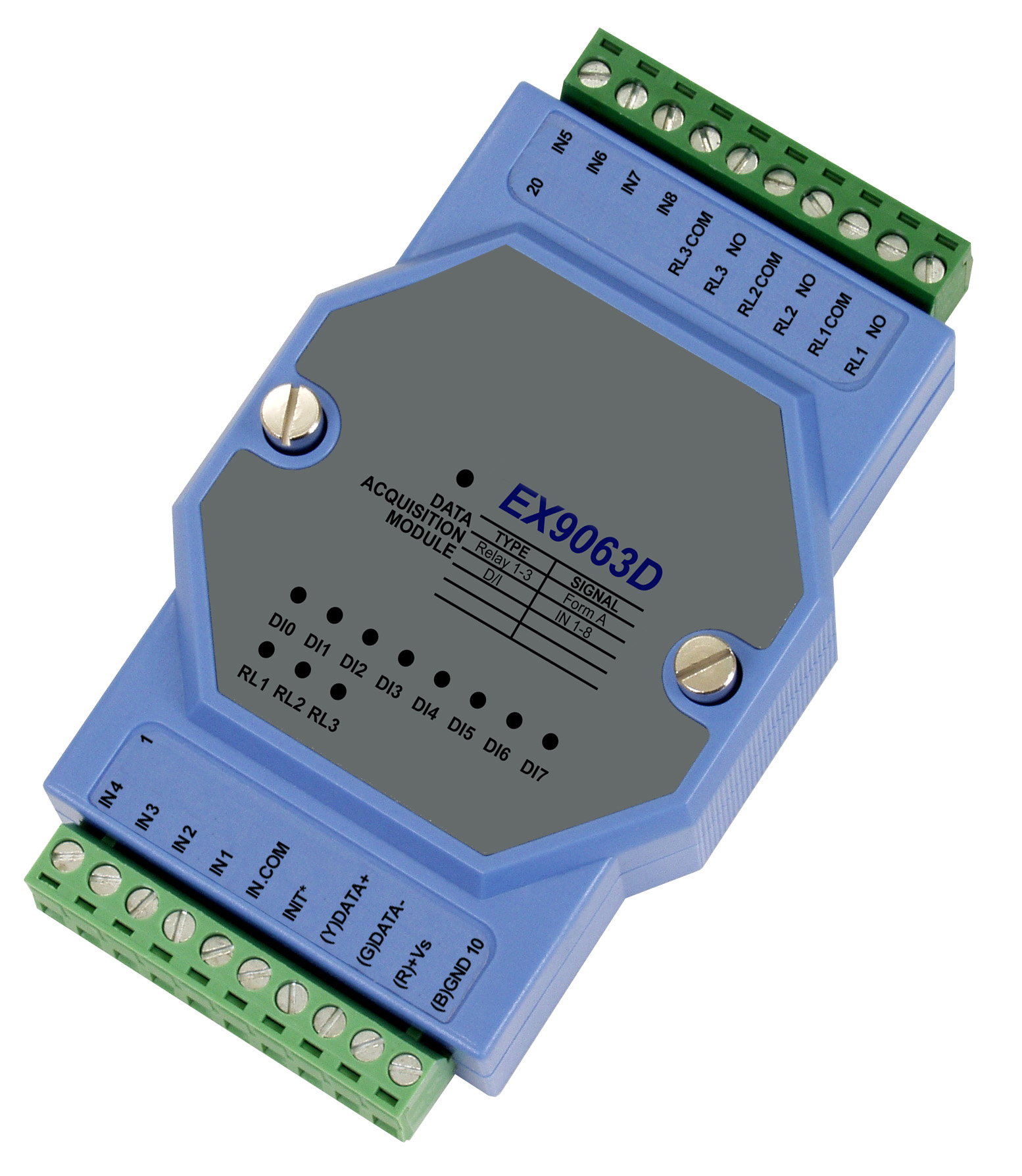

RT-EX-9063D:  8 Digital Inputs and 3 Digital Relay Outputs

To expand the I/O capability of certain RTCU products an MODBUS compatible I/O module can be connected to the product and configured using the I/O Expansion configuration functionality available in the RTCU IDE. The I/O Expansion is completely transparent to the application and remote I/O are therefore accessed and used exactly as on-board I/O.

Logic IO are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use due to the set-up utility included in the RTCU IDE.

The EX9063D module offers 8 isolated Digital Inputs and 3 high-power Digital Relay Outputs (5A/230V).
LED indication is available for Input and Output status.

Product data sheet V1.00  (pdf)
Technical manual V1.01 (pdf)
-- Ordering code: RT-EX-9063D


Modular 1-Wire

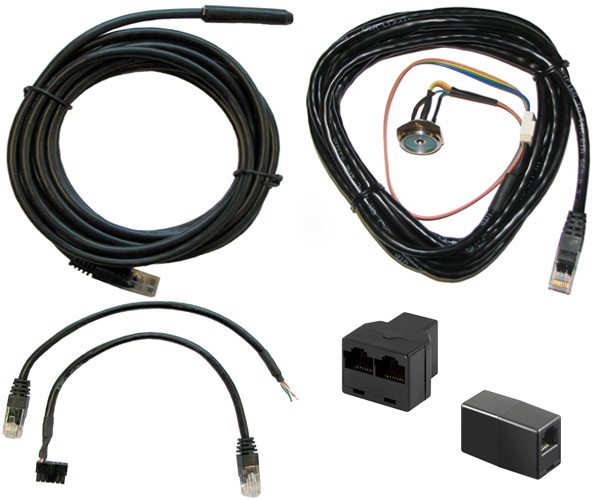

Modular 1-Wire concept

The modular 1-Wire concept is offering high flexibility and customization for a wide range of applications utilizing multiple 1-Wire devices. The 1-Wire concept is based on building blocks such as combiners, splitters and unit interface cables connected together with standard and widely available RJ45 UTP cable technology.

Unit interface cables are available which connect the RTCU unit to a splitter or combiner, that again connects to branches with more splitters and combiners and at the end-points of this arbitrary topology various lengths of 1-Wire devices such temperature sensors or ID-button readers can be connected. As the backbone is based on standard RJ45 UTP cable technology expanding a network can easily be achieved.


Product data sheet v1.00 (pdf)
Technical manual V1.02 (pdf)


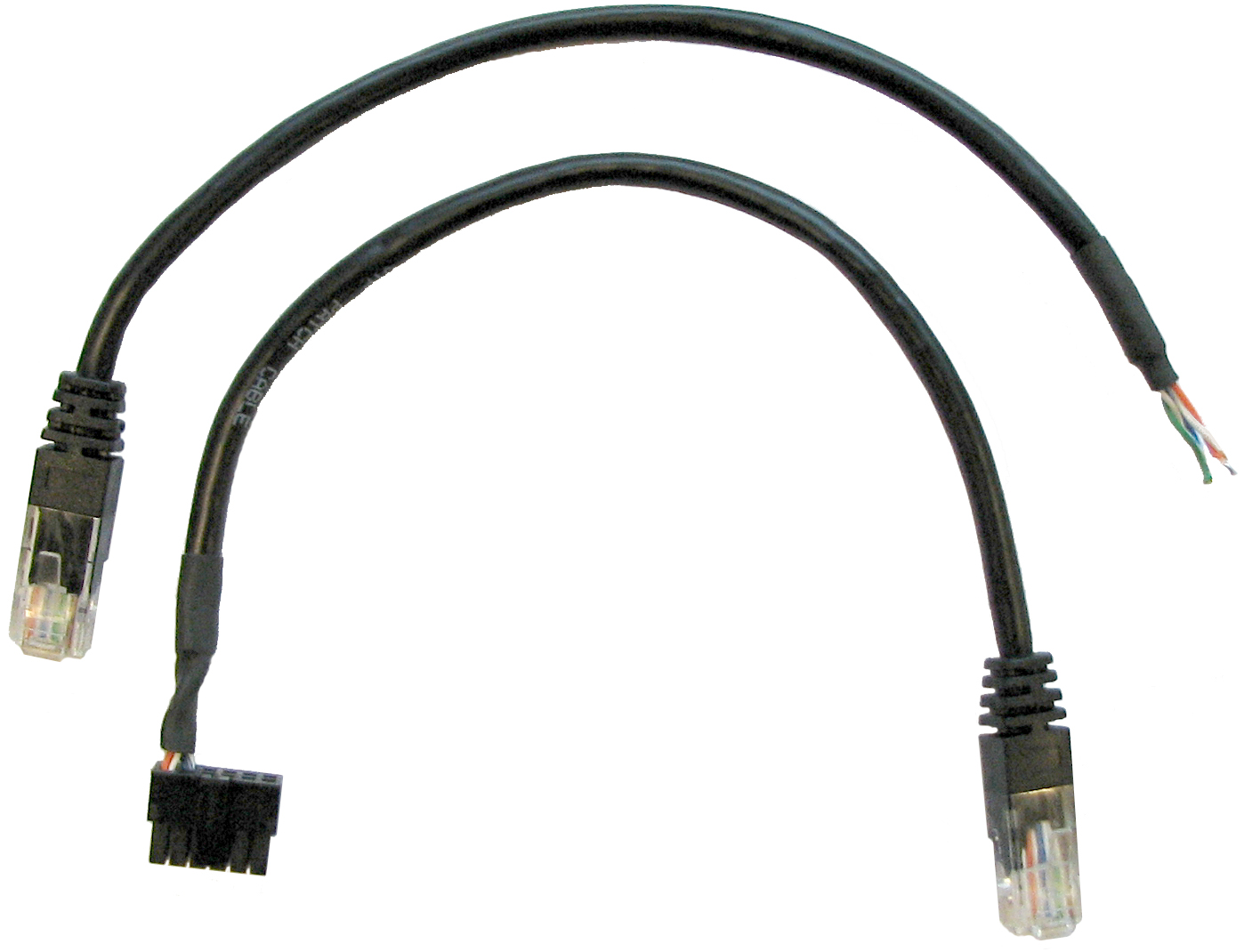

Modular 1-Wire unit interface cable

The modular 1-Wire interface cable makes the physical bridge to the modular 1-Wire network. The modular network can easily be customized with the use of standard RJ-45 splitters and combiners to achieve the needed 1-Wire network. Multiple 1-Wire devices such as temperature sensors and ID-Button readers can be connected to one RTCU unit.

The modular 1-Wire interface cables are available for the MX2 series, the DX4/AX9 series and the CX1i flex/pro. The modular 1-Wire interface are delivered with a RJ-45 connector for easy connection to a combiner if only a single 1-Wire device is connected. For multiple 1-Wire devices a splitter can be used. No external power supply is required as the 1-Wire devices derives power directly from the 1-Wire bus simplifying installation.

Please refer to the Modular 1-Wire Technical manual for installation and use.


Product data sheet v1.02 (pdf)

-- Ordering codes:

RT-O-1WM-IF1      (Unit interface cable for SX1,AX9,DX4)
  RT-O-1WM-IF2      (Unit interface cable for MX2)
  RT-O-1WM-IF3      (Unit interface cable for CX1 warp-c)




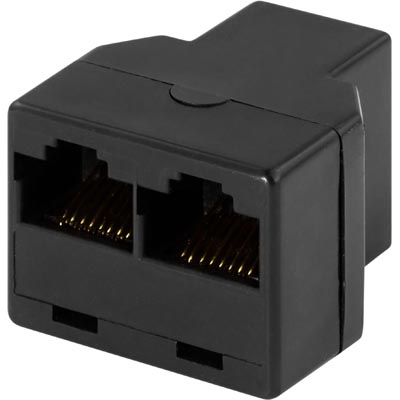

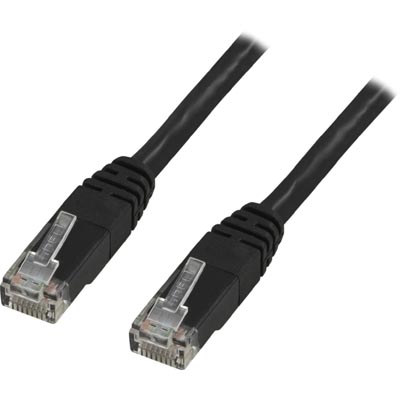

Modular 1-Wire splitter, combiner and RJ45 UTP cables

The modular 1-Wire concept is build on standard RJ45 cable technology and by using splitters, combiners and RJ45 UTP cables any network topology required by the application can be designed and implemented.
The following parts are offered:

  •  RJ45 combiner. Combines two RJ45 cables
  •  RJ45 splitter. Splits one RJ45 cable into two cables.
  •  RJ45 UTP cables. HQ cables in various lengths.


-- Ordering codes:

RJ45-CMB             (RJ45 combiner)
   RJ45-SPL2            (RJ45 2-way splitter)
   RJ45-UTP03M          (RJ45 HQ UTP cable -  3 meter)
   RJ45-UTP05M          (RJ45 HQ UTP cable -  5 meter)
   RJ45-UTP07M          (RJ45 HQ UTP cable -  7 meter)
   RJ45-UTP10M          (RJ45 HQ UTP cable - 10 meter)
   RJ45-UTP15M          (RJ45 HQ UTP cable - 15 meter)

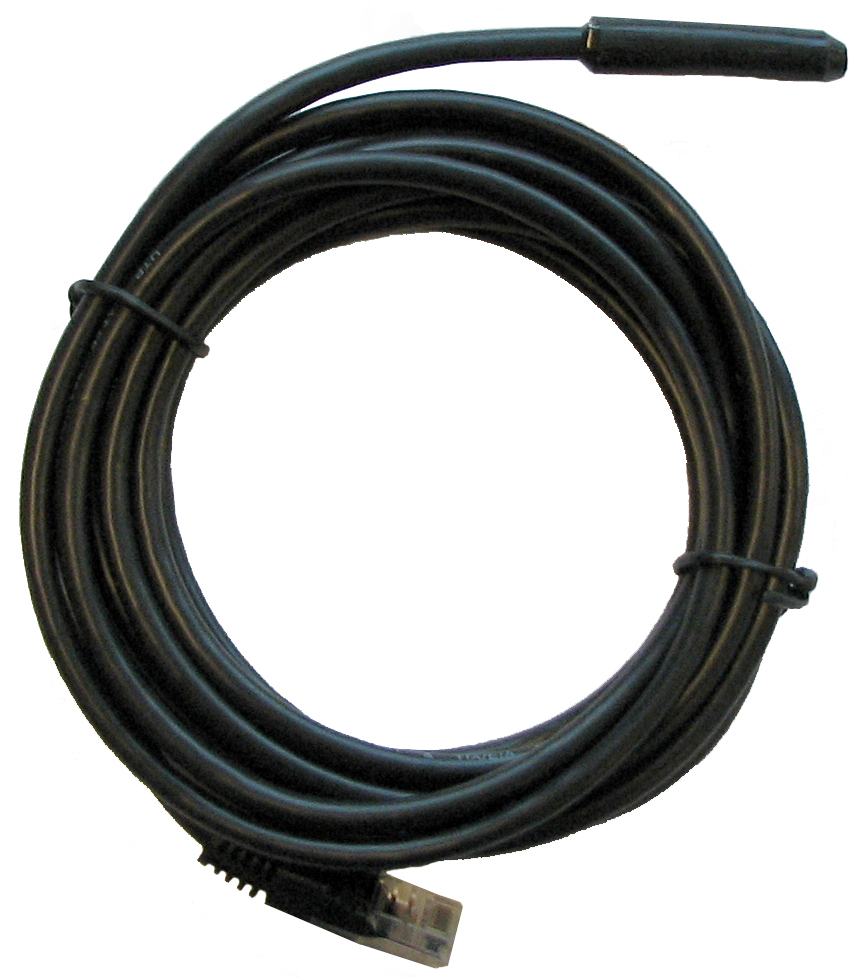

Modular 1-Wire temperature sensor

The modular 1-Wire temperature sensor are delivered with a RJ-45 connector for easy connection to the modular 1-Wire network via a combiner or splitter allowing easy installation in any application. The temperature sensor offers an accuracy of typical +/- 0.5ºC and ranges from –55ºC to +125ºC.

The communication between the RTCU unit and the temperature sensor is done through the 1-Wire interface, requiring only a single wire and a ground to establish the data connection. No external power supply is needed as the temperature sensor derives power directly from the 1-wire bus simplifying application set-up. From the RTCU application temperatures are measured with a simple function similar to the known board temperature function. The temperature sensor has a unique factory-lasered 64-bit serial number allowing connection of multiple temperature sensors on the same 1-Wire bus.

Please consult the RTCU IDE on-line help for more information about the supported 1-Wire Temperature Sensor functions.

The Modular 1-Wire temperature sensor can be delivered in two length; 3 or 10 meters of cable with a RJ-45 for easy installation into the modular 1-Wire network. If another length is required the modular 1-Wire network is easy expandable with a combiner or splitter and standard UTP network cable.

Product data sheet v1.00 (pdf)

-- Ordering codes:

RT-O-1WM-TEMP3       (Modular 1-Wire temperature cable -  3 meter)
   RT-O-1WM-TEMP10      (Modular 1-Wire temperature cable - 10 meter)


Modular 1-Wire ID-Button reader

The modular 1-wire ID-Button reader features an easy to install and easy to use 1-Wire ID-Button reader with controllable LED indicator.  The modular 1-Wire ID-Button reader are delivered with a RJ-45 connector for easy connection to the modular 1-Wire network via a combiner or splitter allowing easy installation in any application. The ID-Button reader offers a way to uniquely identify persons or items equipped with ID-buttons.

The communication between the RTCU unit and the ID-Button reader is done through the 1-Wire interface, requiring a single data wire, a ground to establish the data connection, an extra wire is dedicated for controlling the LED present in the ID-Button reader. No external power supply is needed as the ID-Button reader derives power directly from the 1-wire bus simplifying application set-up. From the RTCU application reading an ID-Button and controlling the LED indicator is easily done with function call. IDButtons with on-board non-volatile memory is also available for storing data directly in the ID-Button.

Please consult the RTCU IDE on-line help for more information about the supported
1-Wire ID-Button Reader functions.

The modular 1-Wire ID-Button reader can be delivered in two length; 3 or 10 meters of cable with a RJ-45 for easy installation into the modular 1-Wire network. If another length is required the modular 1-Wire network is easy expandable with a combiner or splitter and a standard network cable.

Note: On the CX1 series the LED is not supported.


Product data sheet v1.00 (pdf)

-- Ordering codes:

RT-O-1WM-IDRD3       (Modular 1-Wire ID-Button reader -   3 meter)
   RT-O-1WM-IDRD10      (Modular 1-Wire ID-Button reader -  10 meter)


1-Wire accessories

iButton - ID Button for user identification

This ID Button can be read by an iButton reader connected to a suitable RTCU unit for easy and secure identification of a person/item identified with a unique ID button. This can be used for numerous applications: driver identification, turning alarm on/off, usage registration etc.

-- Ordering code: RT-O-1W-ID1X (10 pcs.)


iButton - ID Button Fobs

This ID Button Fob holds the ID Button in place so that it is convenient available whenever needed. Available in black colour.

-- Ordering code: RT-O-1W-FOB1X (black) (10 pcs.)


iButton - ID Button for user identification with on-board memory

This ID Button can be read and written to by an iButton reader connected to a suitable RTCU unit for easy and secure identification of a person/item identified with a unique ID button. The on-board non-volatile memory of 116 bytes of data opens up a broad range of new applications, where the user specific information can be stored directly into the iButton itself.
Applications include access control, work-in-progress tracking, electronic travelers, storage of calibration constants and debit tokens.

-- Ordering code: RT-O-1W-ID2


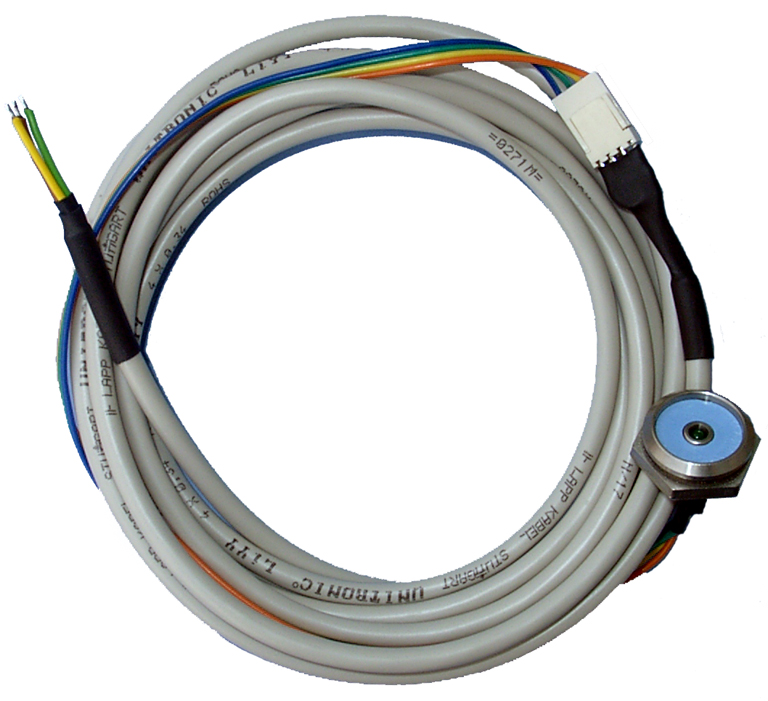

iButton - ID Button Reader

This ID Button Reader is used for reading the ID Button above. It is supported in the hardware and firmware of the RTCU MX2 turbo/MX2i pro/eco+ and the RTCU AX9/DX4 series products.
Comes with 3 meter cable and includes a LED that can be controlled from software.
Can easily be mounted on the dashboard of a vehicle.

Also see the modular 1-wire section.


Technical manual V1.12 (pdf)

-- Ordering code:
RT-O-1W-IDRD2 (AX9/DX4/SX1)
RT-O-1W-IDRD3 (MX2 turbo/MX2i pro/eco+)


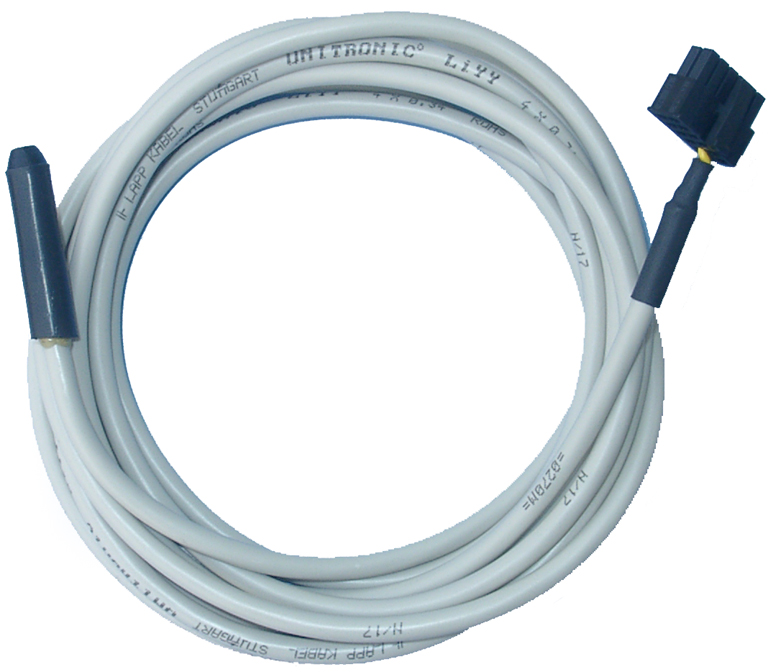

External Temperature sensor

This 1-Wire based external temperature sensor can measure temperatures from -55 to 125 degrees Celsius with a precision of 0.5 degrees Celsius.
It is supported in the hardware and firmware of the RTCU MX2 turbo/MX2i pro/eco+ and the RTCU AX9/DX4 series products. Comes standard with 3 meter cable and a waterproof temperature-sensor.

Also see the modular 1-wire section.


Product data sheet v1.02 (pdf)
Technical manual V1.12 (pdf)

-- Ordering code:
RT-O-1W-TEMP2 (AX9/DX4/SX1)
RT-O-1W-TEMP3 (MX2 turbo / MX2i pro/eco+)


Power and I/O Cables

Power cable with ignition for the RTCU MX2 Series

Power cable with ignition for the RTCU MX2 Series.
With separate wires: red=Plus, black=Minus and green=Ignition.
Length: 2 meter.

-- Ordering code: RT-O-PWR-MX2


Programming Cables / Adaptors

High-Speed USB Programming Cable for the RTCU MX2 and DX4i warp

This High-Speed USB programming cable for the RTCU MX2 and RTCU DX4i warp greatly increases the communication speed to the device.

-- Ordering code: RT-O-PCA-USB3


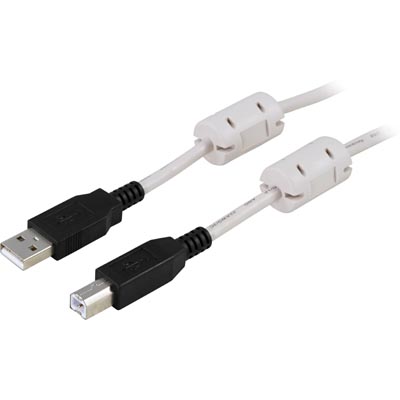

RTCU Programming Cable for the RTCU AX9i Series

High-quality USB programming cable with two mounted Ferrite cores for
communicating with the RTCU AX9i Series from programs such as the RTCU IDE.

The RTCU AX9 turbo / RTCU AX9 encore uses the RT-O-PCA-USB2 cable below.

-- Ordering code: RT-O-PCA-USB1


RTCU Programming Cable for the RTCU CX1i/SX1/DX4i pro & AX9 turbo/encore


High-quality USB programming cable with two mounted Ferrite cores for
communicating with the RTCU CX1/SX1/DX4i pro and the RTCU AX9 turbo/encore from programs such as the RTCU IDE.

-- Ordering code: RT-O-PCA-USB2


RS232 RJ45 to SUB-D9 (male) cable for RTCU MX2 turbo / MX2i pro / DX4 Pro

This cable is for converting the RJ45 Serial port to a standard SUB-D9 (male) connector. Cable length: 20 cm.

-- Ordering code: RT-O-RJ45SM


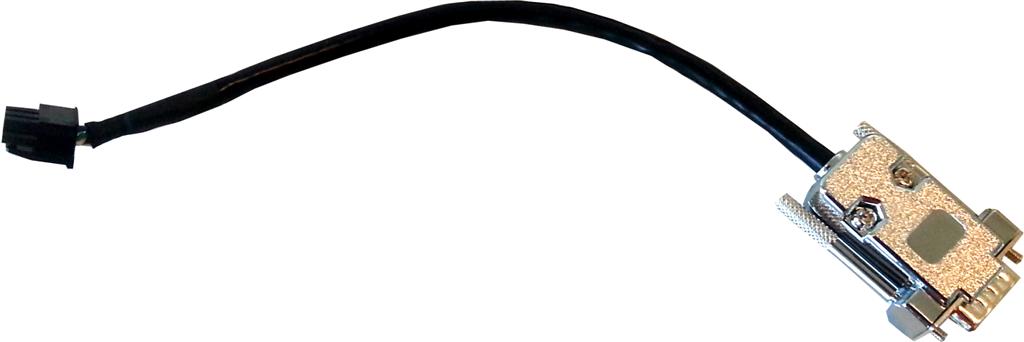

RS232 TYCO6 to SUB-D9 (male) cable.

This cable is for converting the TYCO6 serial port to a standard SUB-D9 (male) connector. TX/RX and GND signals are connected and RTS/CTS is shortened on the SUB-D9 side.
Cable length: 20 cm.

-- Ordering code: RT-O-TYCO6SM


Barcode reader for serial-number scanning


This handy barcode reader can be used scanning the serial-number label present on all RTCU units.
Connects to a standard USB port and emulates a standard keyboard interface.

-- Ordering code: RT-O-BAR-RD1


USB <-> RS232 Adaptor

USB<->RS232 adaptor that allows reliable communication with RTCU units using
RS232 as the programming interface. This adaptor requires no external power and has a high performance due to its enhanced 128 bytes transmit and massive 384 bytes receive FIFO's. Two LED indicators for RX/RX status monitoring.
Installs as a standard and user-selectable COM port.

1 x RS232 9-pin connector. Cable length 25 cm
Drivers for Windows 2000/XP/Server-2003/Vista and Windows 7.


-- Ordering code: RT-O-PC-SER3



GSM / UMTS/ GPS Antennas

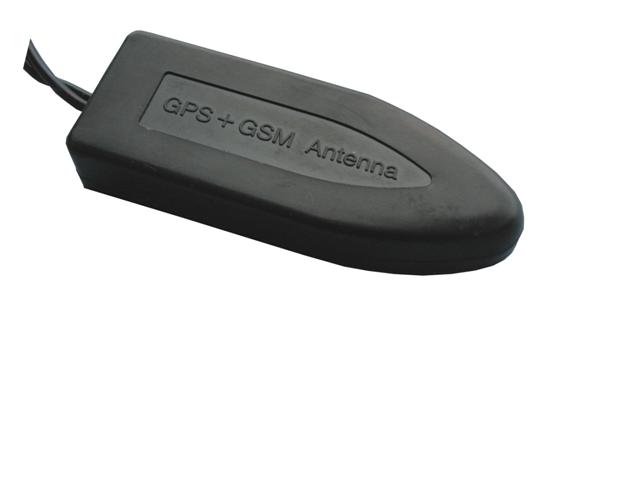

RTCU UMTS/GSM and GPS/GLONASS combined antenna.

This low-cost combined antennna supports the frequencies of GPS/GLONASS and GSM / UMTS making this antenna the best choice for demanding applications utilizing the RTCU MX2 turbo and RTCU MX2 encore.


The slim form-factor of this antenna makes it ideal for installation in difficult places.
The dimensions are only: 96mm x 36mm x 15mm.

It has a SMB female connector for the GNSS and a SMA male connector for the GSM part.
Comes with 3 meter cable and can be connected directly to the MX2 series.
Must be mounted with the adhesive side facing reverse the sky - towards the installation surface.

Our most popular antenna!


Product data sheet (pdf)

-- Ordering codes:
    RT-O-GPSGSM-XG1   (3 meter cable)
    RT-O-GPSGSM-XG1L  (5 meter cable)


RTCU UMTS/GSM and GPS/GLONASS combined antenna for CX1/SX1.

Supports the frequencies of GPS/GLONASS and  UMTS / GSM making this antenna the best choice for demanding applications utilizing the RTCU CX1 and the
RTCU SX1 series.


The slim form-factor of this antenna makes it ideal for installation in difficult places. The dimensions are only: 96mm x 36mm x 15mm.

It has a SMA male connectors for both the GNSS and GSM part with 3 meter cable.
Must be mounted with the adhesive side facing reverse the sky - towards the installation surface.

Product data sheet (pdf)

-- Ordering codes:
    RT-O-GPSGSM-SG1   (3 meter cable)


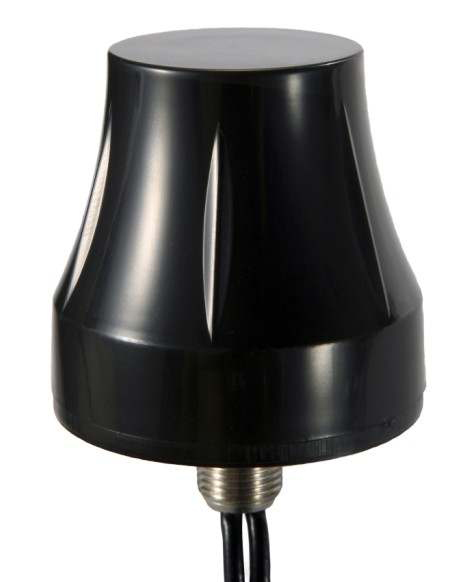

RTCU GSM/UMTS and GPS/GLONASS combined antenna.

High-performance antenna for outdoor installation - typically on roof-top of vehicle in professional and demanding applications.

Supports the frequencies of GPS/GLONASS and GSM / UMTS making this antenna the best choice for demanding applications utilizing the RTCU MX2 turbo and RTCU MX2 encore.

It has a SMB female connector for the GNSS and a SMA male connector for the GSM part. Comes with 5 meter cable and can be connected directly to the MX2 series.

Product data sheet (pdf)

-- Ordering codes:
    RT-O-GPSGSM-XG3

RTCU GSM/UMTS and GPS/GLONASS combined antenna for CX1/SX1.

High-performance antenna for outdoor installation - typically on roof-top of vehicle in professional and demanding applications.

Supports the frequencies of GPS/GLONASS and GSM / UMTS making this antenna the best choice for demanding applications utilizing the RTCU CX1 and the
RTCU SX1 series.

It has a SMA male connector for both the GPS/GNSS and GSM part and comes with 5 meter cable.

Product data sheet (pdf)

-- Ordering codes:
    RT-O-GPSGSM-SG3

RTCU GSM/UMTS and GPS/GLONASS combined magnetic antenna.

High-performance antenna for outdoor installation with magnetic mount for easy and flexible installation.

Supports the frequencies of GPS/GLONASS and GSM / UMTS making this antenna the best choice for demanding applications utilizing the RTCU MX2 turbo and RTCU MX2 encore.

It has a SMB female connector for the GNSS and a SMA male connector for the GSM part. Comes with 5 meter cable and can be connected directly to the MX2 series.


Product data sheet (pdf)

-- Ordering codes:
    RT-O-GPSGSM-XG4

RTCU GPS Smartantenna for the RTCU DX4i pro

This GPS Smartantenna adds GPS capability to the RTCU DX4i pro for efficient asset og timing management. The is IP66 protected and comes with 4.5M cable that easily connects to the RS232 (TYCO6) of the RTCU DX4i pro. No external power is required.

Product Features:

  •  SiRF Star IV high performance GPS Chipset.
  •  Very high sensitivity.
  •  Extremely fast time to first fix.
  •  Supports WAAS.
  •  One-hole screw-mount.
  •  Comes with connector for both RS232/power for the RTCU DX4i pro.
  •  Dimension: 62 mm diameter, 21 mm height.


Product data sheet (pdf)
(not yet available)

-- Ordering code: RT-O-GPSX-DX4


RTCU GPS Active Antenna with magnet.

This compact GPS antenna with a SMB female connector and 3 meter cable is waterproof and includes a powerful magnet for easy installation. Can be connected directly to the MX2i series.

Product data sheet (pdf)

-- Ordering code: RT-O-GPSANT3


RTCU "round" GPS Active Antenna

This is a round and small GPS antenna, only ø39 x 13 mm. Very easy to hide. Comes with a SMB female connector and 2,5 meter cable. Can be connected directly to the MX2i series


Product data sheet (pdf)

-- Ordering code: RT-O-GPSANT2


RTCU GSM Angled Dual-band whip antenna

This small GSM dual band antenna with SMA male connector can be mounted directly onto the RTCU unit. The antenna has a adjustable angled connector.

Product data sheet (pdf)

-- Ordering code: RT-O-GSM-S1


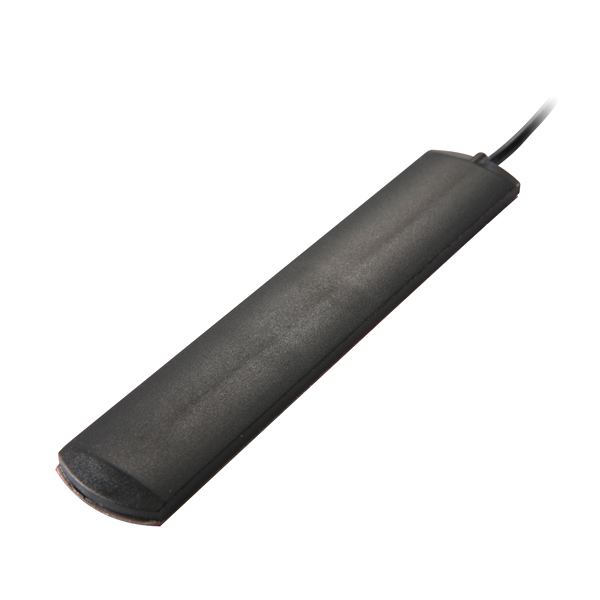

RTCU UMTS/GSM window antenna

This is a compact UMTS/GSM window GSM antenna with SMA male connector and 3 m. cable.

Product data sheet (pdf)

-- Ordering code: RT-O-GSM-WIN3


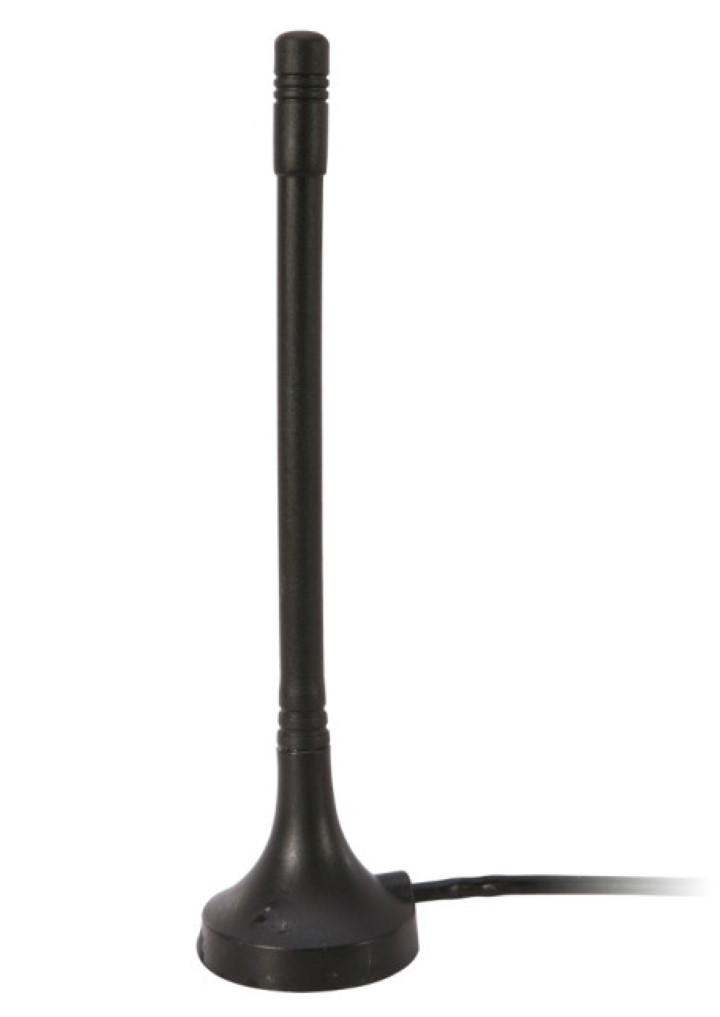

RTCU UMTS/GSM magnet antenna.

This is a magnet UMTS/GSM antenna with SMA male connector and 3 m. cable.

Product data sheet (pdf)


-- Ordering code: RT-O-GSM-MG2


RTCU UMTS/GSM whip antenna.

This small UMTS/GSM band antenna with an SMA male connector can be mounted directly onto the RTCU unit. Length 185 mm.

Product data sheet (pdf)

-- Ordering code: RT-O-GSM-WHIP3


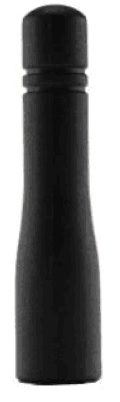

RTCU UMTS/GSM micro antenna.

Extremely compact UMTS/GSM antenna with an SMA male connector for direct mounting onto the RTCU device. Length is only 50 mm!

This antenna is part of the standard antenna set for the CX1 series!


Product data sheet (pdf)

-- Ordering code: RT-O-GSM-SCX2


RTCU GPS/GLONASS antenna.

Extremely compact GPS/GLONASS antenna with an SMA male connector and 2 meter cable.

This antenna is part of the standard antenna set for the CX1 series!

Product data sheet (pdf)

-- Ordering code: RT-O-GPS-SCX2


Obsolete Products
