RTCU CX1 warp mk2 series
offers worldwide UMTS/HSPA support and a state-of-the-art GNSS positioning engine.
Available in just two variants taking advantage of the powerful "hardware
on-demand" where options can be applied any time - even remotely after installation!
.jpg) The
RTCU CX1 warp mk2 series are compact, waterproof and ruggedized telematics tracking and control devices, based on the powerful X32-architecture. The series sports a long list of standard features and can be further upgraded when required with powerful
on-demand hardware options.
The RTCU CX1 warp mk2 series are available in two versions:
-
RTCU CX1 warp 3G
With RS232/FMI and 1-wire, but no CAN bus.-
RTCU CX1 warp-c 3G
With CAN bus, but no RS232/FMI or 1-wire.
Except for the differences listed above the two variants are identical.
The
RTCU CX1 warp mk2 series is designed for a broad variety of advanced telemetry / telematics applications and has been manufactured according to the highest technical standards for professional automotive and industrial use. The product has all necessary regulatory approvals – including 2004/104/EC / UN ECE R10 and CE mark.
The
RTCU CX1 warp mk2 series
include many sophisticated standard features and can be further upgraded as required with the following on-demand hardware features:
I/O:
2 x digital inputs, 2 x digital outputs and 1 x analog input (total).
RF:
Medium range ISM band RF transceiver with on-board antenna.
COM:
RS232/FMI and 1-Wire bus (warp) or CAN (warp-c).
FLASH:
Micro-SD card reader and 3 MB extended flash.
FREE!
The 'FLASH' option is
FREE and just requires activation.
Options can be applied on-demand even remotely by the unit already installed in the field.
The
RTCU CX1 warp mk2 series
rests on the
RTCU M2M Platform,
that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IIoT applications.
RTCU CX1 warp mk2 series
technical highlights:
-
Based on the
RTCU M2M Platform.
-
X32
execution architecture:
o
RTCU IDE development tool with a full featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
FMS/J1939, Garmin FMI.
-
Worldwide
Penta-band UMTS/HSPA engine.
-
Internal SIM-card reader.
-
State-of-the art
Multi-GNSS
positioning engine
with GPS, GLONASS,
and GALILEO.
-
High-performance
3-axis accelerometer with 16g scale.
-
Large data-flash/logger memory with a capacity
of 4.5 MB.
-
Internal
4 MB FAT32 flash drive.
-
1 x digital inputs and
1 x high-power solid-state digital output (upgradeable).
-
Wide operating range from 8..36 VDC.
-
On-board
Li-Ion battery.
-
Advanced
power-management with wake-up on a wide range of events.
-
High-speed
Mini-USB programming connector.
-
Support the
Garmin Fleet Management Interface.
-
Fully
supported by the
RTCU Communication Hub
and the
RTCU
Deployment Server.
-
Available in two powerful hardware versions:
RTCU CX1 warp 3G (RS232/1-wire)
RTCU CX1 warp-c 3G (CAN)
-
Ruggedized IP66 plastic encapsulation.
-
Delivered with a 50 cm interface cable.
-
Powerful on-demand hardware options:
I/O:
2 x digital inputs, 2 x digital outputs and 1 x analog input (total).
RF:
Medium range ISM band RF transceiver with on-board antenna.
FLASH:
Micro SD card reader and 3 MB extended flash.
FREE!
COM:
RS232/FMI and 1-Wire bus (warp) or CAN (warp-c).
-
On-demand options can be applied
anytime — even remotely after installation
-
1-Wire bus for accessories such as
ID-button reader,
temperature sensors, etc.
....many other
advanced features
Please read the Datasheet and Technical
manual below
 RTCU
CX1 warp mk2 series data sheet V1.10 (pdf)
RTCU
CX1 warp mk2 technical manual V1.01 (pdf)
Declaration
of Conformity (DoC) (pdf)
|
.jpg) |
This product has been
superseded by the RTCU
NX-400 evo.
 The
RTCU NX-400 is a powerful M2M/IIoT
Gateway device, that rests on an entirely new
hardware and software architecture representing
a major leap in functionality, power, openness
and performance.
The
RTCU NX-400 is designed for the
most sophisticated M2M and Internet of Things
applications, that demand the most
advanced product available on the market.
The device is based on the new
NX32L (NX32
for Linux) architecture, which embraces many new
technologies and at the same time maintains full
backward compatibility, which ensures already
implemented and tested NX32 applications can execute without
changes.
The
RTCU NX-400 device is designed to meet the ever
increasing challenges on security, in that it
offers full TLS on all major protocols and
includes a hardened protected execution
environment with dual-boot and automatic
fallback and recovery.
The RTCU NX-400
device is an industrial DIN rail device, that
has been designed from the ground up for professional
M2M / IIoT applications with its strong on-board I/O
capabilities and multiple communication interfaces such
as Cellular LTE Cat. 4, Wi-Fi, Bluetooth
Classic / Low-Energy, CAN bus, Ethernet, dual
RS232, dual RS485 and 1-Wire.
The
RTCU NX-400 also sports an USB host port interface
allowing for expansion of the device with
accessories such as: GPS, RFID reader,
additional Ethernet port and additional
RS232/RS485 ports
The
on-board I/O system can be expanded almost
indefinitely and completely transparently by
adding Modbus I/O modules. This unique I/O
expansion capability, combined with the ability
to operate as a Modbus master and slave
simultaneously, positions the
RTCU NX-400 as the
perfect device for a broad range of applications.
Technical
Highlights:
Platform:
- Based on the
RTCU M2M Platform.
- NX32L (NX32 for
Linux)
execution architecture.
- RTCU IDE
development tool.
- Operates under
a full and highly optimized Linux
variant.
- Open and
extendable with the
RTCU Platform SDK.
Hardware Core:
Cortex-A5 32-bit
ARM processor operating at 500 Mhz.
Hardware floating
point and DSP instructions.
128 MByte LP-DDR
RAM.
512 MByte NAND
Flash (file-systems).
16 MByte NOR flash
(system boot).
8 MB Dataflash
(persistent memory/datalogger).
128 KB SRAM with
battery back-up (unlimited endurance).
Real-time clock
with battery back-up.
Security:
Embedded firewall.
TLS/SSL support
with full certificate management.
TLS/SSL support for
all major TCP protocols, such as SMTP, MQTT,
and sockets.
Hardware assisted
encryption/authentication.
Wireless Communication:
LTE Cat. 4
Cellular Engine for the EMEA region.
Wireless LAN
(Wi-Fi).
Classic and
Low-Energy Bluetooth.
Optional:
Wireless
M-Bus.
Wired Communication:
100 Mbps Ethernet
LAN interface.
Optional 2nd
Ethernet LAN interface.
Full CAN 2.0B
controller with hardware filtering and
multi-speed support.
1-Wire bus for
accessories such as ID-button reader,
temperature sensors, etc.
USB host port for
expandability.
2 x RS232 channels
and 2 x RS485 channels.
I/O Interfaces:
4 x analog inputs
and 4 x analog outputs with 0..10 volt /
0..20 mA.
8 x digital inputs
and 8 x high-power solid-state digital
outputs.
4 digital
inputs can be configured as IEC62053-31
Class A compliant.
Expandable I/O with
standard Modbus modules.
User Interaction:
Graphical 240x160
pixels White-on-Blue display.
Status-bar with
information on the state of all interfaces.
Touch-screen with
virtual buttons.
High-speed Mini-USB
service-port connector.
Audio:
Fully digitized
audio system.
Transfer, store and
play audio.
Line and amplified
speaker output.
Microphone input.
Digitized GSM
audio.
DTMF support for
Interactive Voice Response applications.
Storage :
Internal flash
drive with up-to 512 MByte capacity.
Persistent memory
and circular datalogger.
Standard SD-CARD
reader.
USB flash media.
Power and Battery:
Operating voltage
from 8 to 36VDC.
On-board 2Ah Li-Ion
battery with intelligent charging.
Encapsulation:
Housed in a
standard 9M DIN-rail dark-grey enclosure.
Regulatory Approvals:
- 2014/53/EU,
2014/30/EU and 2011/65/EU.
For further information please refer to the data
sheet and the technical manual below,
and the
RTCU M2M Platform datasheet.
Product
data sheet V3.00 (pdf)
Technical
manual V2.01 (pdf)
RTCU
NX-400 Product Geometry V1 (pdf)
Declaration
of Conformity (DoC) (pdf)
RTCU
Open Source Software Licenses (pdf)
|
.JPG) |

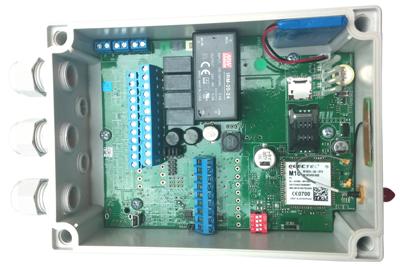

The
RTCU AX9 encore is a cost-efficient
device based on the full powered
RTCU AX9 turbo offering a wide range of
features and performance critical features such
as full support for the NX32 Execution Architecture.
The
RTCU AX9 encore
is designed according to the highest technical
standards for today's professional M2M telemetry
applications.
The
RTCU
AX9 encore uses the next generation
NX32 execution model
and is fully
backward compatible with the X32 execution
model. Existing software will therefore be able
to operate without any changes or costly
re-testing.
.jpg)
For worldwide
usage in any network environment the
RTCU AX9 encore
offers a full quad-band GSM engine with a
switchable dual antenna design supporting both
an on-board as well as an external GSM antenna.
The
RTCU AX9 encore
rests on the
RTCU M2M Platform,
that brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IIoT
applications.
RTCU AX9 encore
technical highlights:
- Based on
the
RTCU M2M Platform.
-
NX32
execution architecture:
o RTCU IDE development tool with a full featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT and MODBUS.
o Fully backward compatibility with existing X32
applications.
-
Worldwide
Quad-band GSM engine.
-
Internal
antenna and external GSM antenna connector. Application selectable.
-
Internal
SIM-card reader.
-
Digitized audio can be played over GSM.
-
DTMF
support for implementation of Interactive
Voice Response applications.
-
Enhanced
memory sub-system with
fast program
execution.
-
Huge
data-flash/logger memory with a capacity of
4.5 MB.
-
Internal
4 MB FAT32 flash drive.
-
Standard
FAT32
SD-CARD
reader
with up to 32 GB capacity.
-
RS232
channel with optional shared
RS485
channel.
-
2 x analog inputs with 0..10 volt / 0..20 mA with
12 bit precision.
-
5 x digital inputs and
4 x high-power relays.
-
Up to 4 digital inputs can be configured as
IEC62053-31 Class A compliant.
-
Expandable I/O with standard
MODBUS modules.
-
1-Wire bus for accessories such as
ID-button reader,
temperature sensors, etc.
-
Wide AC/DC power operating range from
100..260VAC / 8..36 VDC.
-
External
DC power can be selectable enabled/disabled
by the application.
-
24 Volt DC-out capability for powering external equipment.
-
On-board
Li-Ion battery.
-
Advanced
power-management
with wake-up
on a wide range of events.
-
High-speed
mini-USB programming connector.
-
Housed in a
ruggedized plastic encapsulation with cable glands.
-
IP65 protected for outdoor usage.
-
Fully
supported by the
RTCU Communication Hub
and the
RTCU
Deployment Server.
A
complete range
of MODBUS I/O modules are offered by Logic IO for easy connection to the
RTCU
AX9 encore
product. Please see the
MODBUS
I/O Modules section.
For further information please refer to the
data sheet and the technical manual below.
Product
data sheet V1.10 (pdf)
Technical
manual V1.01 (pdf)
Declaration
of Conformity (DoC) (pdf)

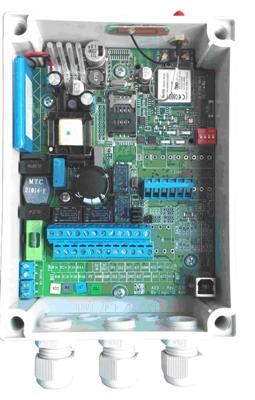

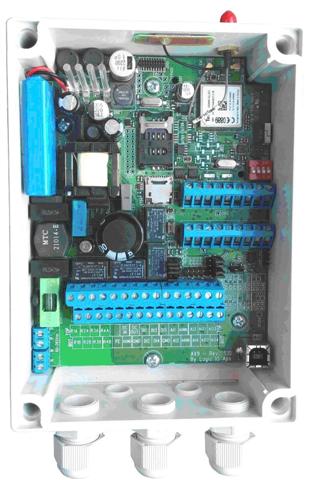

-- Ordering codes:
SKU
RT-AX9E
RTCU AX9 encore
|
.jpg) |
(The RTCU
LX4 pro is available here)

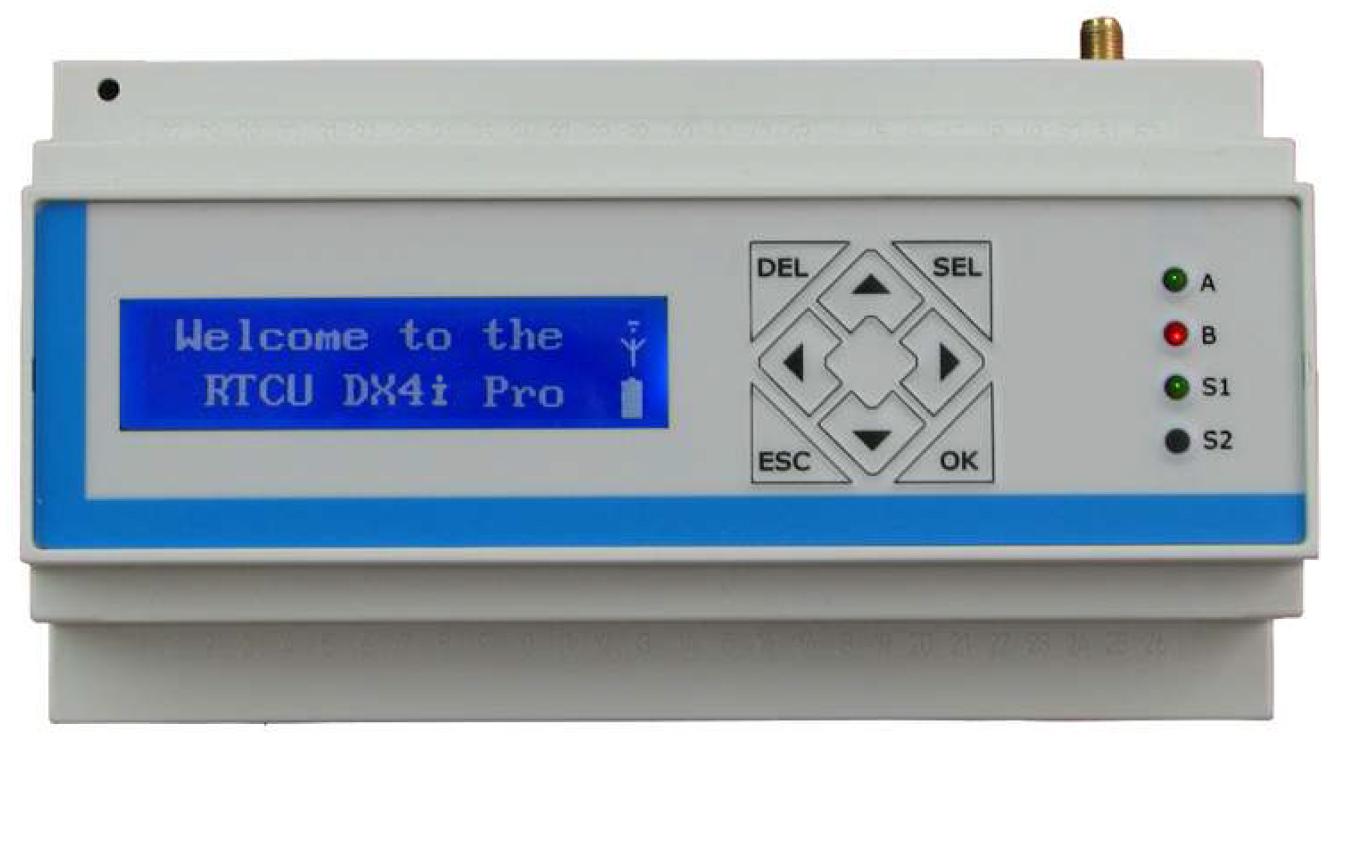

The
RTCU DX4i pro mk2
offers a world-wide communication
solution with its cellular engine combined with a
large 4 MB internal flash drive, 4.5 MB of datalogger/persistent memory in addition to dual
RS485 channels, high-precision analog inputs and
finally USB as programming port. All based on
the RTCU M2M Platform!

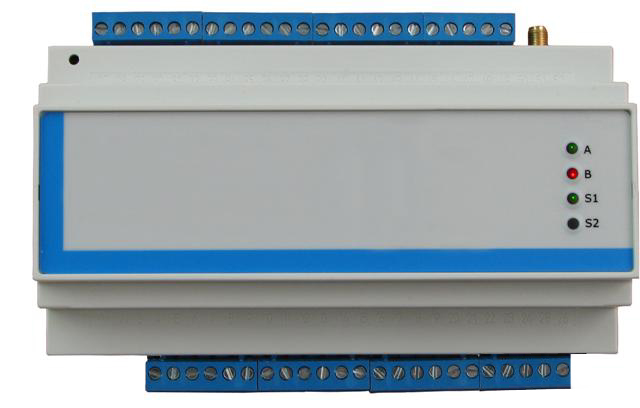

.jpg) The
RTCU DX4i pro mk2
has been designed from the ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
multiple communication interfaces such as: dual
RS232, dual RS485, 1-Wire, CAN and USB.
Housed in a
standard DIN-rail encapsulation, it is a perfect
component for automation and control
applications.
The on-board I/O system can
be expanded almost indefinitely and completely
transparently by adding external MODBUS
compatible I/O modules. This unique I/O
expansion capability, combined with the ability
to operate as a MODBUS master and slave
simultaneously, positions the
RTCU DX4i pro mk2
as the perfect product for SCADA-like
applications.
The
RTCU DX4i pro mk2 is based on the X32 Execution Architecture
offering high performance along with a large
memory capacity for both program and data -
meeting the requirements of today’s most
demanding and sophisticated M2M/IIoT
applications.
The
RTCU DX4i pro mk2
rests on the
RTCU M2M Platform,
that brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IIoT
applications.
RTCU DX4i pro mk2
technical highlights:
-
Based on
the
RTCU M2M Platform.
-
X32
execution architecture:
o
RTCU IDE development tool with a full featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
MODBUS, FMS/J1939.
-
World-wide
LTE Cat. M1 / Cat. NB1 cellular engine
(DX4i pro-LTE).
-
World-wide Penta-band UMTS/HSPA engine
(DX4i pro-3G).
-
World-wide
Quad-band
GSM engine
(DX4i
pro-2G).
-
Standard mini-SIM card reader.
-
Digitized audio can be played over GSM or to an external device
(DX4i pro-2G).
-
DTMF support for Interactive Voice Response applications
(DX4i pro-2G).
-
Graphical 144x32 pixels display with white-on-blue back-lit text/graphics.
-
Keypad with 8 keys for sophisticated user interaction and control.
-
Large data-flash/logger memory with a capacity
of 4.5 MB.
-
Internal
4 MB FAT32 flash drive.
-
Standard FAT32
SD-CARD reader with up to 32 GB capacity.
-
2 x RS232 channels and
2 x RS485 channels.
-
4 x analog inputs with 0..10 volt / 0..20 mA with
12 bit precision.
-
4 x analog outputs with 0..10 volt / 0..20 mA.
-
8 x digital inputs and
8 x high-power solid-state digital outputs.
-
Up to 4 digital inputs can be configured as
IEC62053-31 Class A compliant.
-
Expandable I/O with standard MODBUS modules.
-
Full CAN 2.0B controller with hardware filtering and multi-speed support.
-
1-Wire bus for accessories such as
ID-button reader,
temperature sensors, etc.
-
Wide operating range from 8..36 VDC.
-
On-board
high-capacity Li-Ion battery.
-
Advanced
power-management with wake-up on a wide range of events.
-
High-speed
Mini-USB programming connector.
-
Housed in an industry standard
M36 DIN compliant encapsulation.
-
Two-part pluggable connectors for easy installation and maintenance.
-
Fully
supported by the
RTCU Communication Hub
and the
RTCU
Deployment Server.
-
Accessories:
MODBUS modules,
GPS and 2 MP camera.
....many
other advanced features
Please read the datasheet and
technical
manual below
A
complete range
of MODBUS I/O modules are offered by Logic IO for easy connection to the
RTCU DX4i pro
mk2
product. Please see the
MODBUS
I/O Modules section.
Product
data sheet V3.01 (pdf)
Technical
manual V3.01 (pdf)
Declaration
of Conformity (DoC) (pdf)
|
.jpg) |

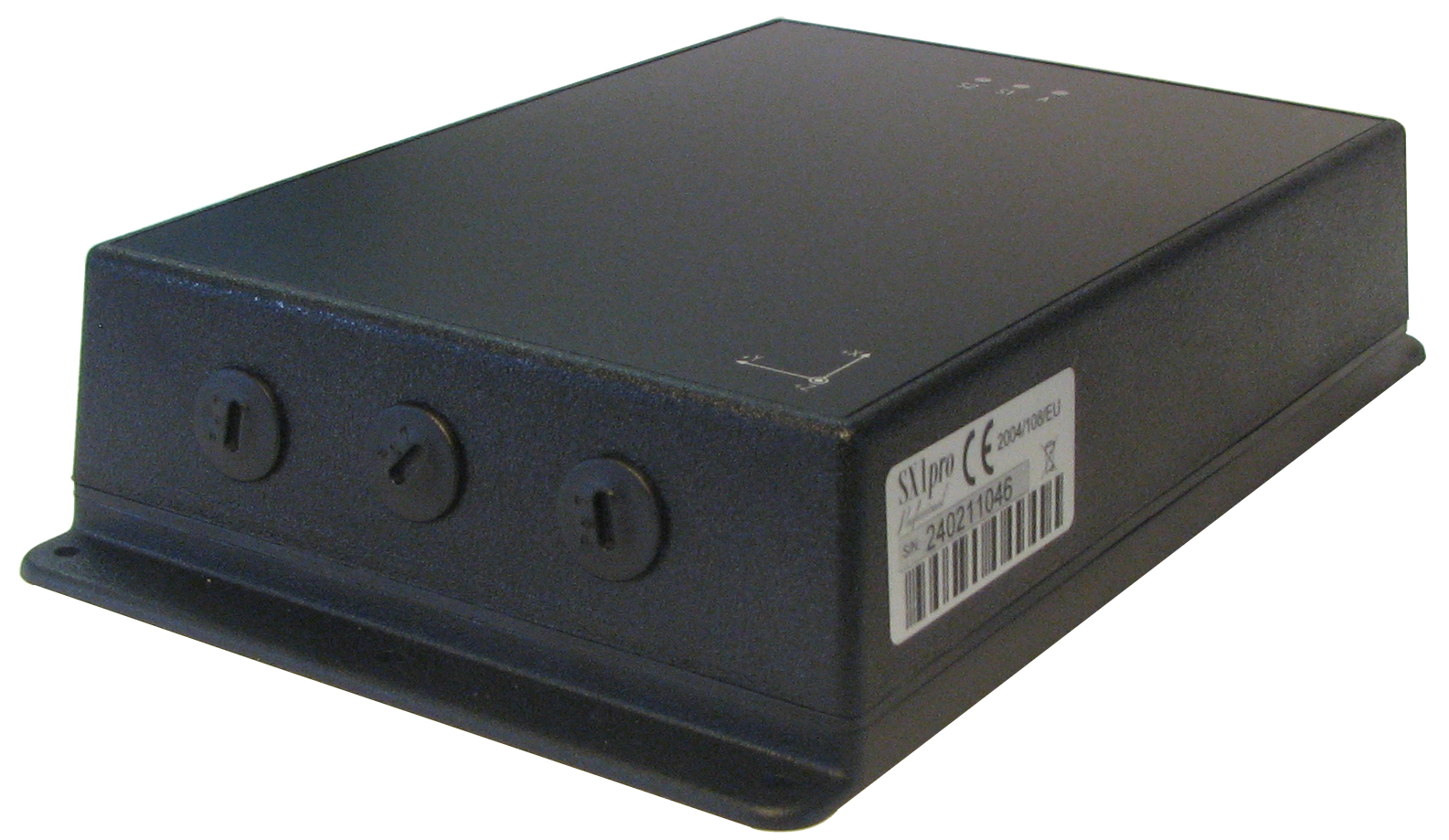

The
RTCU SX1 is a stand-alone
tracking, monitoring and data collection
device designed for applications, which
require extremely long operating time
without access to external power. Based
on the X32 generation of RTCU products
the SX1 series introduces zero-power
saving mode reducing the power
consumption in the deepest hibernation
mode to virtually nothing. This
state-of-the-art technology allows the
unit to operate as long as 10 years with
no external power!
The
RTCU SX1 is a compact tracking,
monitoring and data collection device
especially designed for stand-alone as
well as extremely long operating time in
harsh environments. The product is fully
integrated in an IP66 ingress-protected
ruggedized plastic box, that can
withstand years of operation. The
zero-power saving mode allows the unit
to enter power saving mode - waking up
on the on-board 3D accelerometer,
digital input change or after a certain
time period – and to stay in this mode
virtually forever only limited by the
battery technology in use!
The RTCU SX1 series
is available in versions for standard
GSM (RTCU SX1 pro) and railroad
based GSM-R (RTCU SX1 pro-r) for
advanced and reliable asset tracking in
a wide range of application segments.
The
RTCU SX1 series has support
for medium range wireless communication
using the ISM 868 MHz frequency band.
This feature allows implementation of
wireless sensors, RF-tracking and simple
remote key fob applications.
For usage in various
application scenarios there is no less
than four on-board battery
configurations available ranging up to a
massive 58 Ah non-rechargeable pack.
The RTCU SX1 series has on-board
antennas for GSM, GPS and ISM RF with an
optional feature to use external
antennas for longer range or for
specialized applications, where the unit
is installed in metal enclosures etc.
Switching back and forth from internal
to external GSM/ISM antennas can even be
controlled programmatically by the
application.
In addition to the
powerful features allowing long-term
autonomous operation the RTCU SX1 series
also offers the possibility to operate
from external power and has digital and
analog I/O as well as 1-wire and an RS232
port available for the most demanding
applications. For flexible external
interfacing the three PG7 blinds can be
substituted with PG7 glands for IP66
protected cable entry.
For RTCU SX1 series
has many other sophisticated features
such as: Micro SD-CARD with up to 32 GB
capacity and a 512 Kbyte internal flash
drive with a FAT32 compatible
file-system for easy sharing of files
locally and remotely with a PC/server.
The
RTCU SX1 series feature-list includes:
-
X32 generation platform sharing common features and code compatibility.
-
Huge
memory capacity with X32 Enhanced Memory
support.
-
Advanced
zero-power
saving mode with
virtually no power consumption.
-
Wake-up
from zero-power: accelerometer, digital
input, time and external power.
-
Integrated
battery power consumption measurement
circuit.
-
High
performance 16g 3-axis accelerometer /
movement sensor.
-
SX1 pro: Quad Band GSM support
(850/900/1800/1900 MHz).
-
SX1 pro-r:
Triple Band GSM-R (900/1800/1900 MHz),
-
GPRS Class 10 with full
RTCU Communication Hub support
-
Supports GSM features such as SMS/PDU/CSD/GPRS.
-
Full support for FTP and SMTP (email with attachment).
-
Support
for GSM SIM Chip.
-
SuperGPS
chipset with world-class performance and
2D/3D fix wake-up capability.
-
Internal
or external GSM quad-band antenna / GPS
antenna.
-
Medium
range ISM RF Transceiver (868 MHz) with
internal or external antenna.
-
Application
can switch between internal/external GSM
/ RF antennas.
-
Support
various for
RF add-on
modules.
-
Externally
/ internally visible system LED and user
LED. Internal DIP-switch.
-
Several
power-configurations supported:
o 58 Ah (nominal)
non-rechargeable battery. Height: 56 mm.
o 10 Ah (nominal) rechargeable battery. Height: 43 mm.
o 2 Ah (nominal) rechargeable battery. Height: 43 mm.
-
On-board
temperature sensor.
-
Dedicated
high-speed USB programming port.
-
Standard
RS232 Serial port.
- Micro SD-CARD reader with FAT
compatible file-system and up to 32 GB
capacity.
- Internal 512 KB Flash-Drive
with full FAT support.
-
2
digital inputs, 2 digital outputs and 2
analog inputs.
-
1-Wire
bus for connecting devices such as
ID-Button reader and
Temperature sensors.
-
Ruggedized IP66 classified plastic
encapsulation with mounting flange.
....many other
advanced features
Please read the Datasheet and Technical
manual below
Product
data sheet V1.12 (pdf)
RTCU
SX1 pro / pro-r technical manual V1.21 (pdf)
Declaration
of Conformity (DoC) (pdf)
|
.jpg) |
The
2 Megapixel Camera
for the
RTCU MX2 turbo
and
RTCU DX4 pro
extends the functionality of the RTCU
platform with the capability to take
high-resolution colour pictures in standard
JPEG format. The pictures taken can be transmitted over
the
network to
a server and/or saved to an SD-CARD file.
The
2 Megapixel Camera
supports implementation of applications
such as:
-
Remote monitoring of equipment,
devices, work areas and locations.
-
Vehicle, including
driver/passenger, monitoring.
-
Security applications.
-
Any event-trigger applications.
-
Stealth security applications.
-
....many other applications
where "a picture is worth a thousand words"...
The camera
connects directly to the RTCU unit and requires no
external power-supply. Delivered with 3 meter cable.
Product
data sheet V1.00 (pdf)
Technical
manual V1.00 (pdf)
|
.jpg) |
(The RTCU MX2 warp is available here)
The
RTCU MX2 turbo
2G/3G
has been designed for a broad variety
of advanced telemetry / telematics applications
and is made according to the highest technical
standards for professional automotive and
industrial use.
The
RTCU MX2 turbo
2G/3G
uses the
NX32 execution model
and is fully backward compatible with
the X32 execution model of the former RTCU MX2i
series. Existing software will therefore be able
to operate without any changes or costly
re-testing. Mechanically and electrically the
RTCU MX2 turbo
2G/3G is fully back-ward compatible with the
former RTCU MX2i pro and
constitutes therefore a direct plug-in
replacement.
The
RTCU MX2 turbo
2G/3G
is designed for a broad variety of advanced
telemetry / telematics applications and has been
designed according to the highest technical
standards for professional automotive and
industrial use. The product has all necessary
regulatory approvals – including 2004/104/EC /
UN ECE R10 – edition
5 and CE mark.
The positioning is enhanced
with a state-of-the-art GNSS receiver with
GPS, GALILEO, GLONASS and QZSS support.
RTCU MX2 turbo
2G/3G
technical highlights:
-
Based on
the
RTCU M2M Platform.
-
NX32
execution architecture:
o
RTCU IDE development tool with a full
featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
MODBUS, FMS/J1939, NMP/Garmin FMI.
o
Fully backward compatibility with existing X32
applications.
-
3G version:
UMTS
engine.
Backward compatible with 2G/2.5G.
-
2G version:
World-wide Quad-band GSM engine.
-
Internal
and external SIM-card reader selectable from
the application.
-
Digitized audio can be played over cellular or to an
external device.
-
DTMF
support for implementation of Interactive
Voice Response applications.
-
State-of-the
art
Multi-GNSS
positioning engine
with GPS,GLONASS,
GALILEO, QZSS.
-
High-performance
3-axis
accelerometer
with 16g scale.
-
Enhanced
memory sub-system with
fast program
execution.
-
Extended
flash memory with a capacity
of 7 MB (XF7).
-
Internal
8 MB FAT32 flash drive.
-
Standard
FAT32
SD-CARD
reader
with up to 32 GB capacity.
-
2
x RS232
channels and
1 x RS485
channel.
-
2 x analog inputs with 0..10 volt /
12 bit precision.
-
5
x digital inputs
and
4 x high-power
solid-state
digital
outputs.
-
MODBUS for
I/O extension or SCADA integration.
-
Full
CAN 2.0B
controller
with hardware filtering and multi-speed
support.
-
1-Wire
bus
for
accessories such as
ID-Button reader,
Temperature sensor,
etc.
-
Wide
operating range from
8..36 VDC.
-
External
power can be selectable enabled/disabled
by the application.
-
On-board
high-capacity
Li-Ion battery.
-
Advanced
power-management
with wake-up
on a wide range of events.
-
Hands-free
interface
with
microphone and Class-D audio speaker
amplifier.
-
High-speed
USB
programming/service cable.
-
Fully
supports the Professional Navigation and
Messaging device
PNM-220.
-
Supports
the
Garmin Fleet Management
Interface.
-
Fully
supported by the
RTCU Communication Hub
and the
RTCU
Deployment Server.
-
Accessories:
2 MP camera, and
the
MDT-200 terminal.
-
Exclusive
and durable
"GOLD"
aluminium
encapsulation.
-
Optional
Mounting Bracket Kit for easy "screw-on" installations
-
Alternative
front
end-cap with
protected SIM card reader.
For further information please refer to the
data sheet and the technical manual below.
Product
data sheet V3.10 (pdf)
Technical
manual V3.10 (pdf)
Declaration
of Conformity (DoC) (pdf)
|
 |
(The RTCU MX2 warp is available here)
The
RTCU MX2 encore
is
cost-efficient device based on the full powered
RTCU MX2 turbo. It has been
designed for a broad variety of advanced
telemetry / telematics applications and is made
according to the highest technical standards for
professional automotive and industrial use.
The
RTCU MX2
encore is based on the
top-of-the-line
RTCU MX2 turbo
with certain features carefully omitted for a
perfect balance between price and functionality.
The RTCU MX2
encore uses the next generation
NX32 execution
model
and is fully backward compatible with
the X32 execution model of the former RTCU MX2i series. Existing software will therefore be able
to operate without any changes or costly
re-testing. Mechanically and electrically the
RTCU MX2
encore
is back-ward compatible with the
RTCU MX2i eco+ and the
RTCU MX2i pro and
constitutes therefore
in most cases a direct plug-in
replacement.
The
RTCU
MX2 encore includes many sophisticated
standard features and can be further upgraded as
required with the following on-demand hardware
features:
CAN 2.0B:
CAN controller with
hardware filtering.
RS485:
RS485 channel with MODBUS and expandable I/O.
Internal SIM: Internal
SIM card reader. Int/ext. selectable by
application.
The
'Internal SIM card reader' option is
FREE and just
requires activation.
Options can
be applied on-demand even remotely by the unit
already installed in the field.
The
RTCU MX2
encore
is designed for a broad variety of advanced
telemetry / telematics applications and has been
designed according to the highest technical
standards for professional automotive and
industrial use. The product has all necessary
regulatory approvals – including 2004/104/EC /
UN ECE R10 – edition 3 and CE mark.
RTCU MX2 encore
technical highlights:
-
Based on
the
RTCU M2M Platform.
-
NX32
execution architecture:
o
RTCU IDE development tool with a full featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
MODBUS, FMS/J1939, NMP/Garmin FMI.
o
Fully backward compatibility with existing X32
applications.
-
World-wide
Quad-band GSM engine.
-
Internal and external SIM-card reader selectable from
the application.
-
Digitized
audio can be played over GSM or to an
external device.
-
DTMF
support for implementation of Interactive
Voice Response applications.
-
State-of-the
art
Multi-GNSS
positioning engine
with GPS,GLONASS,QZSS.
-
High-performance
3-axis
accelerometer
with 16g scale.
-
Enhanced
memory sub-system with
fast program
execution.
-
Extended
flash memory with a capacity
of 3 MB
.
-
Internal
4 MB FAT32 flash drive.
-
1
x RS232
channel.
-
2 x analog inputs with 0..10 volt /
12 bit precision.
-
5
x digital inputs
and
4 high-power
solid-state
digital
outputs.
-
1-Wire
bus
for
accessories
such as
ID-Button
reader,
Temperature
sensor,
etc.
-
Powerful
on-demand
hardware
options:
Full CAN 2.0B
controller
with
hardware
filtering
and
multi-speed
support.
RS485 channel with
MODBUS
and
expandable
I/O.
Internal SIM-card reader.
Active
reader
selectable
from the
app.
FREE!
-
On-demand
options
can be
applied
anytime
- even
remotely
after
installation.
-
Wide
operating range from
8..36 VDC.
-
External
power can be selectable enabled/disabled
by the application.
-
On-board
high-capacity
Li-Ion battery.
-
Advanced
power-management
with wake-up
on a wide range of events.
-
High-speed
USB
programming/service cable.
-
Supports
the
Garmin Fleet Management
Interface.
-
Fully
supported by the
RTCU Communication Hub
and the
RTCU
Deployment Server.
-
Accessories:
2 MP camera.
-
Exclusive
and durable
aluminium
encapsulation.
-
Optional
Mounting Bracket Kit for easy "screw-on" installations
-
Alternative
front
end-cap with
protected SIM card reader.
For further information please refer to the
data sheet and the technical manual below.
Product
data sheet V1.10 (pdf)
Technical
manual V1.10 (pdf)
Declaration
of Conformity (DoC) (pdf)
|
|
|
The
RTCU AX9 turbo
adds a new
chapter to the highly successful era of the RTCU
AX9i series offering a wide range of new
features and performance improvement - not only
due to the powerful
NX32 Execution
Architecture, but also with the addition
of on-board Ethernet and a 3G/HSDPA GSM engine. The
RTCU AX9 turbo
is designed according to the highest technical
standards for today's professional M2M telemetry
applications.
The
RTCU
AX9 turbo
is offering a long range of new features and
performance improvements, while still resting on
the proven track-record and confidence of the
RTCU AX9i series.
The
RTCU
AX9 turbo uses the next generation
NX32 execution model
and is fully
backward compatible with the X32 execution model. Existing software will therefore be able
to operate without any changes or costly
re-testing.
For
the most demanding
applications the
RTCU
AX9 turbo operates with
GSM
3G/HSDPA and
also offers
on-board
Ethernet
for the most
flexible
connectivity
options..jpg)
The
RTCU AX9 turbo
rests on the
RTCU M2M Platform,
that brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IIoT
applications.
RTCU AX9 turbo
technical highlights:
- Based on
the
RTCU M2M Platform.
-
NX32
execution architecture:
o RTCU IDE development tool with a full featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
MODBUS, Garmin FMI.
o Fully backward compatibility with existing X32
applications.
-
High-speed
3G/HSDPA GSM
engine.
Backward compatible with 2G/2.5G.
-
On-board Ethernet interface.
-
Medium range ISM band RF transceiver
with on-board antenna.
-
Internal
antenna and external GSM antenna connector. Application selectable.
-
Internal
SIM-card reader.
-
Digitized audio can be played over GSM.
-
DTMF
support for implementation of Interactive
Voice Response applications.
-
Enhanced
memory sub-system with
fast program
execution.
-
Huge
data-flash/logger memory with a capacity of
8.5 MB.
-
Internal
8 MB FAT32 flash drive.
-
Standard
FAT32
SD-CARD
reader
with up to 32 GB capacity.
-
2
x RS232
channels and
2 x RS485
channels.
-
4 x analog inputs with 0..10 volt / 0..20 mA with
12 bit precision.
-
4 x analog outputs with 0..10 volt / 0..20 mA.
-
5 x digital inputs and
4 x high-power relays.
-
Up to 4 digital inputs can be configured as
IEC62053-31 Class A compliant.
-
Expandable I/O with standard MODBUS modules.
-
1-Wire bus for accessories such as
ID-button reader,
temperature sensors, etc.
-
Wide AC/DC power operating range from
100..260VAC / 8..36 VDC.
-
External
DC power can be selectable enabled/disabled
by the application.
-
12/24 Volt DC-out capability for powering external equipment.
-
On-board
high-capacity
Li-Ion battery.
-
Advanced
power-management
with wake-up
on a wide range of events.
-
High-speed
mini-USB programming connector.
-
Intrusion detection.
-
Housed in a
ruggedized plastic encapsulation with cable glands.
-
IP65 water protected for outdoor usage.
-
Accessories:
MODBUS modules, and the
MDT-200.
-
Fully
supported by the
RTCU Communication Hub
and the
RTCU
Deployment Server.
A
complete range
of MODBUS I/O modules are offered by Logic IO for easy connection to the
RTCU
AX9 turbo
product. Please see the
MODBUS
I/O Modules section.
For further information please refer to the
data sheet and the technical manual below.
Product
data sheet V1.10 (pdf)
Technical
manual V1.03 (pdf)
Declaration
of Conformity (DoC) (pdf)
|
.jpg)
.JPG) |

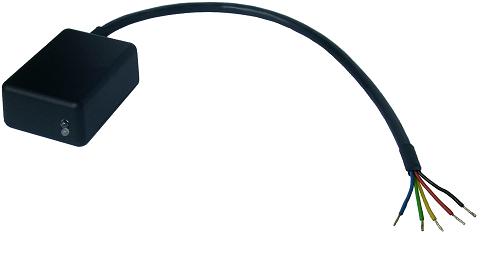

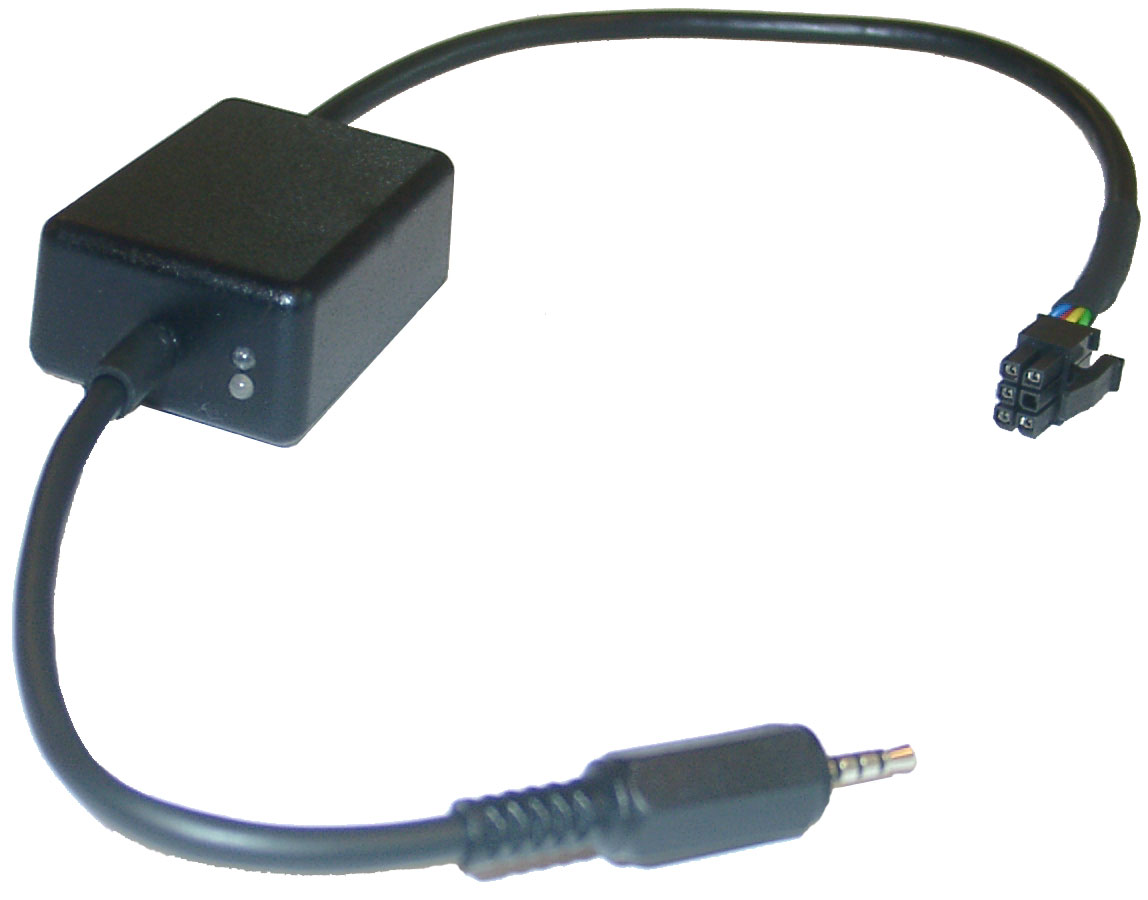

The Bluetooth Smart-antenna is an exciting
accessory for the RTCU MX2i pro / RTCU MX2 turbo / RTCU DX4 pro /
RTCU AX9 pro / RTCU AX9 turbo. It allows a wide group of
applications to be implemented. The Bluetooth Smart-antenna
supports the Serial Port Profile (SPP) and Hands-free Profile
Audio Gateway (HFP-AG). These profiles supports connection to a
wide range of devices, such as: PDA, Printer, Barcode reader,
RFID reader, headset and hands-free speakerphone.
The Bluetooth Smart-antenna is easy-to-use through the dedicated
functions in the RTCU IDE development software.
The Bluetooth Smart-antenna hands-free profile is fully
compatible with the Garmin Bluetooth hands-free feature!
The Bluetooth Smart-antenna are available in two versions for
the MX2 turbo and the
RTCU
AX9 turbo.
Product
data sheet V1.03 (pdf)
Technical
manual V1.07 (pdf)
|
.JPG)
.JPG) |

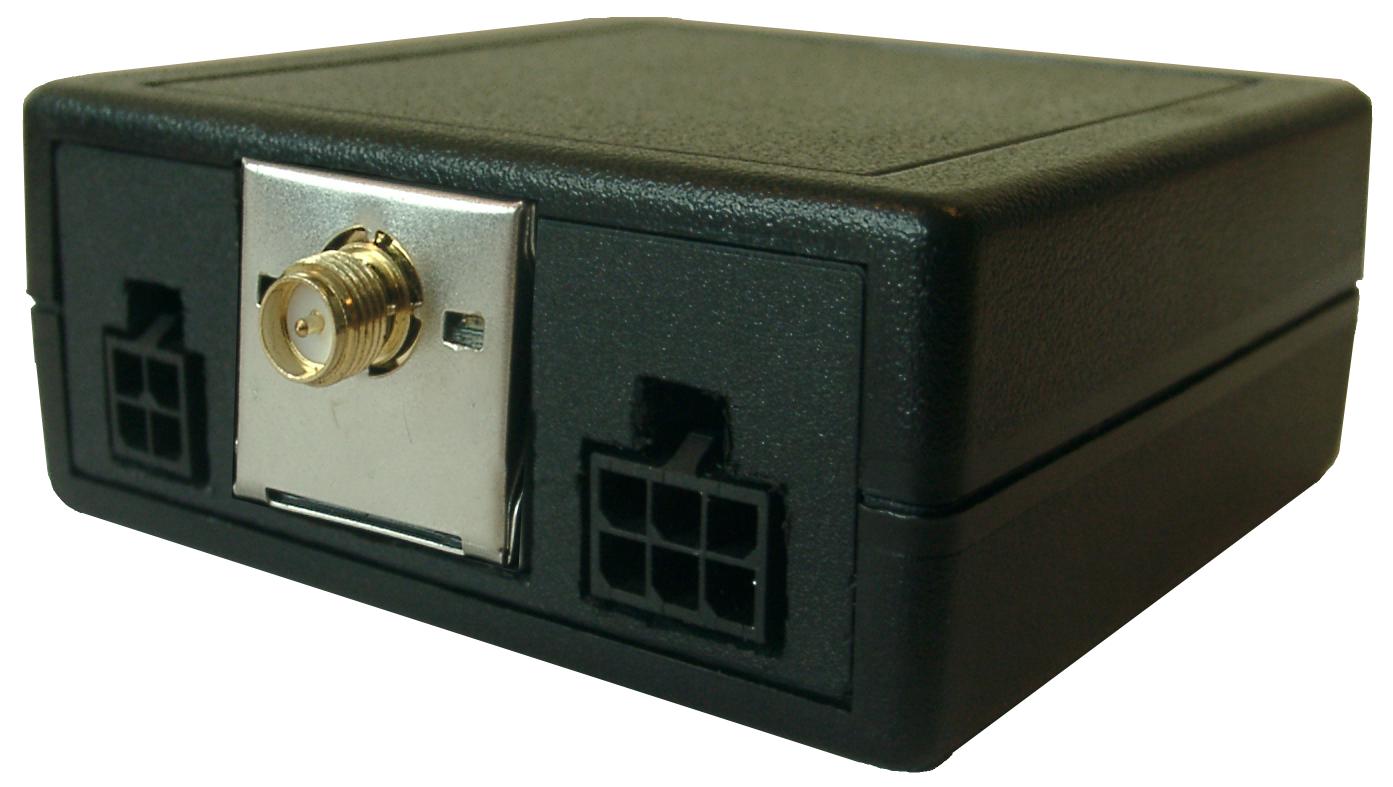

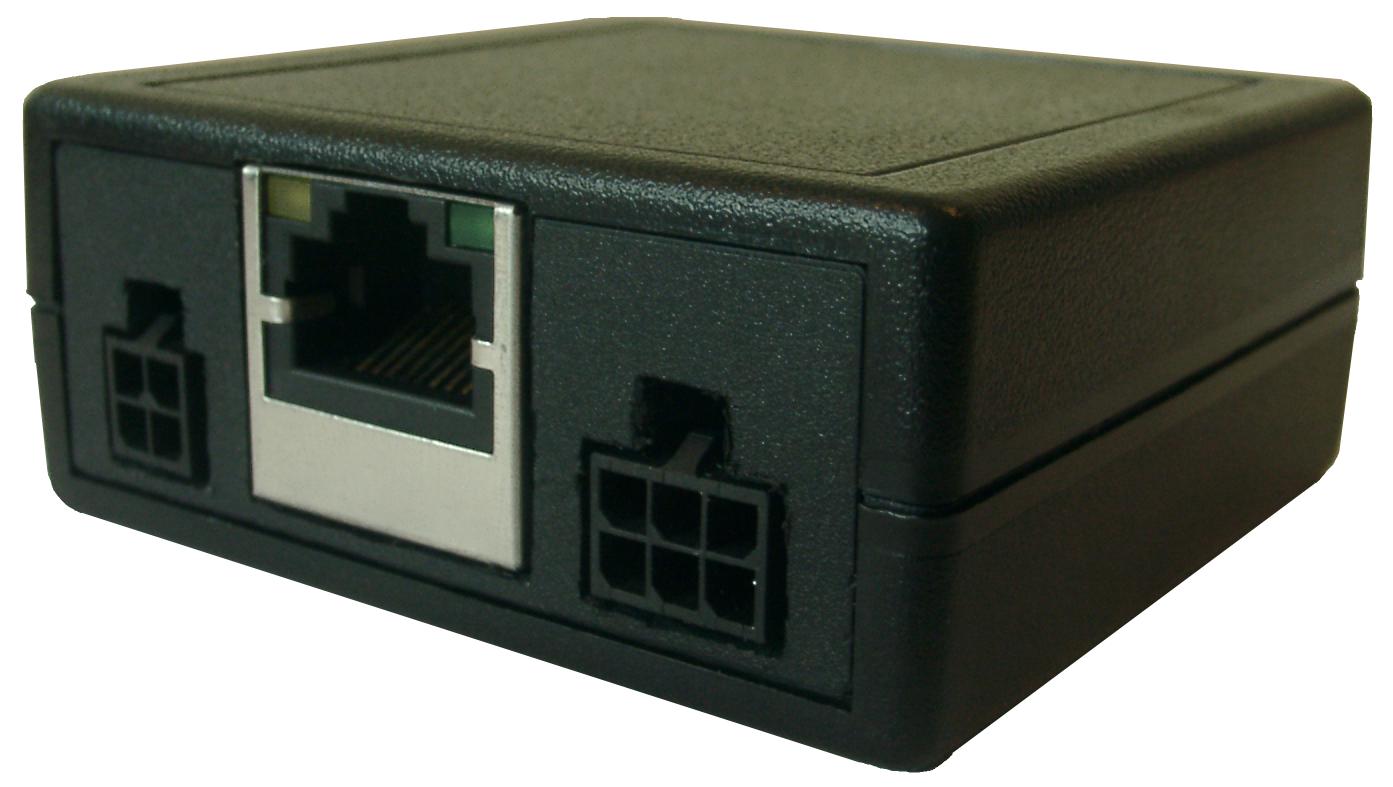

The ETH-100 add-on module allows connection to the
RTCU Gateway
Professional or to any TCP/IP socket enabled
device through a standard LAN or through an
increasing number of Wi-Fi hot-spots globally available. Using
(W)LAN in many cases means that large amount of data can be
transferred for FREE or at a very low cost. The WLAN-100 /
ETH-100 supplements mobile data and both communication methods can be
used selectable under full control of the VPL application.
The WLAN-100 supports connection
to a standard Wi-Fi access point and is supplied with the
necessary interface cable for the MX2 turbo or DX4 pro and a SMA
antenna.
The ETH-100 supports connection to a standard Ethernet 10/100
Mbps cable infrastructure and is supplied with the necessary
interface cable for the MX2 turbo or DX4 pro and a RJ45 patch
cable.
Advanced configuration is supported using an easy to use
web-based interface, where various parameters such as DHCP /
IP-address, net-mask and security parameters are
configured. Supports security using WEP, WPA and WPA2.
Product
data sheet V2.03 (pdf)
Technical
manual V2.13 (pdf)
|
%20(Custom).jpg) |
The
RTCU DX4i warp is a
member in the powerful RTCU DX4 series
offering a major boost in capacity and
performance. The product now hosts a large
4 MB internal flash drive, 4.5 MB of datalogger/persistent memory for the most
demanding M2M applications. The product
uses the powerful "hardware
on-demand" concept where actual
hardware features can be added whenever needed.
The RTCU DX4i warp
is 100% backward compatible with the former
RTCU DX4
flex.
 The RTCU DX4i warp
has been designed from the ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
powerful communication interfaces.
Housed in a
standard DIN-rail encapsulation it is a perfect
component for automation and control
applications.
The
on-board I/O system can be expanded almost
indefinitely and completely transparently by
adding external MODBUS compatible I/O modules.
This unique I/O expansion capability, combined
with the ability to operate as a MODBUS master
and slave simultaneously, positions the
RTCU DX4i warp
as the perfect product for SCADA-like
applications.
The
RTCU DX4i warp
is based on the X32 Execution Architecture
offering high performance along with a large
memory capacity for both program and data -
meeting the requirements of today’s most
demanding and sophisticated M2M/IoT
applications.
The RTCU
DX4i warp include many sophisticated
standard features and can be further upgraded as
required with the following on-demand hardware
features:
DIO option:
8 x digital inputs, 8 x digital outputs
(total).
AIO option:
4 x analog input (total) and 4 x
analog output(total).
COM option: RS485/MODBUS and 1-Wire interface.
FREE!
The
'COM' option is FREE
and just requires activation.
Options can
be applied on-demand even remotely by the unit
already installed in the field.
The RTCU
DX4i warp rests on the
RTCU M2M Platform, that brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IoT
applications.
RTCU DX4i warp
technical highlights:
-
Based on
the
RTCU M2M Platform.
-
X32
execution architecture:
o
RTCU IDE development tool with a full featured device emulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
MODBUS.
-
World-wide Quad-band GSM engine.
-
Internal SIM-card reader.
-
Large data-flash/logger memory with a capacity of 4.5 MB.
-
Internal 4 MB FAT32 flash drive.
-
1 x RS232 channel / programming port.
-
5 x digital inputs and 3 x high-power solid-state digital outputs.
-
2 x analog inputs with 0..10 volt / 0..20 mA.
-
2 x analog outputs with 0..10 volt / 0..20 mA.
-
Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
Powerful on-demand hardware options:
Digital I/O option: 8 x digital inputs and 8 x digital outputs (total).
Analog I/O option: 4 x analog inputs and 4 x analog outputs (total).
Communication option: RS485/MODBUS and 1-Wire support. FREE!
Expandable I/O with standard MODBUS modules.
1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
Wide operating range from 8..36 VDC.
On-board Li-Ion battery.
Advanced power-management with wake-up on a wide range of events.
High-speed
USB
programming/service cable.
Housed in an industry standard M36 DIN compliant encapsulation.
Two-part pluggable connectors for easy installation and maintenance.
Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
Please read the Datasheet and Technical
manual below
Product
data sheet V1.00 (pdf)
Technical
manual V1.02 (pdf)
Declaration
of Conformity
|
|
|
(The RTCU CX1 warp mk2 is available here)
The
RTCU CX1 warp series is
a new members in the powerful RTCU CX1 series
offering unprecedented performance and flexibility.
Available in just two variants taking advantage of the powerful "hardware
on-demand" where options can be applied any time - even remotely after installation!
The RTCU CX1 warp series are compact, waterproof and ruggedized telematics tracking and control devices, based on the powerful X32-architecture. The series sports a long list of standard features and can be further upgraded when required with powerful on-demand hardware options.
The RTCU CX1 warp series are available in two versions:
-
RTCU CX1 warp
With RS232/FMI and 1-wire, but no CAN bus.
-
RTCU CX1 warp-c
With CAN bus, but no RS232/FMI or 1-wire.
Except for the differences list above the two RTCU CX1 warp variants are identical.
The RTCU CX1 warp series is designed for a broad variety of advanced telemetry / telematics applications and has been manufactured according to the highest technical standards for professional automotive and industrial use. The product has all necessary regulatory approvals – including 2004/104/EC / UN ECE R10 and CE mark.
The RTCU CX1 warp series include many sophisticated standard features and can be further upgraded as required with the following on-demand hardware features:
I/O: 2 x digital inputs, 2 x digital outputs and 1 x analog input (total).
RF: Medium range ISM band RF transceiver with on-board antenna.
COM: RS232/FMI and 1-Wire bus (warp) or CAN (warp-c).
FLASH: Micro-SD card reader and 3 MB extended flash. FREE!
The 'FLASH' option is FREE and just requires activation.
Options can be applied on-demand even remotely by the unit already installed in the field.
The RTCU CX1 warp series rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IoT applications.
RTCU CX1 warp series
technical highlights:
-
Based on the
RTCU M2M Platform.
-
X32
execution architecture:
o
RTCU IDE development tool with a full
featured device simulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
FMS/J1939, Garmin FMI.
-
World-wide Quad-band GSM engine.
-
Internal SIM-card readers.
-
State-of-the art SuperGPS positioning engine.
-
High-performance 3-axis accelerometer with 16g scale.
-
Large data-flash/logger memory with a capacity of 4.5 MB.
-
Internal 4 MB FAT32 flash drive.
-
1 x digital inputs and 1 x high-power solid-state digital output (upgradeable).
-
Wide operating range from 8..36 VDC.
-
On-board Li-Ion battery.
-
Advanced power-management with wake-up on a wide range of events.
-
High-speed Mini-USB programming connector.
-
Support the Garmin Fleet Management Interface.
-
Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
-
Available in two powerful hardware versions:
RTCU CX1 warp (RS232/1-wire)
RTCU CX1 warp-c (CAN)
-
Ruggedized IP66 plastic encapsulation.
-
Delivered a 50 cm interface cable.
-
Powerful on-demand hardware options:
I/O: 2 x digital inputs, 2 x digital outputs and 1 x analog input (total).
RF: Medium range ISM band RF transceiver with on-board antenna.
FLASH: Micro SD card reader and 3 MB extended flash. FREE!
COM: RS232/FMI and 1-Wire bus (warp) or CAN (warp-c).
-
On-demand options can be applied anytime — even remotely after installation
-
1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
....many other
advanced features
Please read the Datasheet and Technical
manual below
RTCU
CX1 warp series
data sheet V1.02 (pdf)
RTCU
CX1 warp technical manual V1.02 (pdf)
Declaration
of Conformity
|
|
|
.jpg) The
RTCU AX9i pro
has been designed from the ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
multiple communication interfaces such as: dual
RS232, dual RS485, 1-Wire and USB. For
world-wide usage in any network environment the
RTCU AX9i pro
offers a full quad-band GSM engine with a
switchable dual antenna design supporting both
an on-board as well as an external GSM antenna.
The on-board I/O system can
be expanded almost indefinitely and completely
transparently by adding external MODBUS
compatible I/O modules. This unique I/O
expansion capability, combined with the ability
to operate as a MODBUS master and slave
simultaneously, positions the
RTCU AX9i pro
as the perfect product for SCADA-like
applications.
The
RTCU AX9i pro
is based on the X32 Execution Architecture
offering high performance along with a large
memory capacity for both program and data -
meeting the requirements of today’s most
demanding and sophisticated M2M/IoT
applications.
The
RTCU AX9i pro
rests on the
RTCU M2M Platform, that brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IoT
applications.
RTCU AX9i pro
technical highlights:
-
Based on the
RTCU M2M Platform.
-
X32 execution architecture:
o
RTCU IDE development tool with a full featured device simulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS.
-
World-wide Quad-band GSM engine.
-
Internal and external antenna connector. Selectable from application
-
Medium range ISM band RF transceiver with on-board antenna.
-
Internal SIM-card reader.
-
Digitized audio can be played over GSM.
-
DTMF support for implementation of Interactive Voice Response applications.
-
Large data-flash/logger memory with a capacity of 4.5 MB.
-
Internal 4 MB FAT32 flash drive.
-
Standard FAT32 Micro SD-CARD reader with up to 32 GB capacity.
-
2 x RS232 channels and 2 x RS485 channels.
-
4 x analog inputs with 0..10 volt / 0..20 mA with 12 bit precision.
-
4 x analog outputs with 0..10 volt / 0..20 mA.
-
5 x digital inputs and 4 x high-power relays.
-
Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
-
Expandable I/O with standard MODBUS modules.
-
1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
-
Wide AC/DC power operating range from 85..265VAC / 8..36 VDC.
-
On-board high-capacity Li-Ion battery.
-
Advanced power-management with wake-up on a wide range of events.
-
High-speed USB programming connector.
-
Housed in a ruggedized plastic encapsulation with cable glands.
-
IP65 water protected for outdoor usage.
-
Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
-
Accessories: MODBUS modules, Wi-Fi, Ethernet, Bluetooth and MDT-200.
....many
other advanced features
Please read the
datasheet and technical manual below
A complete range
of MODBUS I/O
modules are
offered by Logic
IO for easy
connection to
the
RTCU AX9i pro
product. Please
see the
MODBUS I/O
Modules
section.
....many
other advanced
features
Please read the
Datasheet and
Technical manual
below
Product
data sheet V1.00 (pdf)
Technical
manual V1.01 (pdf)
Declaration
of Conformity
-- Ordering codes:
SKU RT-AX9IP
RTCU AX9i pro
|
|
|
The
RTCU DX4i pro
has been superseded by the
RTCU DX4i pro mk2.
Technical
manual V1.00 (pdf)
Declaration
of Conformity
|
.jpg) |

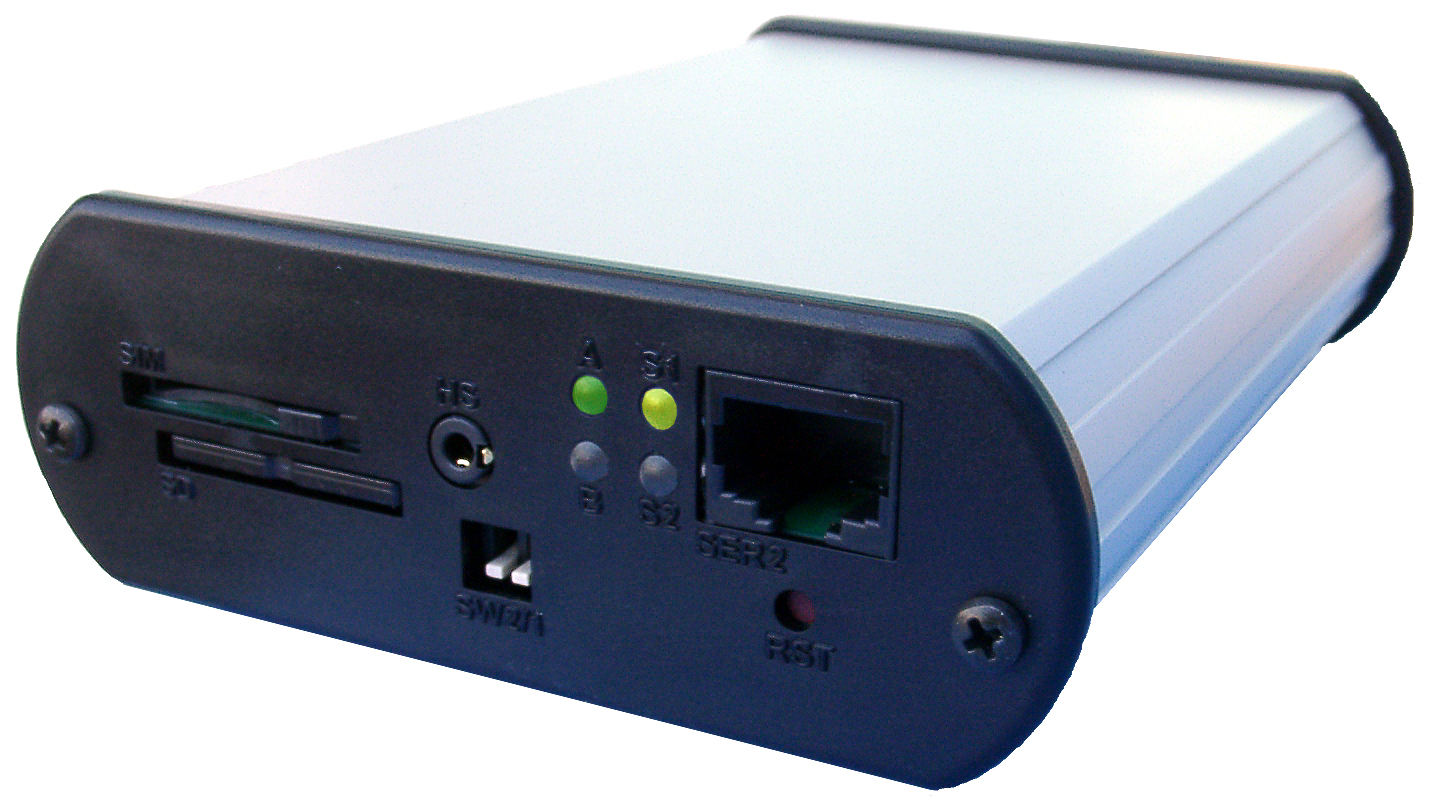

The RTCU MX2i pro/pro+ is a
powerful product especially suited for mobile
tracking applications with its on-board
ultra high
sensitivity 66-channels SuperGPS-receiver and advanced power-management
features. The unit is fully supported by the RTCU IDE development tool and is fully back-ward
compatible with previous generation of RTCU
units.
The RTCU MX2i pro/pro+ feature-list includes:
-
100%
software compatible with all current and
past RTCU units!
- Huge
memory capacity with X32 Enhanced Memory
support
-
Standard SD-CARD reader with FAT
compatible file-system for PC-compatibility
-
Internal 512 KB Flash-Drive
with full FAT support
-
5 Digital inputs, 4 Digital
high-side solid state outputs and 2 analog inputs
-
Full CAN 2.0B controller with
hardware filtering
-
2 Serial ports.
Optional RS485 support (shared with
programming port)
-
Full
MODBUS SLAVE support for SCADA
integration or I/O slave module.
- Full
MODBUS MASTER support for easy I/O
extension capability.
-
1-Wire bus for connecting
devices such as ID-Button reader and
Temperature sensor
-
Quad Band GSM support
(850/900/1800/1900 Mhz)
-
Voice/DTMF interaction support
- Supports GSM features such as SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
-
GPRS Class 10 with full
RTCU Gateway 2 support
-
Ultra
high-sensitivity low-power 66-channels
SuperGPS
receiver.
-
On-board high capacity Li-Ion
battery (1900 mAh)
-
Vibration sensor with adjustable
sensitivity
-
Temperature sensor
-
Piezo Buzzer for audible
notification
-
Nokia compatible headset
connector
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Vibration, Timeout, GSM-, CAN- or
RS232-activity
-
Sleek
aluminium design with black
end-caps.
-
Highly expandable:
Bluetooth Smartantenna,
Camera module,
Mobile Data Terminal
WiFi and Ethernet.
-
Supports the
Garmin Fleet Management / Navigation
Interface.
-
Optional
Mounting Bracket Kit for easy "screw-on" installations
-
Alternative front
end-cap with hidden SIM card reader.
-
MX2i pro+
adds 8 MByte
of persistent memory for data-intensive applications.
....many other
advanced features
Please read the Datasheet and Technical
manual below
Product
data sheet V2.12 (pdf)
Technical
manual V2.11 (pdf)
Declaration
of Conformity
|
.jpg) |

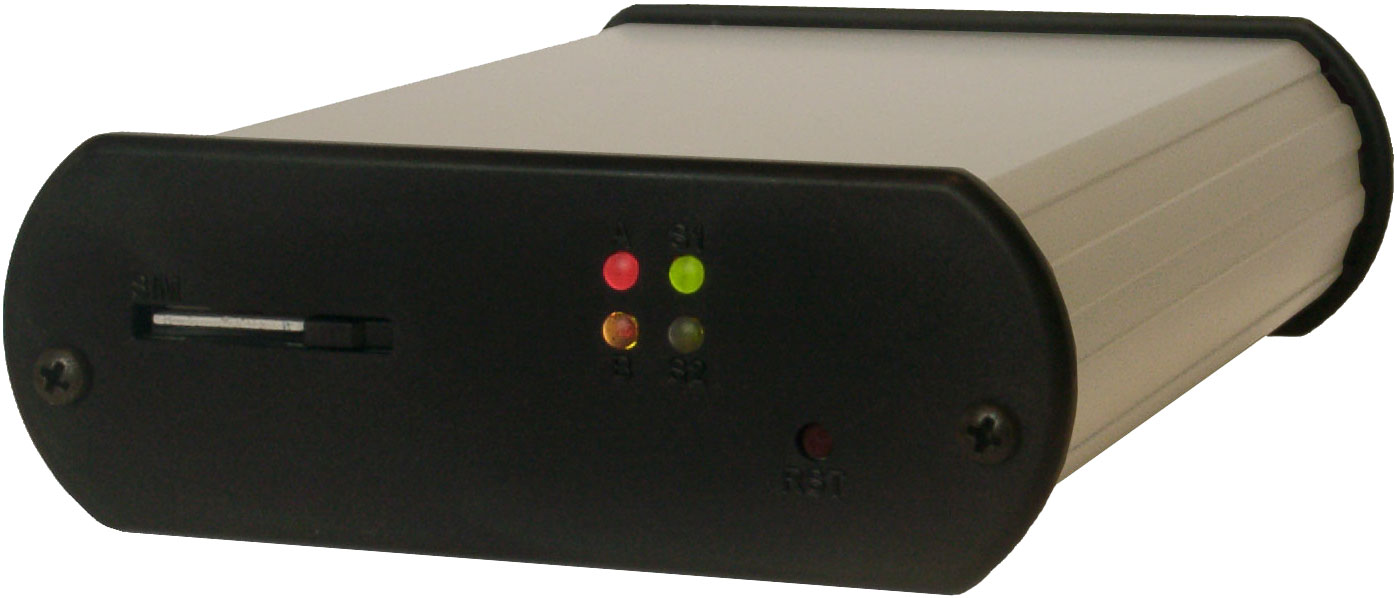

The
RTCU MX2i eco+
is the economical choice based on the full
powered MX2i pro.
Compared to the full
powered MX2i pro the
RTCU MX2i eco+ has a reduced feature set,
but still maintains crucial core functionality
such as a high-capacity battery, 1-wire support,
full I/O capabilities and support for X32
enhanced memory for extremely huge programs.
Fully
supported by the RTCU IDE development tools and
is of course fully backward compatible.
The RTCU MX2i eco+ feature-list includes:
-
100%
software compatible with all current and
past RTCU units!
-
Huge memory
capacity with X32 Enhanced Memory
support
-
Internal
512 KB Flash-Drive with full FAT support
-
5 Digital inputs, 4 Digital
high-side solid state outputs and 2 analog inputs
-
1 Serial port.
Optional RS485 support (shared with
programming port)
-
Full
MODBUS SLAVE support for SCADA
integration or I/O slave module.
- Full
MODBUS MASTER support for easy I/O
extension capability.
-
1-Wire bus for connecting
devices such as ID-Button reader and
Temperature sensor
-
Quad Band GSM support
(850/900/1800/1900 Mhz)
-
GPRS Class 10 with full
RTCU Gateway 2 support
- Supports GSM features such as SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
-
Ultra
high-sensitivity low-power 66-channels
SuperGPS
receiver.
-
On-board high capacity Li-Ion
battery (1900 mAh)
-
Vibration sensor with adjustable
sensitivity
-
Temperature sensor
-
Advanced
power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Vibration, Timeout, GSM-, or
RS232-activity
-
Sleek
aluminium design with black
end-caps.
-
Expandable:
Mobile Data Terminal
-
Optional
Mounting Bracket Kit for easy "screw-on" installations
-
Alternative
front end-cap with hidden SIM card
reader.
-
Upgradeable
to full Garmin
Navigation support.
....many other
advanced features
Please read the Datasheet and Technical
manual below
Product
data sheet V1.21 (pdf)
Technical
manual V1.10 (pdf)
Declaration
of Conformity
|
|
|
The
RTCU AX9 pro
has been designed from the ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
multiple communication interfaces such as: dual
RS232, RS485, 1-Wire and USB. For world-wide
usage in any network environment the
RTCU AX9 pro
offers a full quad-band GSM engine with on-board
GSM chip antenna.
The on-board I/O system can
be expanded almost indefinitely and completely
transparently by adding external MODBUS
compatible I/O modules. This unique I/O
expansion capability, combined with the ability
to operate as a MODBUS master and slave
simultaneously, positions the
RTCU AX9 pro as
the perfect product for SCADA-like applications.
The
RTCU AX9 pro
is based on the X32 Execution Architecture
offering high performance along with a large
memory capacity for both program and data -
meeting the requirements of today’s most
demanding and sophisticated M2M/IoT
applications.
The
RTCU AX9 pro
rests on the
RTCU M2M Platform which brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IoT
applications.
RTCU AX9 pro
technical highlights:
-
Based on
the
RTCU M2M Platform.
-
X32
execution architecture:
o
RTCU IDE development tool with full
a featured device simulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS.
-
World-wide Quad-band GSM engine.
-
Internal high-performance GSM Quad band chip-antenna.
-
Medium range ISM band RF transceiver with on-board antenna.
-
Internal SIM-card reader.
-
Digitized audio can be played over GSM.
-
DTMF support for implementation of Interactive Voice Response applications.
-
Data-flash/logger memory with a capacity of 1 MB.
-
Internal 512 KB FAT32 flash drive.
-
Standard FAT32 Micro SD-CARD reader with up to 32 GB capacity.
-
2 x RS232 channels and 1 x RS485 channel.
-
4 x analog inputs with 0..10 volt / 0..20 mA with 10 bit precision.
-
4 x analog outputs with 0..10 volt / 0..20 mA.
-
5 x digital inputs and 4 x high-power relays.
-
Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
-
Expandable I/O with standard MODBUS modules.
-
1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
-
Wide AC/DC power operating range from 85..265VAC / 8..36 VDC.
-
On-board high-capacity Li-Ion battery.
-
Advanced power-management with wake-up on a wide range of events.
-
High-speed USB programming connector.
-
Housed in a ruggedized plastic encapsulation with cable glands.
-
IP67 water protected for outdoor usage.
-
Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
-
Accessories: MODBUS modules, Wi-Fi, Ethernet, Bluetooth and MDT-200.
....many
other advanced features
Please read the datasheet and
technical
manual below
A
complete range
of MODBUS I/O modules are offered by Logic IO for easy connection to the
RTCU
AX9 pro
product. Please see the MODBUS
I/O Modules section.
Product
data sheet V1.05 (pdf)
Technical
manual V1.20 (pdf)
Declaration
of Conformity
|
|
|
The
RTCU AX9i eco
is
cost-efficient device based on the full powered
RTCU AX9i pro. It has been
designed for a broad variety of advanced
telemetry applications and is made
according to the highest technical standards for
professional automotive and industrial use.
.jpg) The
RTCU AX9i eco
has been designed from the ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
multiple communication interfaces such as:
RS232, 1-Wire and USB. For world-wide usage in
any network environment the
RTCU AX9i eco
offers a full quad-band GSM engine with a
switchable dual antenna design supporting both
an on-board as well as an external GSM antenna.
The RTCU AX9i eco
is based on the X32 Execution Architecture
offering high performance along with a large
memory capacity for both program and data -
meeting the requirements of today’s most
demanding and sophisticated M2M/IoT
applications.
The
RTCU AX9i eco
rests on the
RTCU M2M Platform, that brings all the
necessary tools together to develop, implement
and maintain today’s sophisticated M2M/IoT
applications.
RTCU AX9i eco
technical highlights:
-
Based on
the
RTCU M2M Platform.
-
X32
execution architecture:
o
RTCU IDE development tool with a full
featured device simulator.
o Huge standard API with more than 800+ functions.
o Comprehensive protocol support, including:
TCP-UDP/IP, FTP, SMTP, RACP, MQTT,
MODBUS.
-
World-wide Quad-band GSM engine.
-
Internal and external antenna connector. Selectable from application
-
Internal SIM-card reader.
-
Digitized audio can be played over GSM.
-
DTMF support for implementation of Interactive Voice Response applications.
-
Large data-flash/logger memory with a capacity of 4.5 MB.
-
Internal 4 MB FAT32 flash drive.
-
1 x RS232 channel.
-
2 x analog inputs with 0..10 volt / 0..20 mA with 12 bit precision.
-
5 x digital inputs and 4 x high-power relays.
-
Up to 4 digital inputs can be configured as IEC62053-31 Class A compliant.
-
1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
-
Wide AC/DC power operating range from 85..265VAC / 8..36 VDC.
-
On-board Li-Ion battery.
-
Advanced power-management with wake-up on a wide range of events.
-
High-speed USB programming connector.
-
Housed in a ruggedized plastic encapsulation with cable glands.
-
IP65 water protected for outdoor usage.
-
Fully supported by the RTCU Gateway 2 and the RTCU Deployment Server.
....many other
advanced features
Please read the Datasheet and Technical
manual below
Product
data sheet V1.00 (pdf)
Technical
manual V1.01 (pdf)
Declaration
of Conformity
|
|
|
The
RTCU CX1i pro/pro+ is a compact,
waterproof and ruggedized telematic
tracking and control platform, based on
the powerful X32-architecture also found
in the popular MX2i Series. In addition
to a long list of standard features, the
RTCU CX1i pro/pro+ sports a state-of-the-art
66-channels SuperGPS receiver with
unprecedented performance.
Unique
features includes an advanced
3D-movement sensor and wireless RF
transceiver.
The RTCU CX1i pro/pro+
product is a worthy member of a
growing number of advanced
telemetry/telematic products all
based on the proven and powerful
X32-architecture.
The RTCU CX1i pro/pro+ is
specifically based on the
popular RTCU MX2i series and is
100% software compatible with
all other X32 based devices from
Logic IO.
The unique features of the
RTCU CX1i pro/pro+ includes
a 3D-movement sensor supporting
a range of new applications such
as detailed driving behaviour and
even crash detection. The
RTCU CX1i pro/pro+ has
support for medium range
wireless communication using the
ISM 868 Mhz frequency band. This
feature allows implementation of
wireless I/O, RF-tracking and
simple remote key fob
applications.
There is on-board Li-Ion
battery for uninterrupted
operation during power-fail.
The ISM RF antenna is on-board
and internal to the device, and
the unit is delivered
pre-mounted with a 50 cm
interface cable with power, I/O,
1-wire, and RS232 signals
easily accessible. For the most
flexible installation the
RTCU CX1i pro/pro+ is
factory delivered with an
external high-performance
waterproof magnet GPS antenna
and a small waterproof
thumb-sized GSM antenna already
installed. Everything necessary
to install the device is
therefore included in the box,
so the total cost of the device
deployment is effectively
reduced to a minimum.
The RTCU CX1i pro/pro+ is
housed in a highly ruggedized
IP66 waterproof encapsulation,
which allows a new spectrum of
applications to be realized due
to the new installation
possibilities.
The RTCU CX1i pro/pro+
offers many other sophisticated
features such as: Micro SD-CARD
with up to 8 GB capacity and a
512 Kbyte
internal flash drive
with a
FAT32 compatible file-system for
easy sharing of files locally
and remotely with a PC/Server.
The RTCU
CX1i pro/pro+ is of course
fully programmable using the
user-friendly Integrated
Development Environment (RTCU
IDE) running under Windows. In
this environment
the complete application
is developed, simulated and
finally transferred to the unit
via a standard USB port or
remotely by using GPRS or CSD (Datacall).
The
RTCU CX1i pro/pro+ has
RS232 interface with full Fleet management / Garmin FMI support.
The
RTCU CX1i pro/pro+ feature-list includes:
- 100%
software compatible
with all current and past RTCU units!
- Huge
memory capacity with X32 Enhanced Memory
support.
-
High
performance 16g 3-axis accelerometer /
movement sensor.
-
On-board
medium range ISM 868 Mhz RF transceiver
with antenna.
-
Support
various for RF add-on
modules.
- Micro SD-CARD reader with FAT
compatible file-system and up to 32 GB
capacity.
- Internal 512 KB Flash-Drive
with full FAT support.
- Large
Dataflash for datalogging / parameters:
512 KB for the RTCU CX1i pro and 4512 KB for the RTCU CX1i pro+.
- 2 Digital inputs,
2 Digital high-side solid state outputs
and 1 analog inputs.
-
Standard RS232 port.
- Support
for modular 1-wire
such as temperature
and ID-button reader.
-
Dedicated
high-speed USB programming port.
- Quad Band GSM support
(850/900/1800/1900 Mhz)
- GPRS Class 10 with full
RTCU Gateway 2 support
- Supports GSM features such as SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
- Ultra
high-sensitivity low-power 66-channels
SuperGPS
receiver.
-
On-board high capacity Li-Ion battery
(1000 mAh)
- Temperature sensor
- Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input,
Movement, Timeout, GSM or
RS232 activity.
-
Supports the Garmin Fleet Management / Navigation Interface and
the Mobile Data Terminal.
-
Pre-mounted
with 50 cm interface cable with all
signals easily available.
-
Pre-mounted
with a standard small 'thumb' size GSM
antenna and a very
compact magnet GPS antenna with 1.5 meter cable.
-
Compact
ruggedized IP66 classified plastic
encapsulation with mounting flange.
-
E1 automotive approval.
....many other
advanced features
Please read the Datasheet and Technical
manual below
RTCU
CX1i pro/pro+ product
data sheet V3.00 (pdf)
RTCU
CX1i pro/pro+ technical manual V3.00 (pdf)
Declaration
of Conformity
|
|
|
The
RTCU CX1 pro-c is a compact,
waterproof and ruggedized telematic
tracking and control platform, based on
the powerful X32-architecture also found
in the popular MX2i Series. In addition
to a long list of standard features, the
RTCU CX1 sports a state-of-the-art
66-channels SuperGPS receiver with
unprecedented performance.
Unique
features includes an advanced
3D-movement sensor and wireless RF
transceiver.
The RTCU CX1 pro-c
product is a worthy member of a
growing number of advanced
telemetry/telematic products all
based on the proven and powerful
X32-architecture.
The RTCU CX1 pro-c is
specifically based on the
popular RTCU MX2i series and is
100% software compatible with
all other X32 based devices from
Logic IO.
The unique features of the
RTCU CX1 pro-c includes
a 3D-movement sensor supporting
a range of new applications such
as detailed driving behavior and
even crash detection. The
RTCU CX1 pro-c has
support for medium range
wireless communication using the
ISM 868 Mhz frequency band. This
feature allows implementation of
wireless I/O, RF-tracking and
simple remote key fob
applications.
There is on-board Li-Ion
battery for uninterrupted
operation during power-fail.
The ISM RF antenna is on-board
and internal to the device, and
the unit is delivered
pre-mounted with a 50 cm
interface cable with power, I/O
CAN bus signals
easily accessible. For the most
flexible installation the
RTCU CX1 pro-c is
factory delivered with an
external high-performance
waterproof magnet GPS antenna
and a small waterproof
thumb-sized GSM antenna already
installed. Everything necessary
to install the device is
therefore included in the box,
so the total cost of the device
deployment is effectively
reduced to a minimum.
The RTCU CX1 pro-c is
housed in a highly ruggedized
IP66 waterproof encapsulation,
which allows a new spectrum of
applications to be realized due
to the new installation
possibilities.
The RTCU CX1 pro-c
offers many other sophisticated
features such as: Micro SD-CARD
with up to 8 GB capacity and a
512 Kbyte
internal flash drive
with a
FAT32 compatible file-system for
easy sharing of files locally
and remotely with a PC/Server.
The RTCU
CX1 pro-c is of course
fully programmable using the
user-friendly Integrated
Development Environment (RTCU
IDE) running under Windows. In
this environment
the complete application
is developed, simulated and
finally transferred to the unit
via a standard USB port or
remotely by using GPRS or CSD (Datacall).
The
RTCU CX1 pro-c offes a full
CAN 2.0B interface, but lacks the RS232 channel
and the 1-wire interface as offered on the
RTCU CX1i pro.
The
RTCU CX1 pro-c feature-list includes:
- 100%
software compatible
with all current and past RTCU units!
- Huge
memory capacity with X32 Enhanced Memory
support.
-
High
performance 16g 3-axis accelerometer /
movement sensor.
-
On-board
medium range ISM 868 Mhz RF transceiver
with antenna.
-
Support
various for RF add-on
modules.
- Micro SD-CARD reader with FAT
compatible file-system and up to 32 GB
capacity.
- Internal 512 KB Flash-Drive
with full FAT support.
- 2 Digital inputs,
2 Digital high-side solid state outputs
and 1 analog inputs.
-
Full CAN 2.0B controller with
hardware filtering
-
Dedicated
high-speed USB programming port.
- Quad Band GSM support
(850/900/1800/1900 Mhz)
- GPRS Class 10 with full
RTCU Gateway 2 support
- Supports GSM features such as SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
- Ultra
high-sensitivity low-power 66-channels
SuperGPS
receiver.
-
On-board high capacity Li-Ion battery
(1000 mAh)
- Temperature sensor
- Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Movement,
Timeout, GSM or CAN activity.
-
Pre-mounted
with 50 cm interface cable with all
signals easily available.
-
Pre-mounted
with a standard small 'thumb' size GSM
antenna and a very
compact magnet GPS antenna with 1.5 meter cable.
-
Compact
ruggedized IP66 classified plastic
encapsulation with mounting flange.
-
E1 automotive approval.
....many other
advanced features
Please read the Datasheet and Technical
manual below
RTCU
CX1 pro-c product
data sheet V2.01 (pdf)
RTCU
CX1 pro-c technical manual V1.22 (pdf)
Declaration
of Conformity
|
|
|
The RTCU CX1i flex is a
compact and ruggedized telematic
tracking and control platform
based on the powerful
X32-architecture.
The RTCU CX1i flex offers a
unique and outstanding approach
allowing seamless upgrade with
new hardware options – even
after the product has been
installed in the field!
With a fully upgraded RTCU CX1i
flex the functionality is
approaching that of RTCU CX1i
pro – merely lacking the RF
transceiver and SD-CARD reader!
The RTCU CX1i flex is a
low-cost
product based on the
RTCU CX1i pro
with a unique approach to the
market. The standard hardware
features of the RTCU CX1i flex
are very powerful, but various
hardware options can be
activated on-demand from within
the RTCU IDE or by the unit
itself after installation.
The following options are
available:
- I/O
option: Full I/O
with 2 digital inputs, 2
digital outputs and 1 analog
input.
- RS232/FMI
option: RS232, 1-wire
and full
Garmin FMI
support.
-
Performance option: Very fast execution (48 Mhz)
and X32 Enhanced Memory.
Options
can be applied remotely to a
unit already installed and in
use by the customer.
The RTCU
CX1i flex is housed in a
highly ruggedized IP66
waterproof encapsulation, which
allows a new spectrum of
applications to be realized.
The
RTCU CX1i flex
feature list includes:
-
100%
software compatible with all current and
past RTCU units!
-
Huge
memory capacity with optional X32
Enhanced Memory support.
-
Fast execution (24
Mhz) with optional
very fast execution (48 Mhz).
-
High performance
16g 3-axis accelerometer / movement
sensor.
-
Internal 512 KB
Flash-drive with full FAT support.
-
Standard 1 Digital
input, optional a total of
2 Digital inputs, 2 Digital high-side
solid state outputs and 1 analog inputs.
-
Dedicated
high-speed USB programming port.
-
Optional
standard RS232 port.
-
Optional:
Support for
modular 1-wire
such as temperature
and ID-button reader
-
Quad Band GSM support
(850/900/1800/1900 Mhz)
-
GPRS Class 10 with full
RTCU Gateway
2 support
-
Supports
GSM features such as SMS/PDU/CSD/GPRS.
-
Full support for FTP and SMTP (email
with attachment).
-
Ultra
high-sensitivity low-power
66-channels
SuperGPS
receiver.
-
On-board Li-Ion battery (800 mAh)
-
Temperature sensor
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Movement,
Timeout, GSM or RS232-activity.
-
Optional
supports the
Garmin Fleet
Management / Navigation Interface
and the Mobile Data
Terminal.
-
Pre-mounted with
50 cm interface cable with all signals
easily available.
-
Pre-mounted with a
standard small 'thumb' sized GSM antenna
and a very
compact magnet GPS antenna with 1.5
meter cable.
-
Compact ruggedized
plastic encapsulation with mounting
flange.
-
E1 automotive
approvals.
....many other advanced
features.
Please read the Datasheet and Technical
manual below
RTCU
CX1i flex product data sheet V2.00 (pdf)
RTCU
CX1i flex technical manual V2.01 (pdf)
Declaration
of Conformity
|
.JPG) |

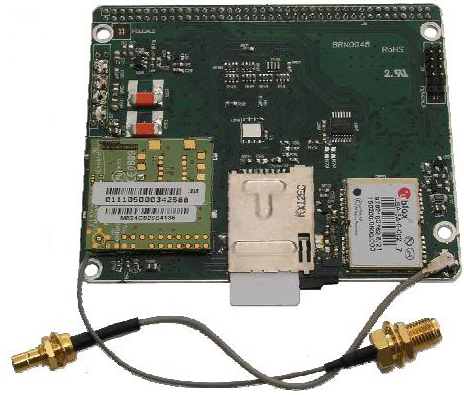

The
RTCU MX2 SOM (System On Module) with the
core taken from the popular and powerful
RTCU MX2i pro product. The
MX2 SOM module can be designed into a customer
application in the cases, where a standard
product is not suitable. All signals are
available on the SOM module for easy
integration, and a powerful development board is
offered for rapid development and integration…
Please read the
datasheet for additional
information.
Product
data sheet V1.01 (pdf)
|
%20(Custom).jpg) |

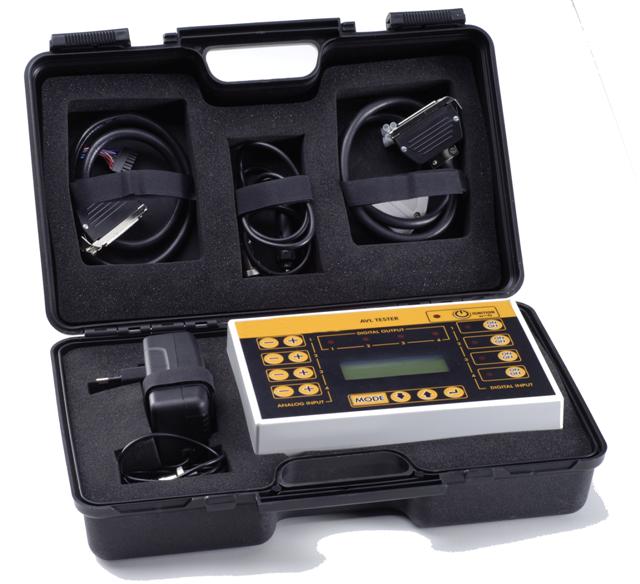

The AVL Tester represents a versatile instrument for all the
professionals involved in the AVL business
including software developers,
service engineers and sales agents, because it
offers the most
realistic Control Unit (MX2 and M11 family)
operating scenario - second only to
the vehicle itself! Together with the RTCU IDE,
it becomes a precious tool for the developer. The AVL Tester is a friendly
user instrument adapted for the electrical repair shop for cars,
where it can replace the RTCU-IDE platform.
Delivered in a practical suit-case complete with power-supply
and all necessary cables.
Product
data sheet V2.05 (pdf)
|
.jpg)
.jpg) |
The
Enfora SA-G+ modem is a certified quad-band integrated platform,
that enables simple integration through a standard RS232 serial
connection. Small compact modem with functions such as GPRS,
data calls (CSD), speech and SMS. External SIM-card holder w.
lock. Supply for 6-40VDC.
With this modem it is possible to establish a
CSD (data dial-up) connection the the RTCU
products in the case where a GPRS connection can
not be established.
GSM1308 Enfora SA-G+ Users Guide V1.03 (pdf)
GSM1308 Enfora SA-G+ AT Command Set V1.01 (pdf)
|
|
|
The VGA Camera Module for the RTCU MX2i pro,
RTCU DX4 pro
and RTCU AX9 pro is extending the functionality of this powerful
platform with the capability to take colour pictures in standard
JPEG format. The pictures taken can be transmitted over
the network to
a server and/or saved to an SD-CARD file.
The Camera Module supports implementation of applications
such as:
-
Remote monitoring of equipment,
devices, work areas and locations
-
Vehicle, including
driver/passenger, monitoring
-
Security applications
-
Any event-trigger applications
-
Stealth security applications
-
..."a picture is worth a thousand words"...
The VGA Camera module
connects directly to the RTCU unit and requires no
external power-supply. Delivered with 3 meter cable.
Product
data sheet V1.00 (pdf)
Technical
manual V1.00 (pdf)
|
.jpg) |
The RTCU
DX4 pro has been designed ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
multiple communication interfaces such as: CAN
bus, 1-Wire, USB, RS232 and dual RS485 channels.
The on-board I/O system can be expanded almost
indefinitely and completely transparent by
adding external
MODBUS compatible I/O modules!
This unique I/O expansion capability, combined
with the possibility to operate as a
MODBUS
master and slave simultaneously, positions the
RTCU DX4 pro as the perfect product for SCADA-like applications.
The RTCU DX4 pro offers many other sophisticated
features such as: A 512
KByte internal flash
drive and a SD-CARD reader with a FAT32
compatible file-system for easy sharing of files
locally and remotely with a PC/Server.
There is optional support for Bluetooth,
Ethernet, Wi-Fi, Camera module and a Mobile Data
Terminal for user interaction.
The RTCU DX4 pro is based on the well proven
RTCU X32-architecture sharing powerful features
such as: IVR (Interactive Voice Response)
implementation using Voice/DTMF, SMS/PDU
messages, optimized host implemented TCP/IP
stack with full support
for the Logic IO Gateway
concept. Using the Logic IO VSMS (Virtual SMS)
technology SMS, GPRS and CSD (Datacall) merge
together, allowing any RTCU application, that uses
the VSMS-messages paradigm, to transparently send
/ receive messages using either SMS, GPRS or CSD
(Datacall) without any changes to the software
already developed.
.jpg) The
RTCU DX4 pro is of course fully programmable
using the user-friendly Integrated Development
Environment (RTCU IDE) running under Windows. In
the environment the complete application is
developed, simulated and finally transferred to
the unit via a standard serial port or remotely
using GPRS or CSD (Datacall).
The impressive RTCU DX4 pro feature-list includes:
-
Based on the well proven
X32-architecture.
-
Huge memory capacity with X32 Enhanced Memory support
-
100%
software compatible
with all current and past RTCU units!
-
Back-lit
Graphical LCD display (144x32 pixels)
with user defined character support.
-
Status panel showing
battery/charger, GSM signal-strength and
GPRS status.
- Integrated
fully programmable keyboard
with
8 keys.
- Quad
Band GSM Engine for world-wide
operation. External SMA connector.
-
Prepared for
deployment of Gemalto embedded M2M SIM
chip.
- Supports
all GSM features such as
Voice/SMS/PDU/CSD/GPRS.
- Full support for sending e-mails with attachment (SMTP)
-
Interactive
Voice Response System support (User
defined messages/DTMF).
-
GPRS Class 10 with full RTCU Gateway 2
and VSMS support.
-
Standard SD-CARD reader with FAT32
compatible file-system.
-
Internal 512 KB Flash-Drive
with full FAT32 support.
-
Full CAN 2.0B controller with
hardware filtering.
- 1-Wire bus for connecting
devices such as ID-Button reader
and
Temperature sensor -
USB
ready (slave).
- Programming
port.
- RS232
port with optional RS485 support (shared
with programming port).
- One
RS232 port with all control signals
available.
- One
dedicated RS485
for I/O extension or general purpose
use.
- Full
MODBUS SLAVE support for SCADA
integration or I/O slave module.
- Full
MODBUS MASTER support for easy I/O
extension capability.
- Transparent
I/O extension using I/O Manager
integrated into the RTCU IDE.
Remote I/O appears the
same way as on-board I/O!
-
On
board 8 Digital inputs, 8 digital outputs, 4 analog inputs and 4 analog outputs.
- Up to
four IEC62053-31 Class B (S0) compliant
digital inputs.
- Analog inputs supports 0..10V and
0..20 mA.
-
Two-part
pluggable connectors for fast
installation and maintenance.
-
On-board temperature sensor.
-
Piezo Buzzer for
audible notification.
-
On-board
battery charger with high-capacity
battery pack (1900 mAh).
-
Low temperature
battery-charging down to -10 degrees
Celsius.
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Timeout, GSM-, CAN-,
RS485- or
RS232-activity
-
Encapsulated
in a M36 DIN-rail enclosure.
-
Highly expandable:
Bluetooth Smartantenna,
VGA Camera module,
Mobile Data Terminal
WiFi and Ethernet.
- Fully
supported by the powerful
RTCU IDE
development environment.
-
CE approval
according to EU EMC Directive
2004/108/EU.
....many other
advanced features
Please read the Datasheet and Technical
manual below
A
complete range
of MODBUS I/O modules are offered by Logic IO for easy connection to the RTCU DX4 pro
product. Please see the MODBUS
I/O Modules section.
Product
data sheet V1.14 (pdf)
Technical
manual V1.08 (pdf)
Declaration
of Conformity
|
|
|
The RTCU DX4 flex is designed for a broad
range of advanced
wireless
%20(Custom).jpg) monitoring,
control and remote access applications,
which require a product based on the most
versatile and powerful platform available today.
The RTCU DX4 flex offers a perfect balance
between low-cost and advanced features and with
the unique ‘on-demand options’, hardware
features can be enabled as required – even after
the product has been installed in the field!
The RTCU DX4 flex is a
low-cost
product based on the
RTCU DX4 pro with a unique
approach to the market. The
standard hardware features of
the RTCU DX4 flex are very
powerful, but various hardware
options can be activated
on-demand from within the RTCU
IDE or by the unit itself after
installation.
The following options are
available:
- Digital
I/O option: Full Digital
I/O with 8 digital inputs
and 8 digital outputs.
- Analog
I/O option: Full Analog
I/O with 4 analog inputs and
4 analog outputs.
- Communication
option: RS485/MODBUS and
1-wire support.
-
Performance
option:
Very fast execution (48 Mhz and X32 Enhanced Memory.
The impressive RTCU DX4 flex feature-list includes:
-
Based on the well proven
X32-architecture.
-
Huge memory capacity with optional X32 Enhanced Memory support
.-
100%
software compatible
with all current and past RTCU units!
-
Quad
Band GSM Engine for world-wide
operation. External SMA connector.
-
Prepared for
deployment of Gemalto embedded M2M SIM
chip.
- Supports
GSM features such as
SMS/PDU/CSD/GPRS.
- Full
support for sending e-mails with
attachment (SMTP)
- Full
FTP support.
-
GPRS Class 10 with full RTCU Gateway 2
and VSMS support.
-
Internal 512 KB Flash-Drive
with full FAT32 support.
-
Optional 1-Wire bus for connecting
devices such as ID-Button reader
and
Temperature sensor -
Programming
port.
- One
optional primary RS485
for I/O extension or general purpose
use.
-
Optional secondary RS485 channel (shared
with programming port).
- Full
MODBUS SLAVE support for SCADA
integration or I/O slave module.
- Full
MODBUS MASTER support for easy I/O
extension capability.
- Transparent
I/O extension using I/O Manager
integrated into the RTCU IDE.
Remote I/O appears the
same way as on-board I/O!
-
On
board 5 digital inputs, 3 digital outputs, 2 analog inputs and 2 analog outputs.
-
Optional full I/O with:
8 digital inputs, 8 digital outputs, 4 analog inputs and 4 analog outputs. - Up to
four IEC62053-31 Class B (S0) compliant
digital inputs.
- Analog inputs supports 0..10V and
0..20 mA.
-
Two-part
pluggable connectors for fast
installation and maintenance.
(Detachable mating plug must be ordered separately)
-
On-board temperature sensor.
-
On-board battery charger with battery pack (900 mAh).
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Timeout, GSM-,
RS485- or
RS232-activity
-
Encapsulated
in a M36 DIN-rail enclosure.
- Fully
supported by the powerful
RTCU IDE
development environment.
-
CE approval
according to EU EMC Directive
2004/108/EU.
Please read the Datasheet and Technical
manual below
A complete range
of MODBUS I/O
modules are
offered by Logic
IO for easy
connection to
the RTCU DX4
flex
product. Please see the MODBUS
I/O Modules section.
Product
data sheet V1.02 (pdf)
Technical
manual V1.00 (pdf)
Declaration
of Conformity
|
|
|
The
RTCU AX9 eco is a low-cost version
based on the full-featured and powerful
RTCU AX9 pro that still
hosts a long list of advances features.
Compared to the RTCU AX9 pro the RTCU AX9 eco
differs on the following features:
-
No 868 Mhz ISM RF band transceiver.
-
No SD-CARD reader.-
No secondary RS232 port.
-
No standard RS485 port.
-
No support for accessories such as Bluetooth, VGA Camera, Ethernet/WiFi.
-
No analog outputs and only 2 analog inputs.
-
No expansion slot.
-
Low-capacity battery.
-
No Enhanced X32 memory support.
The RTCU AX9 eco has been
designed ground up for professional wireless
industrial applications with its strong on-board
I/O capabilities and multiple communication
interfaces such as: 1-Wire, USB, RS232 and
optional
RS485. For world-wide operation the RTCU AX9 eco
offers full quad-band
GSM support with internal or external antenna.
The RTCU AX9 eco offers many
other sophisticated features such as: a 512
Kbyte internal flash drive with a FAT32 compatible file-system for
easy sharing of files locally and remotely.
There is optional support for a Mobile Data
Terminal for advanced user interaction.
The RTCU AX9 eco is based on the
well proven RTCU X32-architecture sharing
powerful features such as: IVR (Interactive
Voice Response) implementation using Voice/DTMF,
SMS/PDU messages, optimized host implemented
TCP/IP stack with full support for the Logic IO
Gateway concept. Using the Logic IO VSMS
(Virtual SMS) technology SMS, GPRS and CSD
(Datacall) merge together, allowing any RTCU
application, that uses the VSMS-messages paradigm,
to transparently send / receive messages using
either SMS, GPRS or CSD (Datacall) without any
changes to the software already developed.
The unit has full SMTP support
for sending e-mails with attachments and file
transfer with FTP for easy exchange of
information with external sources.
The RTCU AX9 eco is fully programmable using the user-friendly
Integrated Development Environment (RTCU IDE)
running under Windows. In the environment the
complete application is developed, simulated and
finally transferred to the unit via a standard
USB port or remotely using GPRS or CSD
(Datacall).
The
RTCU AX9 eco
is also the logical successor to the former RTCU A5i/A9i products.
For a brief description of the
enhancements and transition please read the
RTCU AX9 Series Product Information Bulletin.
The RTCU AX9 eco feature-list includes:
-
Based on the well proven
X32-architecture.
-
100%
software compatible
with all current and past RTCU units!
- Quad
Band GSM Engine for world-wide
operation.
- On-board
quad-band GSM antenna for cost and
installation savings, or
SMA connector for external antenna.
-
Prepared for
deployment of Gemalto embedded M2M SIM
chip.
- Supports
all GSM features such as
Voice/SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
-
Interactive
Voice Response System support (User
defined messages/DTMF).
-
GPRS Class 10 with full RTCU Gateway 2
and VSMS support.
-
Internal 512 KB Flash-Drive
with full FAT32 support.
- 1-Wire bus for connecting
devices such as ID-Button reader
and
Temperature sensor - Dedicated
high-speed USB programming port.
-
RS232 port with optional RS485 support.
- Transparent
I/O extension, using I/O Manager
integrated into the RTCU IDE.
Remote I/O appears the same way as on-board I/O
(requires RS485) -
On-board 5 Digital inputs and 4 relay outputs (5A @ 250VAC / 30VDC)
-
On-board 2 analog inputs.
- Up to
four IEC62053-31 Class A (S0) compliant
digital inputs.
- Analog inputs supports 0..10V and
0..20 mA.
-
On-board temperature sensor.
-
On-board
battery charger with low-capacity
battery pack (700 mAh).
-
Low temperature
battery-charging down to -10 degrees
Celsius.
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Timeout, GSM-,
RS485- or
RS232-activity
-
Wide
AC/DC power range from 85..265 VAC /
8..36 VDC.
-
Encapsulated in an IP67 classified plastic box with PG cable glands.
-
Screw terminals for easy interfacing.
-
Expandable with the
Mobile Data Terminal.
- Fully
supported by the powerful
RTCU IDE
development environment.
-
CE approval
according to EU EMC Directive
2004/108/EU.
....many other
advanced features
Please read the Datasheet and Technical
manual below
Product
data sheet V1.03 (pdf)
Technical
manual V1.11 (pdf)
Declaration
of Conformity
|
|
|
The RTCU AX9 eco-x has been
designed from
the ground up for professional wireless
industrial applications with its strong on-board
I/O capabilities and multiple communication
interfaces such as: 1-Wire, USB, RS232 and
optional
RS485. For world-wide operation the RTCU AX9 eco-x
offers full quad-band
GSM support with internal or external antenna.
The RTCU AX9 eco-x offers many
other sophisticated features such as: a 512
Kbyte internal flash drive with a FAT32 compatible file-system for
easy sharing of files locally and remotely.
There is optional support for a Mobile Data
Terminal for advanced user interaction.
The RTCU AX9 eco-x is based on the
well proven RTCU X32-architecture sharing
powerful features such as: IVR (Interactive
Voice Response) implementation using Voice/DTMF,
SMS/PDU messages, optimized host implemented
TCP/IP stack with full support for the Logic IO
Gateway concept. Using the Logic IO VSMS
(Virtual SMS) technology SMS, GPRS and CSD
(Datacall) merge together, allowing any RTCU
application, that uses the VSMS-messages paradigm,
to transparently send / receive messages using
either SMS, GPRS or CSD (Datacall) without any
changes to the software already developed.
The RTCU AX9 eco-x is fully programmable using the user-friendly
Integrated Development Environment (RTCU IDE)
running under Windows. In the environment the
complete application is developed, simulated and
finally transferred to the unit via a standard
USB port or remotely using GPRS or CSD
(Datacall).
The RTCU AX9 eco-x feature-list includes:
-
Based on the well proven
X32-architecture.
-
100%
software compatible
with all current and past RTCU units!
-
Quad
Band GSM Engine for world-wide
operation.
- SMA connector for external antenna.
- Supports
all GSM features such as
Voice/SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
-
Interactive
Voice Response System support (User
defined messages/DTMF).
-
GPRS Class 10 with full RTCU Gateway 2
and VSMS support.
-
Internal 512 KB Flash-Drive
with full FAT32 support.
-
1-Wire bus for connecting
devices such as ID-Button reader
and
Temperature sensor-
Dedicated
high-speed USB programming port.
-
RS232 port.
-
On-board 5 Digital inputs and 4 relay outputs (5A @ 250VAC / 30VDC)
-
On-board 2 analog inputs.
- Up to
four IEC62053-31 Class A (S0) compliant
digital inputs.
-
Analog inputs supports 0..10V and
0..20 mA.
-
On-board temperature sensor.
-
On-board
battery charger with low-capacity
battery pack (700 mAh).
-
Low temperature
battery-charging down to -10 degrees
Celsius.
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Timeout, GSM-,
or
RS232-activity
-
Wide
AC/DC power range from 85..265 VAC /
8..36 VDC.
-
Encapsulated in an IP67 classified plastic box with PG cable glands.
-
Screw terminals for easy interfacing.
-
Fully
supported by the powerful
RTCU IDE
development environment.
....many other
advanced features
Please read the Datasheet and Technical
manual below
Product
data sheet V1.03 (pdf)
Technical
manual V1.11 (pdf)
Declaration
of Conformity
|
.jpg)
.jpg)
.JPG) |
The PNM-100 product is a complete
solution using the
Navigation
and Messaging
Platform (NMP)
designed for the most demanding and professional fleet
management applications.
The PNM-100 device is a ruggedized 7-inch, easy to read, screen
optimized for finger touch usage. A powerful processor and
generous RAM and Flash ensures a delightful experience.
The PNM-100 product comes with the NMP software/maps
pre-installed and interface box and cables for the RTCU MX2i
pro/pro+, RTCU CX1i flex/pro and the RTCU SX1 series.
Ready to go!
The PNM-100 product package includes:
- Ruggedized Navigation and Messaging device:
- 7-inch diagonal resistive
touch TFT-LCD screen.
- Strong non-detachable cable
with data and power.
- Running Microsoft Windows
CE.NET 5.0.
- Navigation and Messaging Platform software installed.
- Sygic maps installed according to customer
requirements.
- NMP interface box for connection to RTCU unit and
power.
- Interface cables for the RTCU MX2i pro/pro+, CX1i
flex/pro and the SX1 series.
- Power cable for connection to 12..36 volt.
- Dashboard mount.
- Optional: cable for connection to the RTCU IDE
simulator.
PNM-100
- Product datasheet V1.00 (pdf)
PNM-100
- Technical Manual V1.20 (pdf)
|
|
|

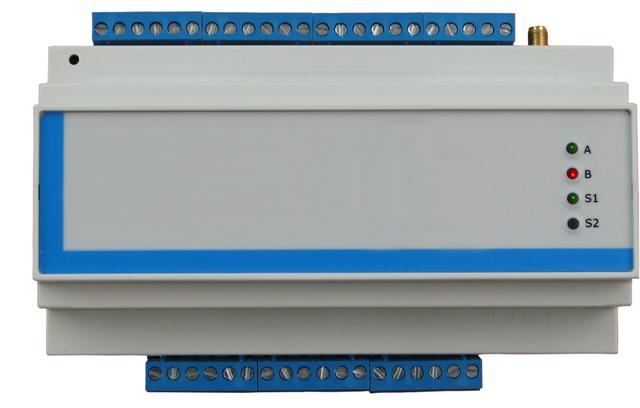

The RTCU
DX4 eco is
designed for a broad range of advanced wireless
monitoring, control and remote access
applications which require a product
based on the most versatile and powerful
platform available on the market today.
The RTCU DX4 eco is based on the powerful
RTCU DX4 pro, but offers a
reduced feature set to balance perfectly between
low-cost and advanced features. The DX4 eco
maintains the same I/O capabilities, including
expandable I/O's, as the RTCU DX4 pro, and also
offers support for a M2M chip solution instead
of a traditional SIM-card!
The DX4 eco has been designed ground up for
professional wireless industrial applications
with its strong on-board I/O capabilities and
multiple communication interfaces such as: 1-Wire, RS232 and dual RS485 channels.
The on-board I/O system can be expanded almost
indefinitely and completely transparent by
adding external Modbus compatible I/O modules!
This unique I/O expansion capability, combined
with the possibility to operate as a Modbus
master and slave simultaneously, positions the
RTCU DX4 eco as the perfect product for SCADA-like applications.
The RTCU DX4 eco offers many other sophisticated
features such as: A 512
Kbyte internal flash
drive with a FAT32
compatible file-system for easy sharing of files
locally and remotely with a PC/Server.
The RTCU DX4 eco is based on the well proven RTCU X32-architecture sharing powerful features
such as: SMS/PDU
messages, optimized host implemented TCP/IP
stack with full support the Logic IO Gateway
concept. Using the Logic IO VSMS (Virtual SMS)
technology SMS, GPRS and CSD (Datacall) merges
together allowing any RTCU application, that uses
the VSMS-messages paradigm, to transparently send
/ receive messages using either SMS, GPRS or CSD
(Datacall) without any changes to the software
already developed.
The
RTCU DX4 eco is of course fully programmable
using the user-friendly Integrated Development
Environment (RTCU IDE) running under Windows. In
the environment the complete application is
developed, simulated and finally transferred to
the unit via a standard serial port or remotely
using GPRS or CSD (Datacall).
The impressive RTCU DX4 eco feature-list includes:
-
Based on the well proven
X32-architecture
-
Huge memory capacity with X32 Enhanced Memory support
-
100%
software compatible
with all current and past RTCU units!
-
Quad
Band GSM Engine for world-wide
operation. External SMA connector.
-
Prepared for
deployment of Gemalto embedded M2M SIM
chip.
- Supports
GSM features such as
SMS/PDU/CSD/GPRS.
- Full
support for sending e-mails with
attachment (SMTP)
-
GPRS Class 10 with full RTCU Gateway Professional
and VSMS support.
-
Internal 512 KB Flash-Drive
with full FAT32 support.
-
1-Wire bus for connecting
devices such as ID-Button reader
and
Temperature sensor -
Programming
port.
- One
dedicated RS485
for I/O extension or general purpose
use.
-
Optional RS485 support (shared
with programming port).
- Full
MODBUS SLAVE support for SCADA
integration or I/O slave module.
- Full
MODBUS MASTER support for easy I/O
extension capability.
- Transparent
I/O extension using I/O Manager
integrated into the RTCU IDE.
Remote I/O appears the
same way as on-board I/O!
-
On
board 8 Digital inputs, 8 digital outputs, 4 analog inputs and 4 analog outputs.
- Up to
four IEC62053-31 Class B (S0) compliant
digital inputs.
- Analog inputs supports 0..10V and
0..20 mA.
-
Two-part
pluggable connectors for fast
installation and maintenance.
-
On-board temperature sensor.
-
On-board battery charger with battery pack (700 mAh).
-
Advanced power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Timeout, GSM-,
RS485- or
RS232-activity
-
Encapsulated
in a M36 DIN-rail enclosure.
- Fully
supported by the powerful
RTCU IDE
development environment.
-
CE approval
according to EU EMC Directive
2004/108/EU.
....many other
advanced features
Please read the Datasheet and Technical
manual below
A
complete range
of MODBUS I/O modules are offered by Logic IO for easy connection to the RTCU
DX4 eco
product. Please see the MODBUS
I/O Modules section.
Product
datasheet V2.00 (pdf)
Technical
manual V2.02 (pdf)
|
.jpg) |
RT-EX-9036:
6 Analog RTD Sensor Inputs. 16 Bit
To expand the
I/O capability of certain RTCU products an MODBUS compatible I/O
module can be connected to the product and configured using the
I/O Expansion configuration functionality available in the RTCU
IDE. The I/O Expansion is completely transparent to the
application and remote I/O are therefore accessed and used
exactly as on-board I/O.
Logic IO are offering a range of MODBUS I/O
modules that are high-quality, low-cost and extremely easy to
set-up and use due to the set-up utility included in the RTCU
IDE.
The EX9036 module offers 6 Analog RTD
Inputs with a resolution of 16 bits.
PT-100 sensors in various configuration is
supported with a high resolution of 16 Bit.
Product
datasheet V1.02 (pdf)
Technical
manual V2.00 (pdf)
|
|
|
The
RTCU MX2i basic is an entry level
low-cost
device with many advanced features as expected
from a member of the powerful and versatile
MX2i family. The MX2i basic is a perfect match
for basic applications not requiring all the
features found in the full powered
MX2i pro or the
MX2i eco+.
Compared to the MX2i eco+
the RTCU MX2i basic has a reduced feature
set with less I/O's, a lower capacity battery
and no 1-Wire support. Finally the RTCU MX2i
basic does not support the X32 enhanced
memory for extremely huge programs.
The RTCU MX2i
basic feature-list includes:
- Up to
10 times faster execution than previous generation RTCU products
- 100%
software compatible
with all current and past RTCU units!
- Internal
512 KB Flash-Drive with full FAT support
- 2
digital inputs,
2 digital
high-side solid state outputs and 1 analog inputs
- 1
RS232 serial port.
-
Dual Band GSM support
(900/1800 Mhz)
- GPRS Class 10 with full
RTCU Gateway Professional support
- Supports GSM features such as SMS/PDU/CSD/GPRS.
- Full support for FTP and SMTP (email with attachment).
- High-performance low-power
50-channels GPS-receiver
- On-board Li-Ion
battery (700 mAh)
- Vibration sensor with adjustable
sensitivity
- Temperature sensor
- Advanced
power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Vibration, Timeout, GSM-, or
RS232-activity
- Sleek
aluminium design with black
end-caps.
- Optional
Mounting Bracket Kit for easy "screw-on" installations
- Alternative
front end-cap with hidden SIM card
reader.
-
Upgradeable
to full Garmin
Navigation support.
- E1/e1 automotive approvals.
....many other
advanced features
Please read the Datasheet and Technical Reference Manual below
Product
datasheet V1.03 (pdf)
Technical
reference V1.00 (pdf)
|
.jpg) |
The VGA Camera Module for the RTCU MX2i pro, RTCU DX4 pro
and RTCU AX9 pro is extending the functionality of this powerful
platform with the capability to take colour pictures in standard
JPEG format. The pictures taken can be transmitted over GPRS to
a server and/or saved to an SD-CARD file.
The Camera Module is supporting implementation of applications
such as:
- Remote monitoring of equipment,
devices, work areas and locations
- Vehicle, including
driver/passenger, monitoring
- Security applications
- Any event-trigger applications
- Stealth security applications
- ....many other applications
where "a picture is worth a thousand words"...
The VGA Camera module
connects directly to the RTCU unit and requires no
external power-supply. Delivered with 3 meter cable.
The VGA Camera module is easy-to-use through the dedicated
functions in the RTCU IDE development software.
Product
datasheet V1.03 (pdf)
Technical
reference V1.01 (pdf)
|
 |
The M11Gi unit is especially designed for mobile GPRS
enabled applications. The product is supplied
in a metal enclosure well suited for mounting in vehicles
with external connection for
dual band GSM antenna (SMA female), GPS antenna (SMB Male),
power, headset connector, 1-Wire/iButton interface and digital/analog I/O.
The unit has
5 digital inputs (including ignition input), 4
relay outputs, 4 analog inputs and two RS232 serial ports (same
pin-out as a standard PC com port), one of them selectable as
RS485 (option). The RTCU-M11G MAX is powered with
9..36VDC.
There is an on-board 12 Channel GPS-receiver, a
temperature sensor and the possibility to connect 1-Wire
devices such as an ID-Button reader or
Temperature sensors.
The unit has support for voice/DTMF
user interaction. The RTCU-M11G MAX unit
has support for advanced power-down / deep-sleep features
for low power consumption.
Fully
programmable from within the RTCU IDE development environment.
The unit has all the necessary approvals, including the 95/54/EC / ECE-R10 (E1) approval for automotive electronics.
** Please note that this product is obsolete. Use the
MX2i or CX1 series instead.
Product
datasheet V1.01 (pdf)
Technical
reference V1.00 (pdf)
-- Ordering code: RT-M11GI (on-board GPS
receiver)
|
 |
The RTCU A5i MAX product is a compact and easy installable
unit. Encapsulated in a IP67 class
plastic enclosure with 3 * PG11 cable glands and a
SMA female connector for easy connection to a GSM dual band
antenna. The
unit has 4 digital inputs, 4 relay outputs and 4 analog inputs and is powered with
either 230VAC or 18..26VDC.
The 4 digital inputs can be configured as S0-compatible (IEC
62053-31) inputs for connection
to electricity/gas/water meters. The RTCU A5i also
supports an optional NiMh battery
backup package.
The unit fully
supports SMS, Voice/DTMF and
Datacalls.
Fully
programmable from within the RTCU IDE development environment.
** Please note that this product is obsolete. Use the
AX9 eco instead.
Product
datasheet V2.12 (pdf)
Technical
reference V1.15 (pdf)
|
|
|
The RTCU A9i MAX product is a compact and easy installable
unit. Encapsulated in a IP67 class
plastic enclosure with 3 * PG11 cable glands and a
SMA female connector for easy connection to a GSM dual band
antenna. The
unit has 4 digital inputs, 4 relay outputs, 4 analog inputs
and 4 analog outputs and is powered with
either 230VAC or 18..26VDC.
The unit has full GPRS
support, one extra serial port, advanced
power-saving features, and on-board temperature sensor.
The 4 digital inputs can be configured as S0-compatible (IEC
62053-31) inputs for connection
to electricity/gas/water meters. The RTCU A9i also
includes support for 1-Wire/iButton and an optional NiMh battery
backup package.
The unit is fully
GPRS Gateway compatible and it supports SMS, Voice/DTMF and
Datacalls. Fully
programmable from within the RTCU IDE development environment.
Optional RS485 support.
** Please note that this product is obsolete. Use the AX9 pro instead.
Product
datasheet V2.03 (pdf)
Technical
reference V2.06 (pdf)
|
.JPG) |
The RTCU A9i LAN product is a combination of the RTCU A9i
product and Ethernet add-on module separately available for the
MX2i Pro product.
The RTCU A9i LAN product has the same features as a
standard RTCU A9i MAX product with the addition of Ethernet as
an alternative method for establishing a connection to the GPRS
Gateway Professional. With the powerful API available the
application can decide, whether the Gateway connection should be
established over GPRS or Ethernet, and therefore a failsafe
fallback mechanism can be easily implemented.
The RTCU A9i LAN product supports connection to a standard Ethernet 10/100
Mbps cable infrastructure and is supplied with a standard CAT-5e
RJ45 female connector.
Advanced configuration is supported using an easy to use
web-based interface, where various parameters such as DHCP /
IP-address, net-mask and security
parameters are configured.
** Please note that this product is obsolete. Use the AX9 pro instead.
Technical
reference V2.00 (pdf)
|
|
|
The RTCU MX2i eco is a low cost version
of the popular RTCU-MX2i pro. With a reduced
feature set compared to the RTCU-MX2i pro the
product has a perfect balance between price and
performance, and together these products
offers a unique platform for all kind of
applications. The price level of the RTCU MX2i
eco belongs to the entry-level segment, but the
advanced features are in a league of its
own!
The RTCU MX2i eco feature-list includes:
- Up to 10 times faster execution
than previous generation RTCU products
- 100%
software compatible
Applications already written for the previous RTCU
generation will run without
changes
- Huge memory capacity
- 5 Digital inputs and 4 Digital
high-side solid state outputs
- 1 Serial port.
- Quad Band GSM support
(850/900/1800/1900 Mhz)
- GPRS Class 10 with full
GPRS Gateway Professional support
-
Supports
GSM features such as SMS/PDU/CSD/GPRS.
- Low-power
16-channel GPS-receiver
- Vibration sensor with adjustable
sensitivity
- Temperature sensor
- Advanced
power-management with
power-down and wait-for-event modes
Wake-up on: Digital input, Vibration, Timeout, GSM or
RS232-activity
- Sleek new design with black
end-caps!
- Optional
Mounting Bracket Kit for easy "screw-on" installations
- Alternative
front end-cap with hidden SIM card
reader.
- E1/e1 automotive approvals.
....many other
advanced features
Please read the Datasheet and Technical Reference Manual below
** Please note that this product is obsolete. Use the
MX2i or CX1 series instead.
Product
datasheet V1.10 (pdf)
Technical
reference V1.03 (pdf)
|
|
|
The M11i unit is especially designed for advanced GPRS
enabled applications. The product is supplied
in a metal enclosure well suited for mounting in vehicles
with external connection for
dual band GSM antenna (SMA female),
power, headset connector, 1-Wire/iButton interface and digital/analog I/O.
The RTCU M11i MAX has 512 KByte flash memory
for datalogging/parameters and support for voice/DTMF
user interaction. As a factory installed
option the flash memory can be upgraded with additional 8 Mbyte
for data intensive applications.
The unit has
5 digital inputs (including ignition input), 4
relay outputs, 4 analog inputs and two RS232 serial ports (same
pinout as a standard PC com port), one of them selectable as
RS485 (option). The RTCU-M11i MAX is powered with
9..36VDC.
There is an on-board temperature sensor and the possibility to
connect 1-Wire devices such as an ID-Button
reader or Temperature sensors.
The unit has support for voice/DTMF
user interaction. The RTCU-M11i MAX unit
has support for advanced powerdown / deepsleep features
for low power consumption.
Fully
programmable from within the RTCU IDE development environment.
The unit has all the necessary approvals, including the 95/54/EC / ECE-R10 (E1) approval for automotive electronics.
** Please note that this product is obsolete. Use the
MX2i or CX1 series instead.
Product
datasheet V1.01 (pdf)
Technical
reference V1.00 (pdf)
|
 |
The RTCU D4 MAX product is delivered in a M36 DIN enclosure
for mounting on standard DIN rail
(EN50022) with a SMA female connector for easy connection
to a GSM dual band antenna.
The unit has 12 digital inputs, 12 digital outputs, 4 analog
inputs and 4 analog outputs and is powered
with 8..34VDC. The unit comes standard with a backlit 2 x 16
characters LCD display. The unit has 512 KByte memory for
datalogging/parameters and support for
voice/DTMF user interaction. Fully
programmable from within the RTCU IDE development environment.
Optional RS485 support.
** Please note that this product is obsolete. Use the DX4
Series instead.
Product
datasheet V2.01 (pdf)
Technical
reference v1.07 (pdf)
|
 |
The RTCU D4 CTRL product is exactly the same hardware as the
RTCU D4 MAX but without the
GSM module mounted. This makes the unit suitable for
standalone operation or for I/O
extending an RTCU D4 MAX (or any other
RTCU unit with RS485 support).
Delivered standard with RS485 support.
** Please note that this product is obsolete. Use the DX4
Series instead.
Product
datasheet V2.01 (pdf)
Technical
reference V1.07 (pdf)
|
.jpg) |
The RTCU DX4 eco High-capacity Li-Ion Internal Battery Package
offers uninterrupted operation - regardless of an external power
failure. An fully automated and intelligent on-board charger on
the DX4 eco will ensure easy installation and use of this Backup
solution.
Very high capacity of 1900 mAh!!
For installation, please consult the RTCU DX4 eco Technical
Manual.
Product
datasheet V1.00 (pdf)
|
.JPG) |

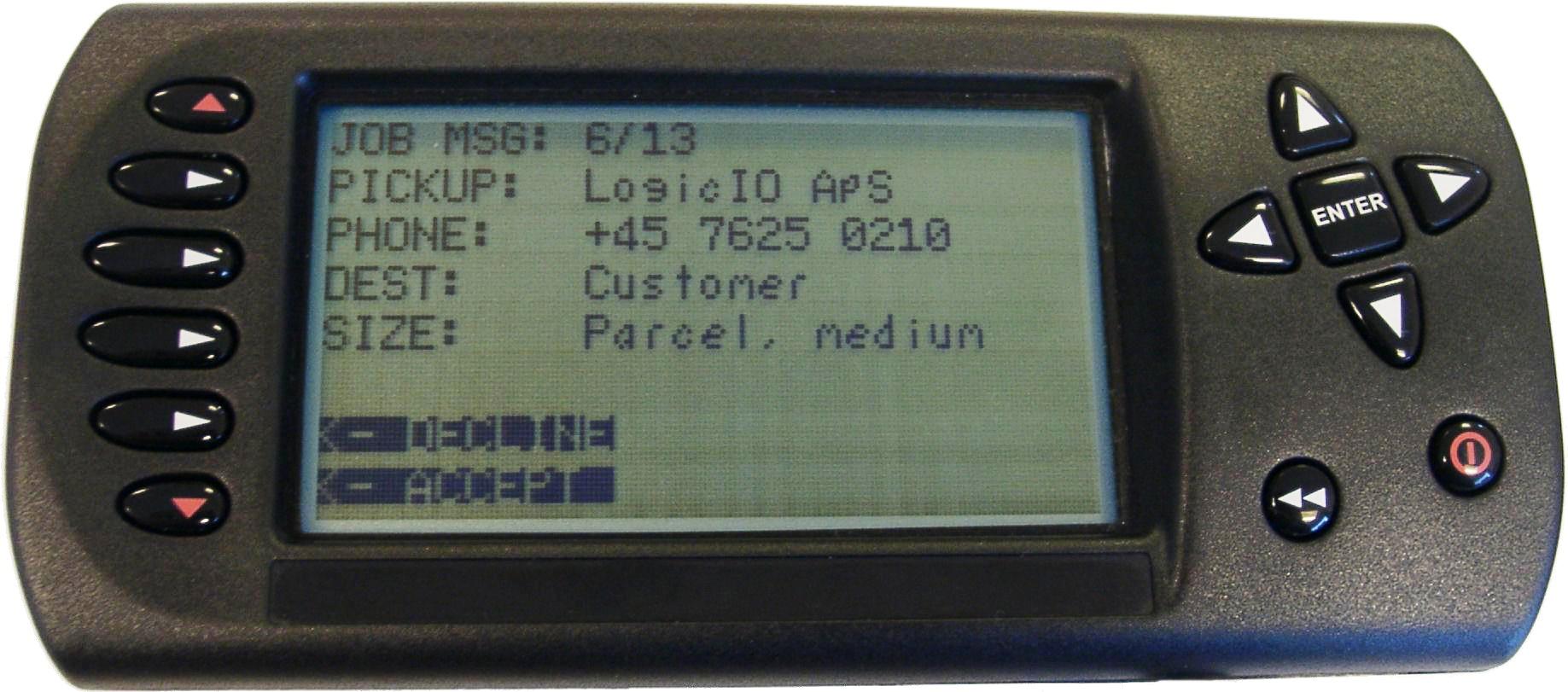

The Mobile Data Terminal (MDT-100) extends the RTCU MX2i pro
or RTCU M11/M11i Series with a flexible and easy to use user-interface solution with
many advanced features, allowing all kinds of two-way messaging
applications to be implemented.
The Mobile Data Terminal is easily connected to the RTCU unit and includes the following features:
- High contrast graphic Liquid Crystal
Display (LCD)
- 8 lines, 26 characters per line
- 13 tactile, user definable keys
- Built in piezo buzzer
- 10 user selectable backlight levels
- Two easy mounting options
- Built for tough environments
- High-level VPL library
- Full simulator support in the RTCU-IDE
- MDT on/off and standby functionality
for maximum power saving
Application development for the Mobile Data
Terminal is easily archived with easy to use high-level library
functions accessible from the RTCU IDE. The VPL application
using the MDT can be fully simulated in the RTCU IDE environment
before upload to a physical RTCU unit.
** Please note that this product is
obsolete.
Use the MDT-200 instead.
Product
datasheet V1.00 (pdf)
Technical
reference V1.00 (pdf)
|
 |
The internal Battery Backup module for the RTCU M11/M11i Series
offers uninterruptible operation even when a power failure of
the external power supply occurs. The Backup Battery module is
easy installable and is available with
1400 mAh capacity. The firmware support for the Battery Backup module
includes notification of power failure and also a low battery
indication when the battery voltage drops
below a hardware programmed threshold.
An advanced charge circuit is integrated into the Battery Backup
Module, this ensures a quick and correct charge of the
batteries. By integrating the charger into the Battery Backup
Module the sophisticated charge process is taken out of the
hands of the user. When the charger is enabled the batteries
will be charged once a day (scheduled by firmware) or whenever a
power failure have occured. These automated mechanism will
ensure an always fully charged Battery Backup Module ready for
use.
** Please note that this product is obsolete.
Product
datasheet v1.02 (pdf)
Technical
reference V2.00 (pdf)
|
|
|
The RTCU M11G MAX is the successor to the popular RTCU M10G
with a number of enhancements, including: Dedicated ignition
input for immediate wakeup from powerdown mode,
External headset connector, Temperature sensor, DIP-switch,
1-Wire/iButton interface + more.
The unit is especially designed for mobile GPRS
enabled applications. The product is supplied
in a IP44 class metal enclosure well suited for mounting in vehicles
with external connection for
dual band GSM antenna (SMA female), GPS antenna (SMB Male),
power, headset connector, 1-Wire/iButton interface and digital/analog I/O.
The unit has
5 digital inputs (including ignition input), 4
relay outputs, 4 analog inputs and 2 RS232 serial ports (same
pinout as a standard PC com port), one of them selectable as
RS485 (option). The RTCU-M11G MAX is powered with
9..36VDC.
The unit has support for voice/DTMF
user interaction. The RTCU-M11G MAX unit
has support for advanced powerdown / deepsleep features
for low power consumption.
The RTCU M11G can be used together with the optional
Battery Backup Module for
uninterruptable operation during an external power failutre.
Fully
programmable from within the RTCU IDE development environment.
The unit has all the necessary approvals, including the 95/54/EC / ECE-R10 (E1) approval for automotive electronics.
** Please note that this product is obsolete. Use the
MX2i or CX1 series instead.
Product
datasheet V1.04 (pdf)
Technical
reference V1.02 (pdf)
|
 |
The RTCU M11 MAX is the successor to the popular RTCU M10 with
a number of enhancements, including: Dedicated ignition input
for immediate wakeup from powerdown mode, External
headset connector, Temperature sensor, DIP-switch,
1-Wire/iButton interface + more.
The product is supplied
in a IP44 class metal enclosure with external connection for
dual band GSM antenna (SMA female),
power, headset connector, 1-Wire/iButton interface and digital/analog I/O.
The unit has
5 digital inputs (including ignition input), 4
relay outputs, 4 analog inputs and 2 RS232 serial ports (same
pinout as a standard PC com port), one of them selectable as
RS485 (option). The RTCU-M11 MAX is powered with
9..36VDC.
The unit has support for voice/DTMF
user interaction. The RTCU-M11 MAX unit
has support for advanced powerdown / deepsleep features
for low power consumption.
The RTCU M11 can be used together with the optional
Battery Backup Module for
uninterruptable operation during an external power failutre.
Fully
programmable from within the RTCU IDE development environment.
The unit has all the necessary approvals, including the
95/54/EC / ECE-R10 (E1) approval for automotive electronics.
** Please note that this product is obsolete. Use the
MX2i or CX1 series instead.
Product
datasheet V1.04 (pdf)
Technical
reference V1.02 (pdf)
|
 |
The RTCU M10G MAX is especially designed for mobile GPRS
enabled applications. The product is supplied
in a IP44 class aluminium enclosure well suited for mounting in vehicles
with external connection for
dual band GSM antenna (SMA female), GPS antenna (SMB Male),
power and digital/analog I/O.
The unit has
4 digital inputs, 4 relay outputs, 4 analog inputs
and 2 serial ports (same pinout as a standard PC com port),
one of them selectable as RS485. The RTCU-M10G MAX is powered with
9..36VDC.
The unit has 512 KByte memory
for datalogging/parameters and support for voice/DTMF
user interaction. The RTCU M10G MAX unit
has support for advanced powerdown / deepsleep features
for low power consumption. Fully
programmable from within the RTCU IDE development environment.
The units has all the necessary approvals, including the
95/54/EC / ECE-R10 (E1) approval for automotive electronics.
** Please note that this product is obsolete.
Product
datasheet (pdf)
Technical
reference (pdf)
|
|
|
The RTCU M10 MAX is especially designed for GPRS
enabled applications. The RTCU-M10 MAX product is supplied
in a IP54 class aluminium enclosure well suited for mounting in vehicles
with external connection for
dual band GSM antenna (SMA female),
power and digital/analog I/O.
The unit has
4 digital inputs, 4 relay outputs, 4 analog inputs
and 2 serial ports (same pinout as a standard PC com port),
one of them selectable as RS485. The RTCU-M10 MAX is powered with
9..36VDC.
The unit has 512 KByte memory
for datalogging/parameters and support for voice/DTMF
user interaction. The RTCU M10 MAX unit
has support for advanced powerdown / deepsleep features
for low power consumption. Fully
programmable from within the RTCU IDE development environment.
The units has all the necessary approvals, including the
95/54/EC / ECE-R10 (E1) approval for automotive electronics.
** Please note that this product is obsolete.
Product
datasheet (pdf)
Technical
reference (pdf)
|
|
|
The RTCU A6 MAX product is a compact and easy installable
unit. Encapsulated in a IP67 class
plastic enclosure with 3 PG9 cable glands and a
SMA female connector for easy connection to a GSM dual band
antenna. Our GSM Whip antenna is suitable
for direct mounting on thit unit. The
unit has 4 digital inputs, 4 relay outputs, 4 analog inputs
and 4 analog outputs and is powered with
either 230VAC or 11..15VDC.
The
unit has 512 KByte memory for datalogging/parameters and
support for voice/DTMF user interaction.
Fully programmable from within the RTCU IDE
development environment.
Optional RS485 support.
** Please note that this product is obsolete.
Product
datasheet (pdf)
Technical
reference (pdf)
|
 |
The RTCU-M7 MAX is especially designed for mobile
applications, but can be used with or
without GPS in a number of different
applications. The RTCU-M7 MAX product is supplied
in a heavy duty IP54 class black
aluminum enclosure well suited for mounting in vehicles
with external connection for
dual band GSM antenna (SMA female), power, digital/analog I/O
and a GPS Smartantenna. The unit has
4 digital inputs, 4 digital outputs and 2
analog inputs and is powered with 8..34VDC.
Full support for connection to external
GPS-Smartantenna via. standard RS232
(NMEA). The unit has 512 KByte memory
for datalogging/parameters and support for voice/DTMF
user interaction. The RTCU-M7 MAX unit
has support for advanced powerdown / deepsleep features
for low power consumption. Fully
programmable from within the RTCU IDE development environment.
** Please note that this product is obsolete.
Product
datasheet (pdf)
Technical
reference (pdf)
|
 |
The RTCU-DIN product is delivered in a M36 DIN enclosure for
mounting on standard DIN rail (EN50022)
with a flying lead FME male connector for easy
connection to a GSM antenna. The unit
has 16 digital inputs and 16 digital outputs and is powered
with 8..34VDC. The
unit has 512 KByte memory for datalogging/parameters and
support for voice/DTMF user interaction.
Fully programmable from within the RTCU IDE
development environment.
** Please note that this product is obsolete.
Product
datasheet (pdf)
Technical
reference (pdf)
|
 |
The RTCU-SA product is encapsulated in a IP67 class plastic
enclosure with 4 PG13.5 cable glands and
a TNC female connector for easy connection to a
GSM antenna. The unit has 8 digital
inputs, 8 relay outputs, 4 analog inputs and 4 analog outputs
and is powered with 12..28VDC or 12..18VAC. The
unit has 512 KByte memory for datalogging/parameters and
support for voice/DTMF user interaction.
Fully programmable from within the RTCU IDE
development environment.
** Please note that this product is obsolete.
Product
datasheet (pdf)
Technical
reference (pdf)
|
|
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
