The Navigation API supports the implementation of advanced fleet management applications that integrate navigation, two-way messaging, driver identification, and Job dispatch capabilities.

The Job dispatch functionality includes advanced features such as support for routes with multiple stops, route optimization, and periodic Estimated Time of Arrival (ETA) notifications.


To use the Navigation interface, it is necessary to connect a supported Navigation device from Garmin or a PNM device from Logic IO.

The connection between the Garmin/PNM Navigation device is established through a serial port with a special interface cable available from Logic IO.


To enable a quick and easy overview of what functionality is supported by the navigation devices, the Navigation API is divided into levels.

Each level of the API is a group of functionality that is added to the functionality of the previous level(s). For example, a device with level 1 API support can only use the basic navigation functionality while a device with level 2 API support can use both the basic navigation functionality and the more advanced functionality that the level 2 API offers.

For each function in the navigation, their API level is documented.


For the latest list of devices that support the Garmin Navigation API, please visit this link:
Please also contact Logic IO for further details.



All devices supports level 2 of the navigation API, which includes the following functionality:


User authentication.

3 simultaneous users.


Message threading.

Deleting messages.

Message formatting using HTML tags.



NX32 and NX32L execution architecture devices also have support for the following levels:

API Level 8:

Speed Limit Alerts

API Level 9:

Remote Reboot

API Level 12:

Custom Forms

API Level 13:

Avoidance areas

API Level 14:


API Level 16:

Support for 57600 baud.

API Level 17:

Alert Pop-up

Sensor Display

API Level 21:

Show custom forms.

API Level 23:

ETA mode


The specific API level supported depends on the specific Garmin device connected and only the latest devices supports all levels.



It is possible to determine the functionality available on a device by calling the navGetAPILevel function which returns the API level supported by the connected device.

Using a functionality not supported by the connected device will fail with an error code specifying that the feature is unsupported.

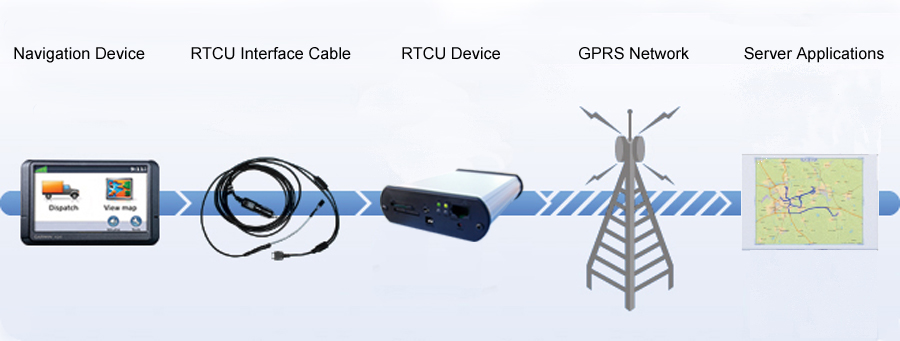

The illustration below shows the system architecture with the various components constituting a complete Fleet Management Solution:




For easy use and access, the Navigation API has been grouped into 12 logical categories:


Navigation Management.

User Identification.

Text Messaging.

Route Management.

Estimated Time of Arrival.

Garmin Point of Interest.

Waypoint management.

Sensor display.

Avoidance areas.

Custom forms

Speed Limit Alerts





Navigation Management

This group is used for managing the navigation interface.



Opens the navigation interface.


Closes the navigation interface.


Queries whether a navigation device is present.


Gets the version number of the software on the navigation device.


Get the API level that a connected navigation device supports.


Gets the serial number of a connected navigation device.


Waits for an event from the navigation interface.


Customizes the text of the user interface in the navigation device.


Deletes data from the navigation device.


Gets the current GPS position from the connected navigation device.


Reboots the navigation device.


Controls safe mode, where some menus are disabled while driving.



User Identification

This group is used for maintaining the user ID and status with the user being the person operating the navigation device.



Authenticates a received user ID.


Reads a received user ID.


Reads a received user ID with extra information.


Requests the current user ID.


Sets the user ID in the navigation device.


Defines a user status item.


Deletes a user status item.


Reads a received user status.


Reads a received user status with extra information.


Requests the current user status.


Sets the user status in the navigation device.



Text messaging

This group is used for sending and receiving simple text messages to/from the navigation device.

Quick messages are predefined text messages in the navigation device so the user does not have to repeatedly type in common text messages.

User-defined replies allow the user to reply with something other than yes/no without sending a text message.



Sends a text message to the navigation device.


Deletes a text message in the navigation device.


Reads a received text message status.


Requests the status of a text message.


Reads a received text message.


Reads a received text message with extra information.


Defines a quick message in the navigation device.


Deletes a quick message in the navigation device.


Adds a user-defined reply in the navigation device.


Removes a user-defined reply from the navigation device.


Reads a received text message reply.


Shows an alert message on the navigation device.



Route Management

This group is used for maintaining the destinations and the order of the destinations in the route.



Adds a destination to the route.


Reads a received destination status.


Requests the status of a destination.


Sorts destinations by shortest path.


Sets the position of a destination in the route.


Activates a destination.


Marks a destination as completed.


Deletes a destination from the route.


Sets the criteria for the auto-arrival detection.


Begins the construction of a new route.


Cancels the construction of a route.


Adds a stop or a via point to a route.


Sends the route to the navigation device.


Sends a route from a file to the navigation device.



Estimated Time of Arrival (ETA)

This group is used for handling the ETA updates.



Reads a received ETA update.


Requests an ETA update.


Enables or disables ETA events at regular intervals.


Configure which ETA events to report.



File transfers

This group is used for handling file transfers.



Starts to transfer a GPI file.


Reads a transfer progress report.


Requests the ID of the GPI file.


Reads a received GPI file ID.



Waypoint management

This group is used for maintaining waypoints with waypoints being user-defined points of interest.



Sets a waypoint in the navigation device.


Deletes a waypoint from the navigation device.


Deletes all waypoints that are part of the categories.



Sensor display

This group is used for displaying sensor data to the user. The sensor data can come from any source and does not necessarily have to be from an actual sensor.



Create or modify a sensor.


Set the status of a sensor.


Delete a sensor.



Avoidance areas

This group is used for configuring areas to avoid while routing.



Enable or disable the support for avoidance areas.


Create or modify an avoidance area.


Delete an avoidance area.


Enable or disable an avoidance area.


Custom forms

This group is used for creating custom forms on the navigation device. These forms can then be filled out by the user on the navigation device and then be sent back to the RTCU. For more details, see Custom forms.




Speed Limit alerts

This group is used for configuring and reading Speed Limit Alerts, which are events that happens when the vehicle exceeds the speed limit.



Configures the Speed Limit Alert support.


Reads a Speed Limit Alert.




This group is used for converting data formats between the ones that are used in the navigation interface and the ones that are used in VPL.



Converts position format to semicircles.


Converts position format from semicircles.





Architecture of the Navigation API

The Navigation API is based on an asynchronous event-based model where solicited as well as unsolicited events from the Navigation device are automatically queued and delivered to the user application. The function navWaitEvent is used to return information about the various events that are arriving from the Navigation device. This model eliminates the requirement for the application to continuously poll for messages, and it also encourages the use of multithreading with the added benefits that come with this.

Events that are triggered by the application requesting various pieces of information from the Navigation device are therefore called solicited events. They can also be triggered by the Navigation itself, and if such is the case, they are instead called unsolicited events. A solicited event is for example when the application calls navStopRequest. navWaitEvent will then return with event# 5, and the application must use navStopReceive to read the actual stop status. An unsolicited event works exactly the same way as a solicited event, except that navStopRequest is not called by the application.

Please consult navWaitEvent for detailed information about the various events and how they are handled.



Using Unicode strings with the Navigation API

Support for Unicode strings are included in the navigation API, which means that text (messages, user IDs, etc.) can be in the local language rather than in English. For more information, please refer to navOpen.




The navigation interface has the following limitations:

The number of user statuses is limited to 16.

The number of quick messages is limited to 120.

The number of user-defined replies is limited to 200.

The number of destinations is limited to 20.
